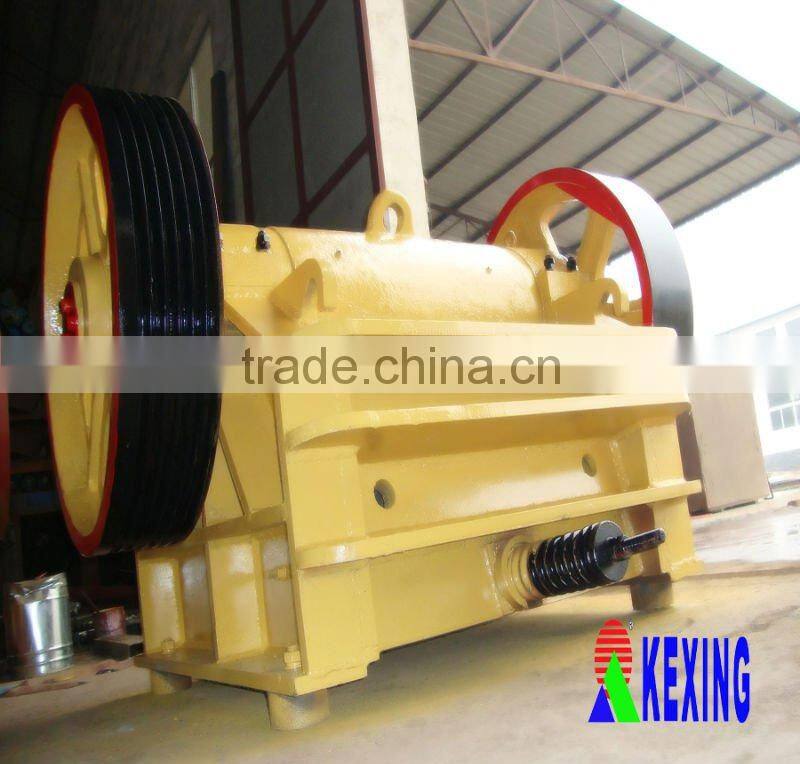

Jaw Crusher For Basalt CE Approved

Specifications

Jaw Crusher For Basalt
1.Broken deep cavity
2.Energy-saving
3.Simple strcture
4.Low noise and less dust.



Jaw Crusher For Basalt CE Approved

Jaw Crusher Application:

Jaw Crusher is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material to be crushed is 320MPa. The jaw crusher is widely used in mining, metall-urgical industry, building material, highway, railway, and chemical industry.



Jaw Crusher For Basalt CE Approved

Working Principle of Jaw Crusher:
The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.







Jaw Crusher For Basalt CE Approved

Technical Data of Jaw Crusher:



Model	Max. Feeding Size (mm)	Discharge Size (mm)	Capacity (t/h)	Motor Power (kw)	Overall Dimensions (mm)	Weight (t)
PE150×250	125	10-40	1-3	5.5	896×745×935	0.6
PE250×400	200	20-60	5-20	15	1150×1275×1240	2.8
PE400×600	350	40-100	15-60	30	1700×1732×1653	6.5
PE500×750	425	50-100	50-100	55	2035×1921×2000	10.3
PE600×900	480	65-160	60-130	75	2290×2206×2370	16.5
PE750×1060	630	80-140	80-180	110	2620×2302×3110	29
PE900×1200	750	95-165	140-260	110	3789×2826×3025	54.5
PE1000×1200	850	195-265	315-550	110	3335×3182×3025	57
PE1200×1500	1020	150-300	400-800	160-220	4200×3750×3820	100.9
PEX250×750	210	25-60	10-40	22	1667×1545×1020	5
PEX250×1000	210	25-60	15-50	30	1550×1964×1380	6.5
PEX250×1200	210	25-60	20-60	37	1560×2104×1415	7.7



Notice: Any change of Jaw Crusher For Basalt technical data will not be advised additionally.
