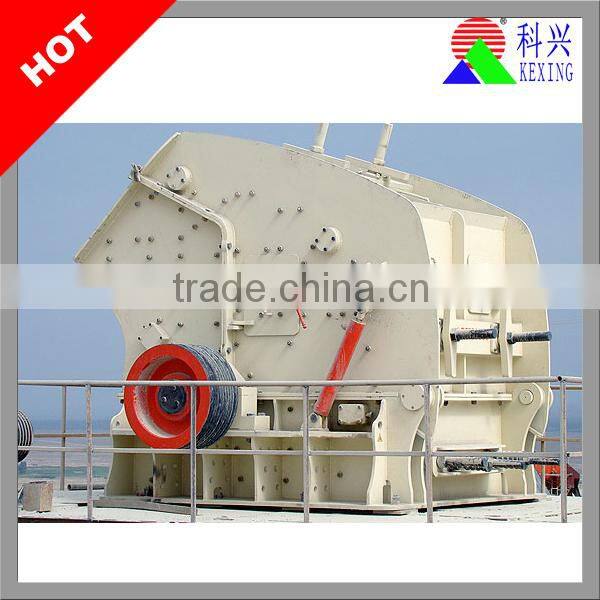

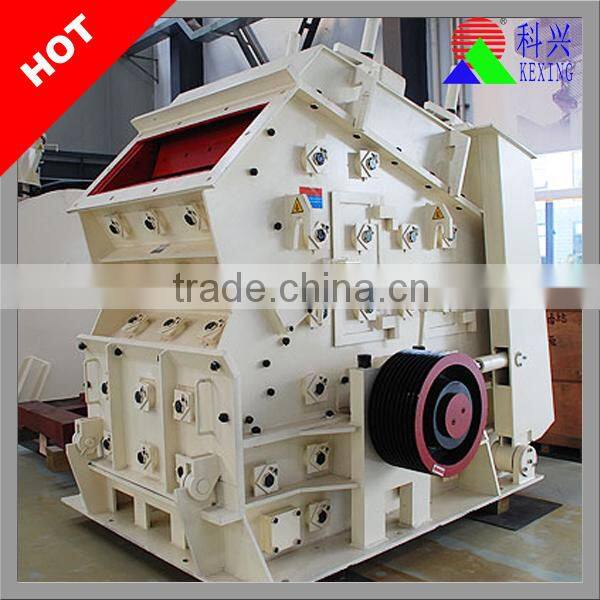

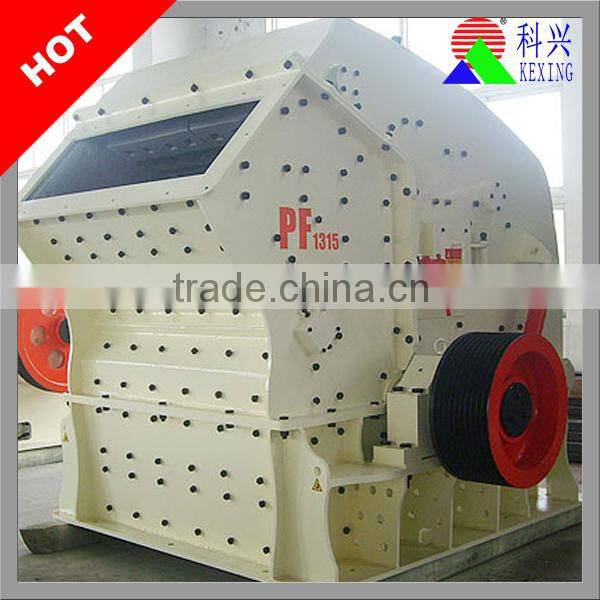

High efficient hazemag impact crusher stone crusher for hot sale
Introduction of hazemag impact crusher
Impact crusher is widely used in the industries of ore crushing, railway, highway, energy, cement, chemicals, construction and so on. The discharging size can be adjusted and the crushing specification is variety. Single-rotor impact crusher has the advantages of simple structure, low energy consumption, high output, smaller weight and the crushed products showing cubic shape.
Application of hazemag impact crusher
The machine can be used for middle and fine crushing all kinds of materials with medium hardness, such as limestone, clinker, slag, coke and coal in the lines of mineral processing, chemical, cement, construction, refractories, ceramics, glass and so on. Compared with hammer crusher, impact crusher has the bigger crushing ratio and uses fully the highspeed impact power of the whole rotors. But the hammers of impact crusher are easily abrased, so impact crusher is limited on the crushing hard materials, and it is always used for coarse, middle or fine crushing limestone, coal, stone, quartz, dolomite, iron pyrites, gypsum and chemical raw materials and the materials under hard-brittle. The ideal feed size of the series of impact crusher is 100-500 mm, and the maximum size
Working principle of hazemag impact crusher
Impact crusher is a kind of mechanical equipment to crush the materials by the attack. In the working process, the rotor rotates high-speedly by the drive of the motor. When the materials get into the area where the hammers effect, they are impacted with the hammer and crushed into pieces,then thrown to the impact device and rebounded to the area where the hammers effects for being recrushed. This process is repeated. The materials from large to small all to be crushed at the impact chamber repeatly until the materials are crushed into the required size, at last out of the discharging open. Adjusting the gap between the impact frame and the rotors can change the final size and the shape of the materials.
Specification of hazemag impact crusher
Model |
size(mm) |
Feed size (mm) |
Max.feed size(mm) |
Capacity(t/h) |
Motor power (kw) |
Weight (t) |
PF1010 |
Φ1000×1050 |
400×1080 |
300 |
50-90 |
55-75 |
14 |
PF1210 |
Φ1250×1050 |
400×1080 |
300 |
70-130 |
110-132 |
17 |
PF1214 |
Φ1250×1400 |
400×1430 |
300 |
90-180 |
132-160 |
22 |
PF1315 |
Φ1320×1500 |
860×1520 |
350 |
120-250 |
180-260 |
26 |
PF1320 |
Φ1320×2000 |
860×2030 |
500 |
160-350 |
300-375 |
30 |
Our foreign customers cooperation:
Why Choose Us?
1. The machine in Kexing is actually good quality with preferential price.
* Good quality certificated with CE and ISO9001 quality management system.
* Careful producing process and standard technical in our factory.
* High output and large efficiency for the processing of produce.
2. The professional and customer-oriented services.
* Factory is located in Zhengzhou and several working places in many countries.
* Our professional can help you address import issues, commodity visiting, certifcates and many details for the goods.
