2015 New type crusher for recycling glass widely used at home and abroad
Introduction of crusher for recycling glass
Glass bottle crusher is widely used in crushing and recycle glass bottle. The main working part of glass bottle crusher is rotors with hammer. The rotors consist of main shaft, disk, pin shaft and hammers. The motor drives the rotors to rotate quickly in the crushing cavity. Raw materials enter the crusher through the feed opening and are stricken, impacted, cut and ground by the high-speed hammer to small size.
Features of crusher for recycling glass
1. High production and high crushing ratio.
2. Low power consumption, homogeneous particle size.
3. Simple, compact and light mechanical structure.
4. Low investment cost, easy management.
Working principle of crusher for recycling glass
Glass bottle crusher consists mainly of frame, rotor, hammers and grizzly bars and other components. The frame includes upper part and lower parts, which are welded by steel plates after cutting, the remaining parts bolted into one. High manganese steel liners are studded with inside the frame, to facilitate replacement for a new liners after worn; on the main shaft are installed several groups of the spindle distribution of the hammers, which consists of rotor with the axle of hammers and rotary table.
The host drives the main shaft through the motor and V-belt driven spindle to rotate the rotor, generating the centrifugal force, then driving all hammers stretch around. The bulks of material feed into the crushing chamber, will be crushed by the hammers at a high-speed movement.
The broken material requested will be passed the grizzly bars at the lower part and discharged, the unbroken rest will be left in the chamber to be crushed repeatedly by the hammers and iron plates until it can reach the requested standard. To avoid clogging, the water content of the material to be crushed not more than 5%.
Specification of crusher for recycling glass
Model |
Feed Opening Size (mm) |
Max. Feeding Size (mm) |
Discharging Size (mm) |
Capacity (t/h) |
Motor Power (kw) |
Weight (t) |
Overall Dimension (L×W×H) (mm) |
PC400×300 |
145×450 |
100 |
0-30 |
3-5 |
5.5 |
0.45 |
844×942×878 |
PC600×400 |
295×450 |
100 |
0-35 |
10-12 |
18.5 |
1.03 |
1054×972×1117 |
PC600×600 |
295×570 |
100 |
0-35 |
12-18 |
45 |
2.14 |
1315×840×1501 |
PC800×600 |
350×570 |
120 |
0-45 |
20-25 |
55 |
2.45 |
1515×2586×1040 |
Note: This specification is just reference, any changes are subject to the products.

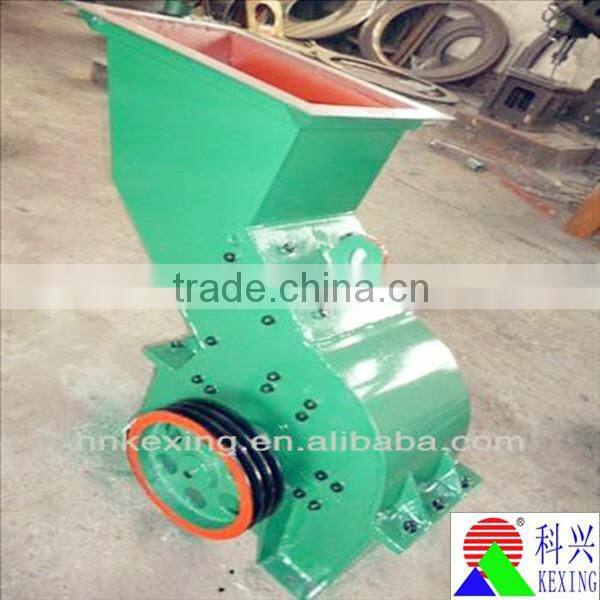

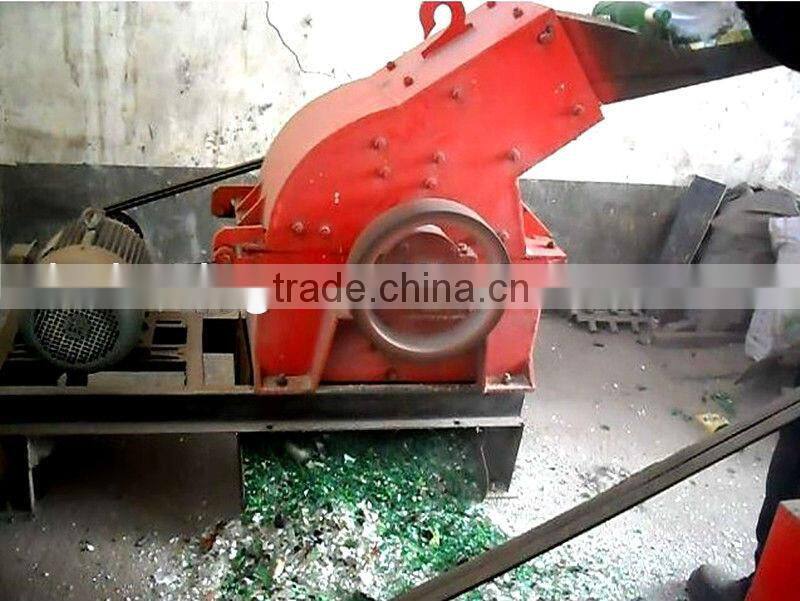

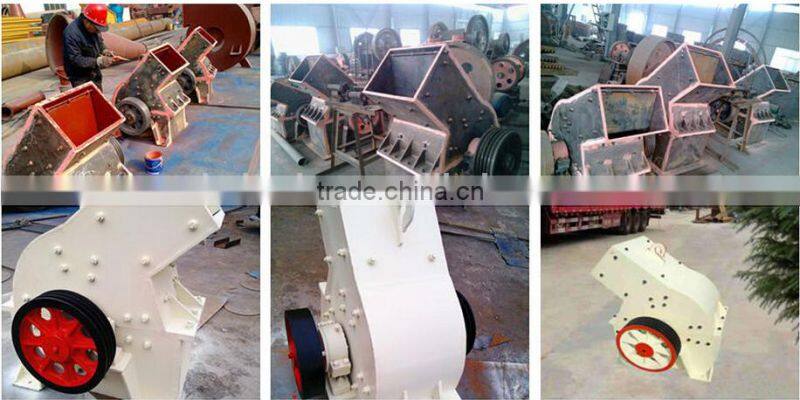

Pictures of crusher for recycling glass
Services:
Pre-sale:
(1) According to customer's special requirements, design and manufacture of products.
(2) the company free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and programs.
After-sale:
(1) free to assign a dedicated service personnel, arrived at the scene and guide customers installation.
(2) equipment installation.
(3) complete sets of equipment installed.
Foreign cooperation customers:
Why Choose Us?
1. The machine in Kexing is actually good quality with preferential price.
* Good quality certificated with CE and ISO9001 quality management system.
* Careful producing process and standard technical in our factory.
* High output and large efficiency for the processing of produce.
2. The professional and customer-oriented services.
* Factory is located in Zhengzhou and several working places in many countries.
* Our professional can help you address import issues, commodity visiting, certifcates and many details for the goods.
