Superior Quality Gold Mill Machine With Best After-sale Service
- 200 Set / Sets per Month
- China main port
- T/T L/C D/P D/A Credit Card
Product Details
Condition: | New | Type: | Other, Wet pan mill | Motor Type: | AC Motor |
Power(W): | 5500 | Capacity(t/h): | . | Place of Origin: | Henan, China |
Brand Name: | Kexing | Model Number: | 1000 | Dimension(L*W*H): | As the mode |
Weight: | 4.5t | Certification: | ISO9001-2008 | Warranty: | 12months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Superior Quality Gold Mill Machine With Best After-sale Service
Grindng mill machine brief introduction
The gold roll machine is also called wet grinding machine. It is praised by users because of it has the features of low investment, high production capacity, low consumption, good efficiency, easy installation and maintenance. It is the excellent equipment which can instead of ball mill. It is perfect equipment for medium-sized and small enterprises. The roll gold machine is mainly used for separate gold, silver, lead, zinc, iron, molybdenum, cooper, antinomy and so on.
The operation and maintenance
1) The raw material should be put into the machine after the machine running normally.
2) This machine is not allowed to state with the material in the machine. If the machine is stopped because of stoppage, the residual material in the machine should be cleared. Then start the machine again.
3) The material should be put into the machine uniformity, not sometimes much sometimes less. It's better to use a feeding equipment.
4) The bearing part should be add butter regularly.
5) Every bolts should be checked to avoid flexible.
6) The bearing should be changed in time if it is damaged to avoid damage other parts.
7) While the machine is running formally, you should check if there is abnormal sound in the reducer box and or bearing part, if there is a too high temperature, if there is too big motor current and so on. If it happened, you should stop the machine to remedy of the trouble.
8) The motor V-belt should be removed while examine and repair the machine for your safe.
Main Technical Parameters of the grinding mill machine
Model | Specification | Input size(mm) | Rotate Speed (r/min) | Powder(kw) | Weight(t) |
1600A | 1600×400×200×500±20mm | 30mm | 20-22 | 25KW | 14.5 |
1500A | 1500×350×200×460±20mm |
| 20-22 | 22KW | 13.5 |
1500B | 1500×350×150×460±20mm |
| 20-22 | 22KW | 12.3 |
1500C | 1500×300×150×420±20mm |
| 20-22 | 22KW | 11.3 |
1400A | 1400×250×150×350±20mm |
| 16-18 | 18.5kw | 8.5 |
1400B | 1400×250×150×350±20mm |
| 21-23 | 18.5kw | 8.5 |
1350A | 1350×250×150×350±20mm |
| 16-18 | 18.5kw | 8 |
1350B | 1350×250×150×350±20mm |
| 21-23 | 18.5kw | 8 |
1300A | 1300×250×150×350±20mm |
| 16-18 | 15kw | 7.5 |
1300B | 1300×250×150×350±20mm |
| 21-23 | 15kw | 7.5 |
1200A | 1200×200×80×250±20mm |
| 17-19 | 7.5kw | 5.5 |
1200B | 1200×200×80×250±20mm |
| 23-25 | 7.5kw | 5.5 |
1100A | 1100×200×80×250±20mm |
| 17-19 | 7.5kw | 5 |
1100B | 1100×200×80×250±20mm |
| 23-25 | 7.5kw | 5 |
1000 | 1000×200×80×250±20mm |
| 13-15 | 5.5kw | 4.5 |
Notice: This specification is just reference, any changes are subject to the product.
Our Services
Per-sale:
(1) According to customer's special requirements, design and manufacture of products.(2) the company free of charge to the user onsite engineering and technical personnel planning site for the user to design the best processes and programs
Sale:
(1) product acceptance.
(2) to help customers develop construction programs.
After-sale:
(1) free to assign a dedicated service personnel, arrived at the scene and guide customers installation.
(2) equipment installation.
(3)complete sets of equipment installed.

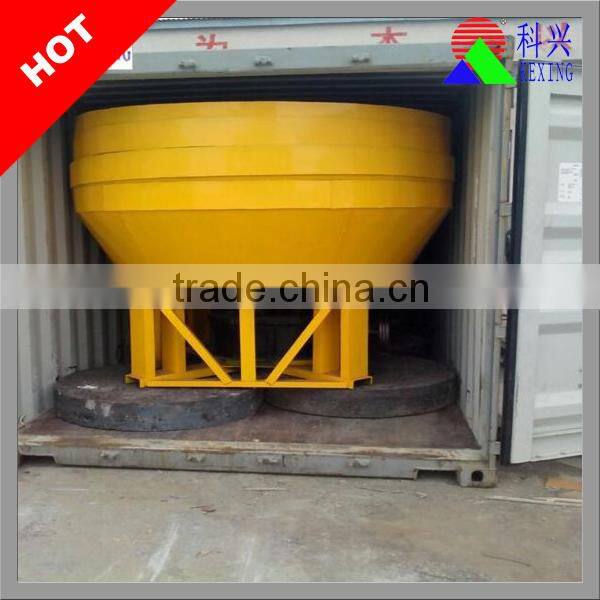

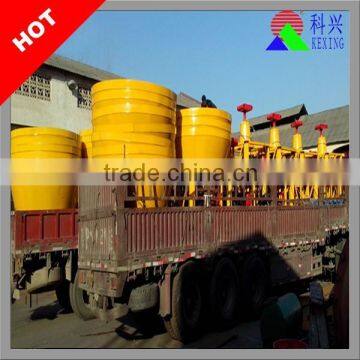

Pictures of our product
Our certificates
Cooperation with foreign custoemers
