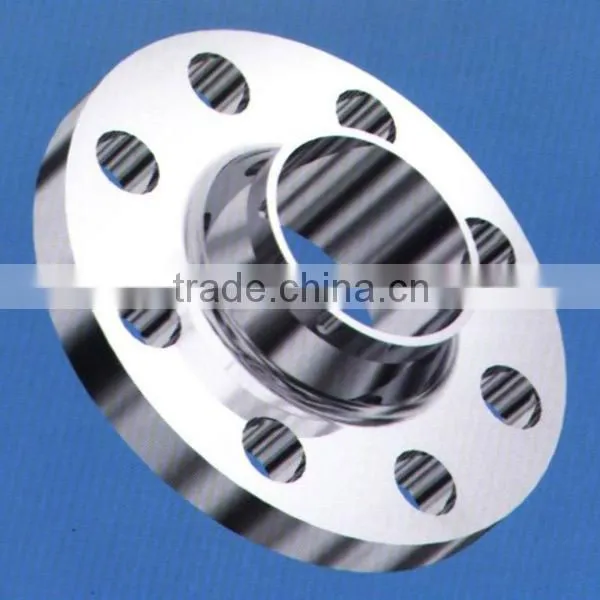

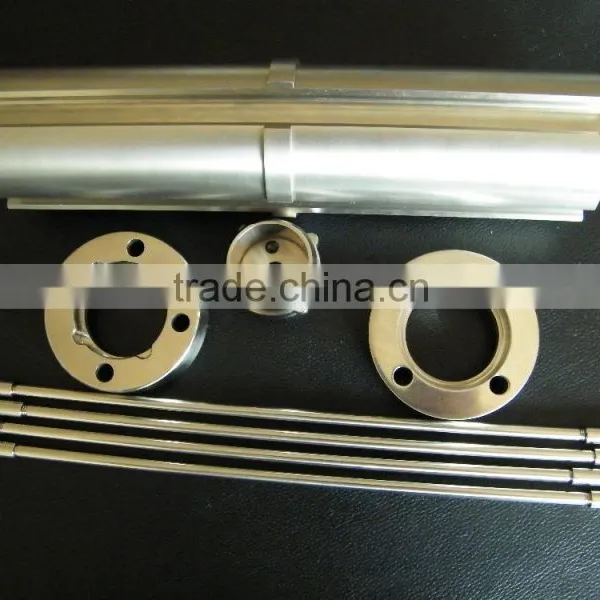

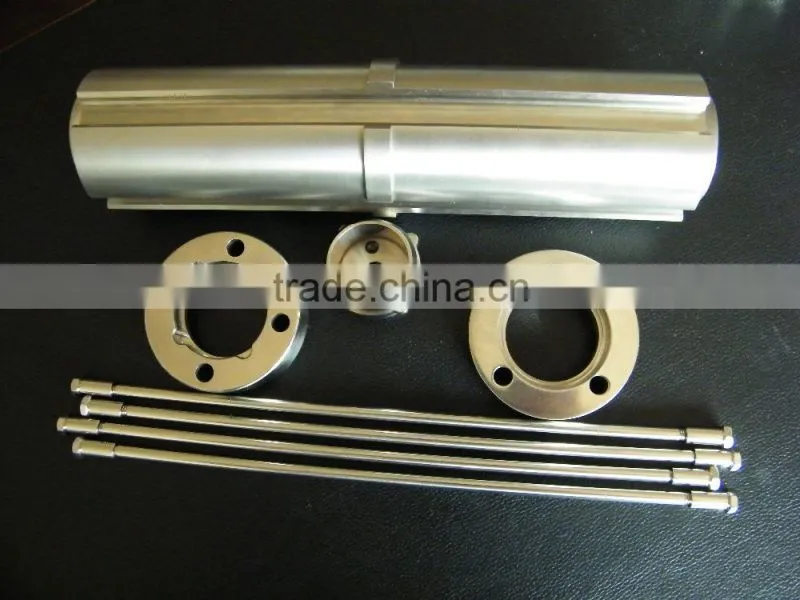

titanium machining flange and titanium disc
Item name |
titanium machining flange and titanium disc |
Standard |
ASTM 381 ,ASME/ANSI B16.5,DIN2630~2633,BS etc |
Material |
Gr5 |
Size |
1/2''~80''(DN10~600) |
Thickness |
SCH20, SCH30, SCH40, STD, SCH80, SCH100, SCH120, SCH160, XXS |
Pressure rating |
0.6~32Mp |
(DIN) PN6,PN10,PN16,PN25 though PN250 | |
(ASNI) CL150,CL300,CL600,CL900,CL1500 | |
Working temperature |
-60°C~250°C |
Application |
1.Chemical industry 2. Petrochemical industry 3. Machining field,Automobile field,etc 4. Desalination of sea water 5. Textile printing and dyeing 6. Mobile phone component field
|
Titanium Flange (titanium flange) is the use of nonferrous metals of titanium or titanium
alloy tube and pipe parts connected to each other, is connected to the pipe end.
There are perforations on the titanium flange bolts so that the two flanges tightly connected. Sealed with a gasket between the flanges. Flanged fittings (flanged pipe fittings) refers to
the pipe with a flange (flange or access disk).
It can be cast from (Figure vacant), but also by screwing or welding composition. Flange
connection (flange, joint) by a pair of flanges, a gasket and a number of bolts and nuts.
Gasket is placed betweenthe two flange sealing surface, tighten the nut, than the pressure
reaches a certain value on the gasketsurface deformation after, and fill the seal surface
uneven, so that does not leak tight coupling.
Press the connecting member .
Titanium is a removable coupling flange connection. Press the coupled components can be
divided into containers titanium titanium flange and pipe flange.
Form of the structure_by structure type, there is a whole titanium flange, welded titanium
flange, flanges and threaded titanium Looper titanium flange.
Dimension
OD ( mm) |
I D ( mm) |
HEIGHT ( mm) |
200-400 |
100-300 |
35-120 |
400-700 |
150-500 |
40-160 |
700-900 |
300-700 |
50-480 |
900-1300 |
400-900 |
70-250 |
| Packaging Details: | Standard export wooden case lined with foam or at buyers option Get latest competitive price |
| Delivery Detail: | 5-15 days |
