Hot Sales Mini Motorized Goniometer Stages 04DJ15
Angle Range +/-15°
Specification
Model Number |
04DJ15 |
Angle Range |
+/-15° |
Dimension |
160x160mm |
Transmission Ratio |
400:1 |
Height of Rotation Center |
139mm+/-0.2mm |
Drive |
Worm Gear |
Guide |
Cross-roller Guide |
Stepper Motor(1.8°) |
SST57D2121 |
Material |
Aluminum |
Surface Treatment |
Black-Anodized |
Loading |
30kg |
Weight |
11kg |
Resolution |
0.007°(non-MS Driver) 1.3” (20-MS Driver) |
Accuracy of Rotation Center |
0.03mm |
Speed |
7°/sec |
Repeatability |
+/-3” |
Accuracy |
+/-8” |
Backlash |
+/-3” |
Features:
*Regular stage set with stepper motor and RS232 interface, can connect with motion controller convenient.
*Worm gear structure ensure the stage with high loading and accuracy
*The mounting holes both on the top and bottom of stage which can combine with other stage easily
*Both of the two ends have limit switches and can change the motor into servo or redesign

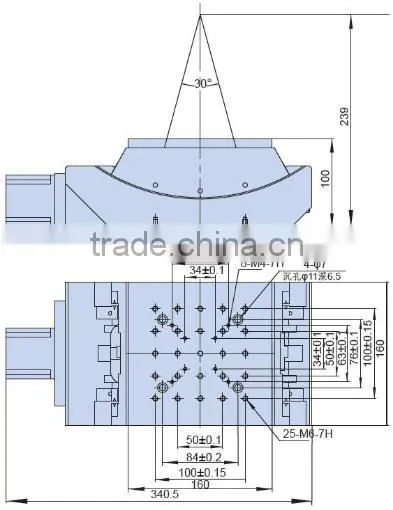

Product drawings
