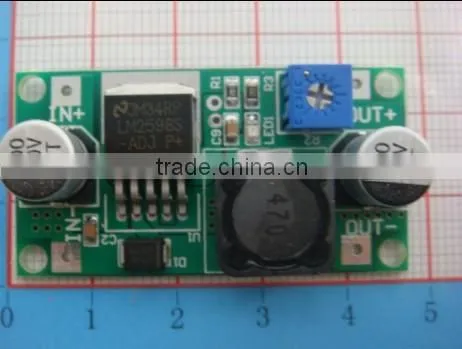

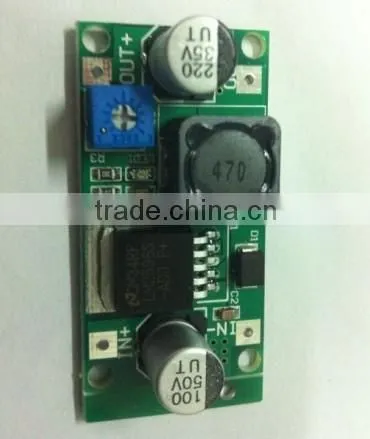

LM2596 LM2596S module with LED

Specifications

Increase the input and output X7R high Q high-frequency bypass capacitors, emc super performance. much better than LM2576



specification



Model	LM2596S DC - DC step-down module
Input Voltage	3.2V-40V
Output Voltage	1.25V-35V
current output	MAX 3A
transfer efficiency	92% HIGHEST
output ripple	<30mV
switching frequency	65KHz
operating temperature	-45 +80

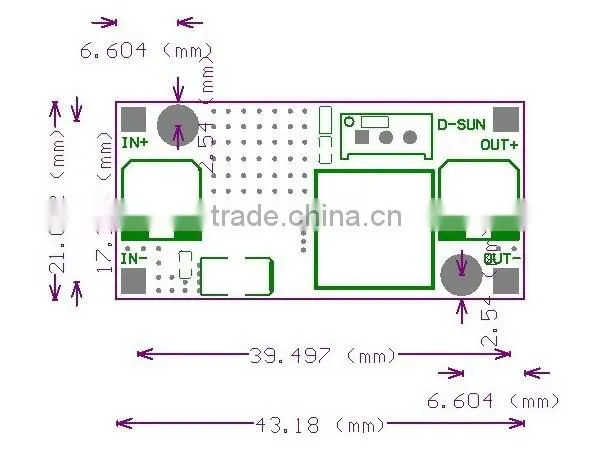

Size	43mm*21mm*14mm
IN+	Input anode
IN-	Input cathode
OUT+	Output anode

  OUT-                                                         OUTput  cathode













Range of input voltage: 3.2 V dc to 40 V (input voltage must be higher than to the output voltage of 1.5 V above. Can't booster)


Range of output voltage: 1.25 V dc to 35 V voltage adjustable, high efficiency (92%), maximum output current is 3 a.


The measured 12 v input, 5 v 1 a output current load regulation of less than 1%
