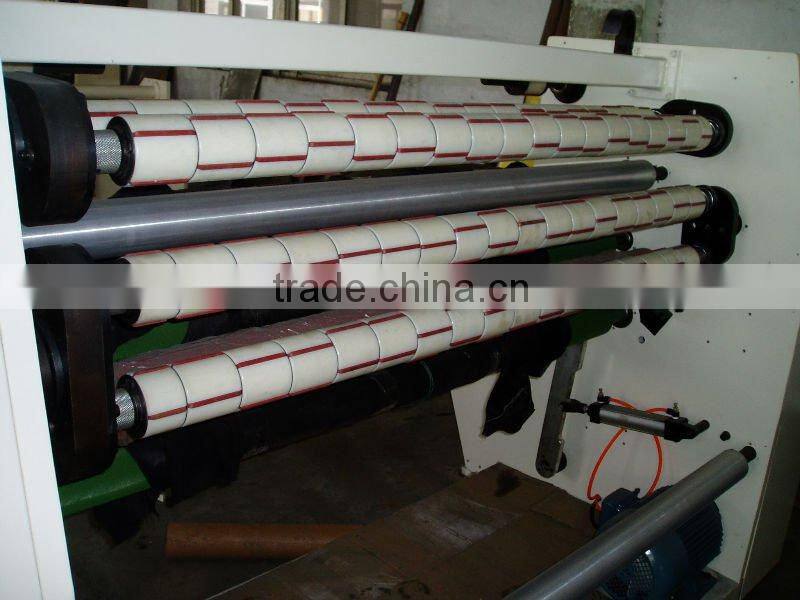

Help CenterYU-202 Opp Tape Cutting Machine
Related Products
-
YU-701 Automatic Single Shaft Cutting MachineUS$ 19,000 - 22,000MOQ: 1 Set -
YU-701 Single Shaft Tape Cutter MachineUS$ 19,000 - 22,000MOQ: 1 Set
-
YU-703 Double Shafts Opp Cutting MachineUS$ 21,000 - 23,000MOQ: 1 Set
-
YU-202 Opp Adhesive Tape Slitting Rewinder MachineUS$ 8,000 - 9,200MOQ: 1 Set
-
Automatic Multifunction Coating MachineUS$ 70,000 - 300,000MOQ: 1 Set
Specifications
1.active mode smoothing equipment2.Double-position air-operated unwinding and rewinding
3.automatic
4.high drying efficiency
Specifications
1.active mode smoothing equipment 2.Double-position air-operated unwinding and rewinding 3.automatic 4.high drying efficiency
Application field:
Suitable for BOPP/OPP adhesive/ Glass paper tape/cellophane paper
Features:
1. Crowned stretch roll: adopt “pulling flat board” device to eliminate the corrugated phenomenon in the course of sending materials of adhesive tapes.

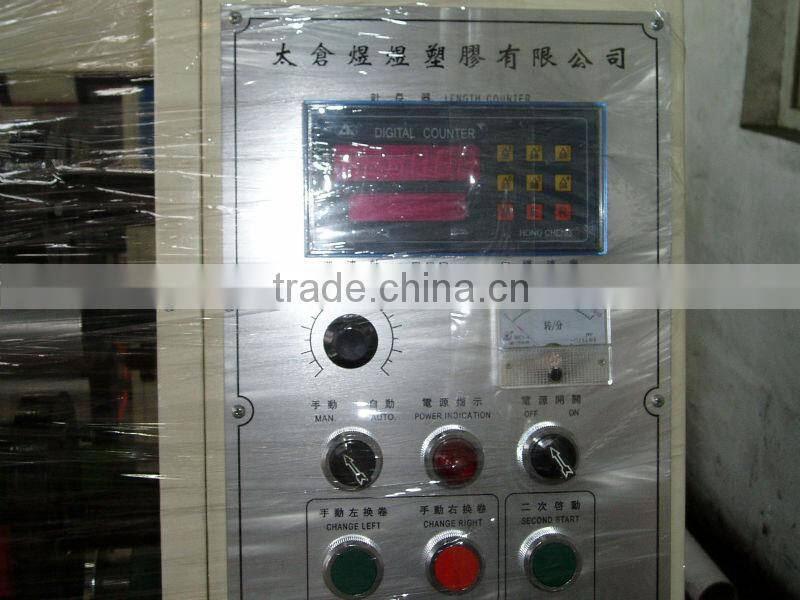

2. centralized control panel for easy operation. Control operation speed by variable frequency and variable speed.
3. three-step length setting provides extremely smooth rewinding operations to give accurate rewinding length.
4. Automatic four-shaft exchange is adopted. Once rewinding operation is completed, the machine will automatically perform shaft changes.
5. Pneumatic braking is to control the unwind tension. The rewind tension is controlled by the clutch and independent slide setting for free adjustment of the tensile force.
6. Pneumatic brake: bring the machine to an immediate halt and accurate positioning.
(1) Equipped with connected unwind base, which is convenience on operation and space saving.
(2) Equipped with surface type lay on roller on unwind base to make web wound out more smoothly.
(3) Slitting by razor blade, which was designed to slit various film tapes.
(4) Driven by one A.C motor with 3 stages type length counter to make machine stops accurately.
(5) Rewind tension is controlled by clutch, it works with differential shafts to make tension on each roll the same even when the web thickness is not the same at all.
(6) Finished rolls unload and paper cores reload working by core loader, it increases full production capacity.
Automatic Grade: Automatic
Driven type: pneumaticTechnical parameters:
valid width |
1000mm/1300mm/1600mm |
|
Max. unwinding diameter |
800mm |
|
slitting width |
12-1280mm |
|
rewind paper core |
Φ77mm(3”) |
|
rewinding O.D |
four shafts rewind |
76.2-150mm |
two shafts rewind |
76.2-300mm |
|
blade |
0.2*22*60mm |
|
machine speed |
0-180M/Min |
|
main motor |
5HP |
|
Packing with fumigated wooden container
BOPP tape slitter rewinder machine include four machines: Slitting machine, core loader, mini doctor rewinder, core cutter
