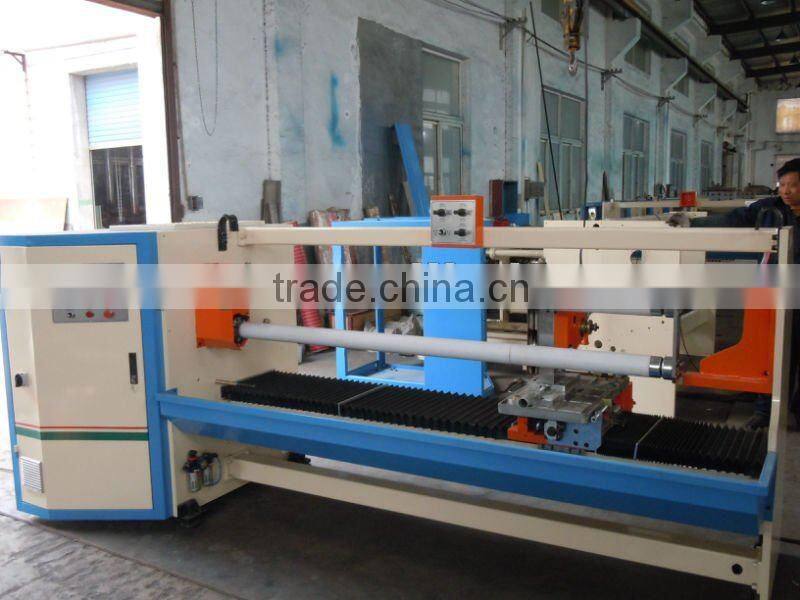

YU-703 Double Shafts Opp Cutting Machine

Name: YU-703 Double Shafts Opp Cutting Machine
Brand: YUYU
SKU: 115035871
Availability: InStock

US$ 21,000 - 23,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Other, Machinery & Hardware

Packaging Type:

Case

Taicang Yuyu Plastic Products Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, Machinery & Hardware

Packaging Type Case

Packaging Material Wood

Automatic Grade Automatic

Driven Type Hydraulic

Voltage 220v/380v/440v

Power 5hp

Place of Origin Jiangsu, China

Brand Name YUYU

Model Number YU-703

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.fast and stable
2.central control unit
3.anto adjusting the circular blade angle
4.operated on the LCD panel

1.Easy and simple to handle 2.Suitable for cutting Kraft tape/cloth tape/3M tape 3.Max cut diameter:400mm

1. Application field:

This unit is suitable for cutting various materials such as PVC/OPP/PE/Masking tape/Double-side tape/Kraft tape/cloth tape…etc.

2. Features:

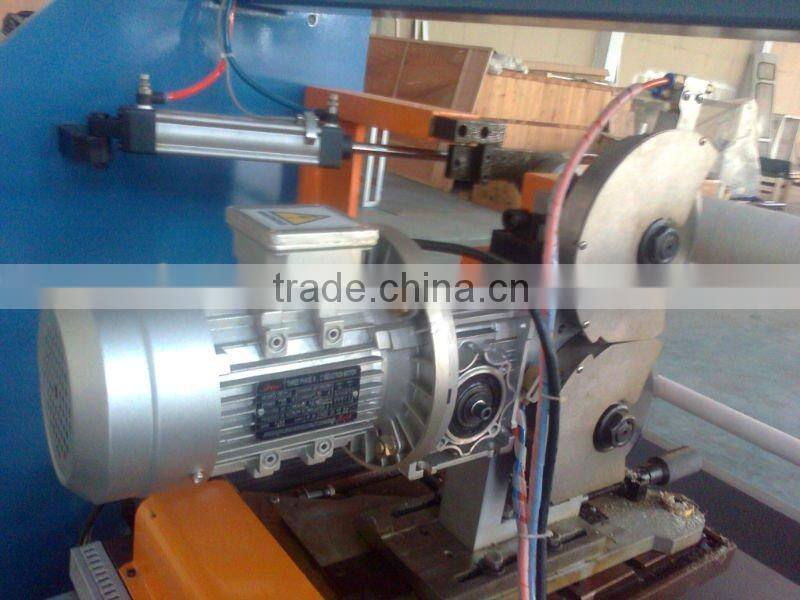

Main driving parts: AC motor with inverter is employed and the acceleration and deceleration are fast and stable.
Central control unit: programmable central control is used and various sizes can be set on the same shaft by automatic transfer and cutting.
Operating panel: all functions are operated on the LCD touch panel.

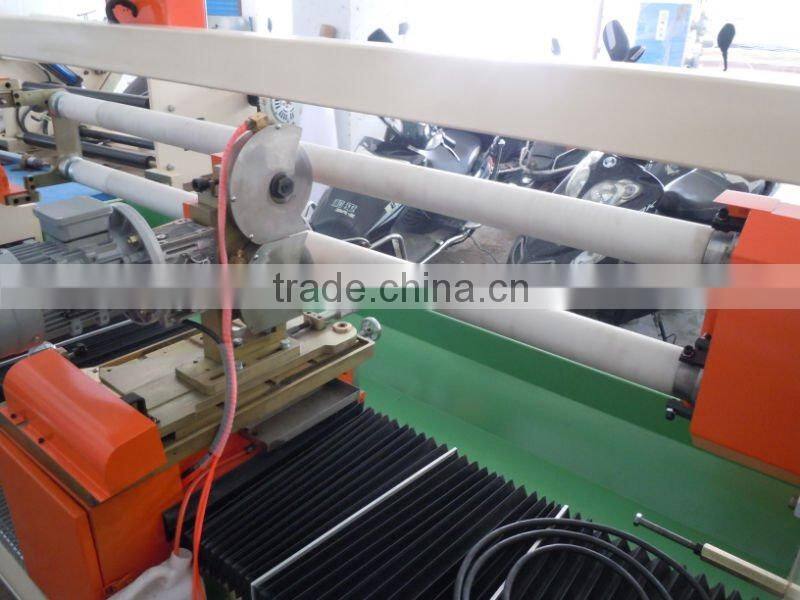

Cutting roll positioning system: cutting roll positioning is controlled by servo motor. The imported high precision ball screw is applied to set the size and the liner slide rail is to bear the load of the utter seat.
Auto adjusting the circular blade angle: the servo motor is used to calculate the circular blade angle and the angle is subject to different materials. The cutting angle is changed directly when the cutting surface is not smooth, so the efficiency is improved.

3. Technical parameters:

valid width	1.3m or 1.6m
Max. cut diameter	150mm
min. slitting width	3mm
inside diameter of paper core	32-76.2mm
blade drive motor	3hp
material roll drive motor	5hp
blade diameter	350mm
weight	1450kg
machine dimension(LWH)	379015501750
Max. Cutting speed	35cuts/min
