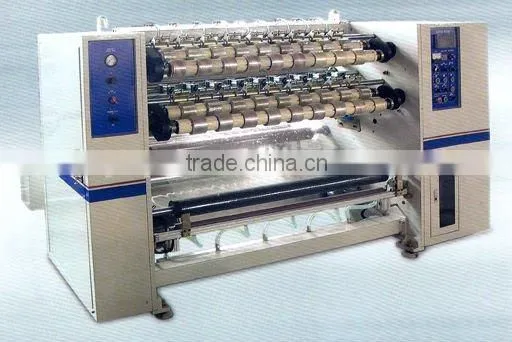

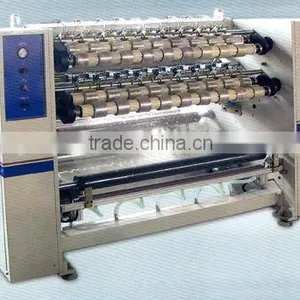

Help CenterPartition Hood Stationery Tape Slitting Rewinding Machine/auto Labeling Cutting Rewinding Machine
Related Products
-
Kraft Tape Cutting Machine/single Shaft Tape Cutting MachineNegotiableMOQ: 1 Set -
Masking Tape Single Shaft Cuttng Machine/double-side Tape Cutting MachineNegotiableMOQ: 1 Set
-
1600mm Double Shafts PVC Tape Cutting Machine/PE Cutting MachineNegotiableMOQ: 1 Set
-
Masking Tape Log Roll Rewinding Machine/double Side Tape Rewinding MachineNegotiableMOQ: 1 Set
-
Box-sealing Tape Jumbo Roll Slitting Rewinding MachineUS$ 8,500 - 9,000MOQ: 1 Set
Specifications
Suitable for OPP/Cellophane adhesive tapeI.D. of paper core:76.2mm
Max.diameter of unwinding:600mm
1. Application:
4 shafts full automatic exchange, suitable for slitting/rewinding OPP packaging & stationery tapes.
2. Feature:
1.Equipped with connected unwind base, which is convenience on operationand space saving.
2. Equipped with surface type lay on roller on unwind base to make web wound out more smoothly.
3.Slitting by razor blade, which was designed to slit various film tapes.
4.Driven by one A.C motor with 3 stages type length counter to make machine stops accurately.
5.Rewind tension is controlled by clutch, it works with differential shafts to make tension on each roll the same even when the web thickness is not the same at all.
6.Finished rolls unload and paper cores reload working by core loader, it increases full production capacity.
7.Tabbing Device: Automatic tabbing on the web during the production.
valid width |
1000mm/1300mm/1600mm |
|
Max. unwinding diameter |
800mm |
|
slitting width |
12-1280mm |
|
rewind paper core |
Φ77mm(3”) |
|
rewinding O.D |
four shafts rewind |
76.2-150mm |
two shafts rewind |
76.2-300mm |
|
blade |
0.2*22*60mm |
|
machine speed |
0-180M/Min |
|
main motor |
5HP |
|
Packing with fumigated wooden container
