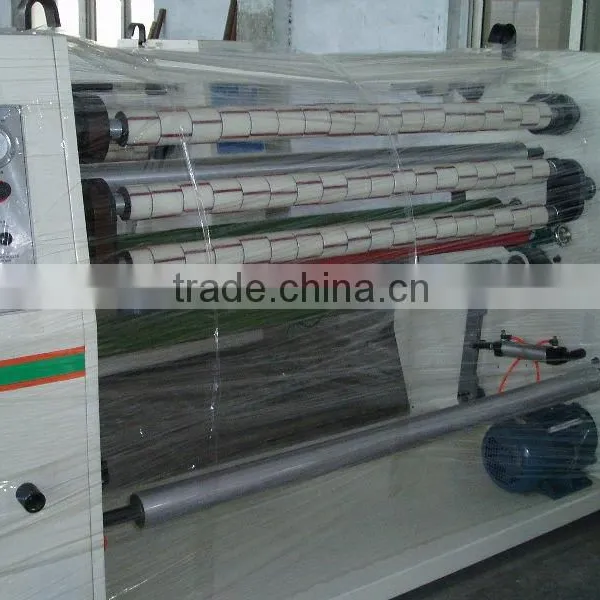

Box-sealing tape jumbo roll slitting rewinding machine

Specifications

Mini slitting width: 12mm
rewinding shaft: 4 shafts rewind
working width:1300mm,1600mm

 1.Features :



1. Automatic four-shaft exchange is adopted. Once rewinding operation is completed, the machine will automatically perform shaft changes.

2. The unwinding tension is adopted with pneumatic braking control. The rewinding tension is adopted with the dual control equipped with the clutch and the independent slide setting for free adjustment of the tensile force.



3. Pneumatic braking is to control the unwind tension. The rewind tension is controlled by the clutch and independent slide setting for free adjustment of the tensile force.



4. Pneumatic brake: bring the machine to an immediate halt and accurate positioning.

2.Technical parameters:

valid width		1000mm/1300mm/1600mm
Max. unwinding diameter		800mm
slitting width		12-1280mm
rewind paper core		Φ77mm(3”)
rewinding O.D	four shafts rewind	76.2-150mm
	two shafts rewind	76.2-300mm
blade		0.2*22*60mm
machine speed		0-180M/Min
main motor		5HP
