22 inch SH2203HD linux System Network HD wall mounted advertising display player video is one of our popular indoor-used LCD products, which can be used to
play advertising videos,musics or digital posters in all sorts of indoor
public places.
This is embedded LINUX system. If you need other Operate
System, please click below address:
Android Operate System:
https://img13.fr-trading.com/product/60189762443-220805399/22_inch_SH2203AD_Network_Android_System_HD_wall_mounted_advertising_display_player_android_tablet.html
WINDOWS Operate System:
https://img13.fr-trading.com/product/60181725420-220805399/22_inch_SH2203AIO_All_in_One_Network_wall_mounted_wifi_3G_WLAN_advertising_display_tablet_pc.html

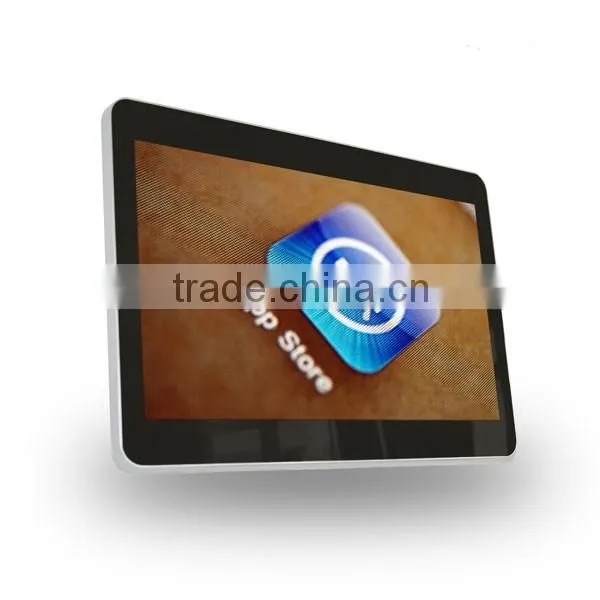

Product photos
Product features
Product Specification
| Model | SH2203HD | 22 inch HD wall mounted advertising display ( 03 models ) |
|
Display Specifications |
Display Parameters | 22 inch WLED backlight |
| Resolution | 1680*1050 | |
| Display size | 469*295mm | |
| Display ratio | 16:10 | |
| Brightness | 300cd/m2 | |
| Contrast | 1000:1 | |
| Angle | 89° | |
| Color | 16.7M | |
| Response time | 3.7ms | |
| Life | 50000h | |
|
Function Specifications |
System | Embedded LINUX system |
| Sound | 8Ω5W Box Speaker | |
| Support | Video : Full Format ( Video 1080P, full- HD display ) | |
| Audio: full-format , mp3, WMA (32kbps ~ 384kbps) | ||
| Image and text : JPG, GIF, BMP, PNG, TXT | ||
| Storage | Support CF, SD, MMC, MS, up to 32GB | |
| Input port | VGA/HDMI/AV/USB | |
| Basic function |
Supports horizontal and vertical screen playback, support for 180 -degree rotation function |
|
|
Start to play automatically , breakpoint memory , ad insertion function |
||
| Support for log management , schedule management , time management | ||
| Support time-volume , long subtitles, and with calendar | ||
| Support for USB playback , USB update , USB upgrade function | ||
| Support multi-language OSD | ||
| Extended function | Supports playlists setting | |
| Support for multiple split-screen mode selection | ||
|
Machine Specifications |
Operating temperature |
0℃ to 50℃ |
|
Operating humidity |
10 to 80% | |
| Power | DC12V | |
| Single size | 530*355*48mm | |
| N.W | 5KGS | |
| Package Size | 670*140*450mm | |
| G.W | 6.5KGS | |
| Accessories |
AC power cable , HDMI cable, remote control , keys , user manual , certificate, warranty; |
Product details
Accessories

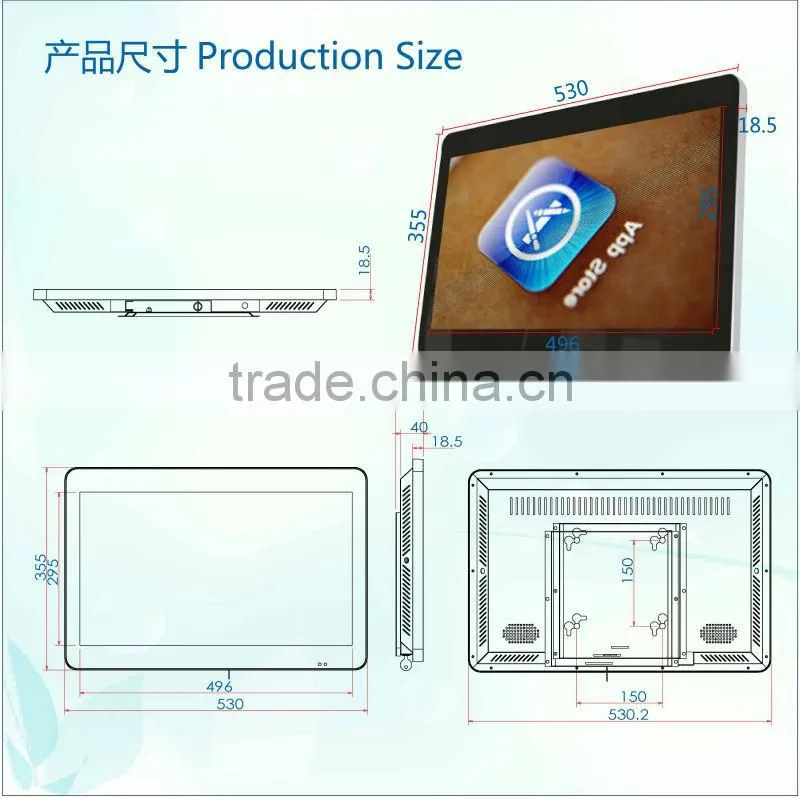

Production Size
About this style, we also have size 19/21/22/26/32/42/46/55 inch,below is the Specification
|
Display Specifications |
Display Parameters |
19 inch WLED backlight |
21.5 inch WLED backlight |
22 inch WLED backlight |
26 inch WLED backlight |
| Resolution | 1920*1080 | 1920*1080 | 1680*1050 | 1366*768 | |
| Display size | 376*301mm | 477*268mm | 469*295mm | 576*323mm | |
| Display ratio | 16:09 | 16:09 | 16:10 | 16:09 | |
| Brightness | 300cd/m2 | 300cd/m2 | 300cd/m2 | 360cd/m2 | |
| Contrast | 1000:1 | 1000:1 | 1000:1 | 1000:1 | |
| Angle | 89° | 89° | 89° | 89° | |
| Color | 16.7M | 16.7M | 16.7M | 16.7M | |
| Response time | 3.8ms | 3.8ms | 3.7ms | 6ms | |
| Life | 50000h | 50000h | 50000h | 50000h | |
|
Machine Specifications |
Operating temperature |
0℃ to 50℃ | 0℃ to 50℃ | 0℃ to 50℃ | 0℃ to 50℃ |
| Operating humidity | 10 to 80% | 10 to 80% | 10 to 80% | 10 to 80% | |
| Power | DC12V | DC12V | DC12V | AC 110-240V | |
| Single size | 530*355*48mm | 530*355*48mm | 530*355*48mm | 649*397*46mm | |
| N.W | 5KGS | 5KGS | 5KGS | 12.5KGS | |
| Package Size | 670*140*450mm | 670*140*450mm | 670*140*450mm | 870*185*513mm | |
| G.W | 6.5KGS | 6.5KGS | 6.5KGS | 14.5KGS | |
| Accessories |
AC power cable , HDMI cable, remote control , keys , user manual , certificate, warranty; |
||||
|
Display Specifications |
Display Parameters |
32 inch WLED backlight |
42 inch WLED backlight |
46 inch WLED backlight |
55 inch WLED backlight |
| Resolution | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | |
| Display size | 700*395mm | 931*524mm | 1018*573MM | 1209*680mm | |
| Display ratio | 16:09 | 16:09 | 16:09 | 16:09 | |
| Brightness | 360cd/m2 | 420cd/m2 | 400cd/m2 | 400cd/m2 | |
| Contrast | 1400:1 | 1400:1 | 1400:1 | 1400:1 | |
| Angle | 89° | 89° | 89° | 89° | |
| Color | 16.7M | 16.7M | 16.7M | 16.7M | |
| Response time | 6ms | 8ms | 5.5ms | 6ms | |
| Life | 50000h | 50000h | 50000h | 50000h | |
|
Machine Specifications |
Operating temperature |
0℃ to 50℃ | 0℃ to 50℃ | 0℃ to 50℃ | 0℃ to 50℃ |
| Operating humidity | 10 to 80% | 10 to 80% | 10 to 80% | 10 to 80% | |
| Power | AC 110-240V | AC 110-240V | AC 110-240V | AC 110-240V | |
| Single size | 773*468*60mm | 1013.4*606*70mm | 1115.3*673.5*75mm | 1345.6*816.2*115.5mm | |
| N.W | 17.5KGS | 30KGS | 42KGS | 58KGS | |
| Package Size | 1005*200*592mm | 1050*210*770mm | 1250*820*210mm | 1600*380*1070mm | |
| G.W | 20KGS | 32.5KGS | 45KGS | 65KGS | |
| Accessories |
AC power cable , HDMI cable, remote control , keys , user manual , certificate, warranty; |
||||
Product Applications
Our Quality Assurance of Equipments
Our Certification:
Company Information:
Q: Which outlook color as your support?
A: For Black and silver is the regular color. Or let us know the Pantone number you want, we can supply the special OEM services for you. The MOQ for other color is 50pcs.
Q: What kind of inspection you can provide?
A: Shining has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
Q: What is your guarantee period?
A: Shining provides 1 (one) year quality guarantee for the products from your purchase date, except the human damage and force majeure factor. For a better maintenance, be sure that the players are using under normal circumstances (not more than 16 hours daily).
During the guarantee period, Shining will send the new replacement for free if it's because of hardware problem after we confirm, and cover the shipment fee for the replacement delivery, the buyer just need to cooperate to send the damage one back to our factory.
For the problem advertising machine, it shall be returned to factory for repairing. Shining will be responsible for expenses arising out of such reparation, including but not limited to the cost of new parts and shipment of products or parts from us to Buyer.
Beyond the guarantee period machine, Shining will provide maintenance service and technical support (Hardware and other possible charges, Shining will not bear the responsibility)
