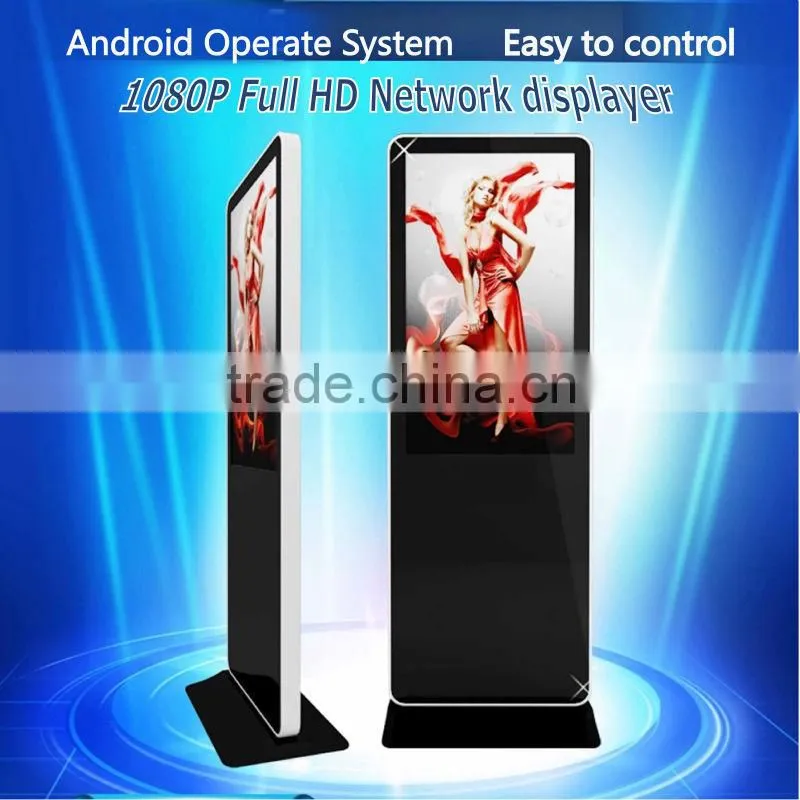

SH5580AD Android System 55 inch Network HD standing kiosk advertising display
is one of our popular indoor-used LCD products, which can be used to play advertising videos,musics or digital posters in all sorts of indoor public places. It is embedded with Android 4.1/4.2 system or above versions.
This is embedded Andorid system. If you need other Operate
System, please click below address:
LINUX Operate System:
https://img13.fr-trading.com/product/60167900351-220811298/SH5580HD_55_inch_HD_kiosk_advertising_display_oled.html
WINDOWS Operate System:
https://img13.fr-trading.com/product/60076539516-209973764/SH5580AIO_55_inch_new_advertising_equipment_advertising_player_advertising_display.html

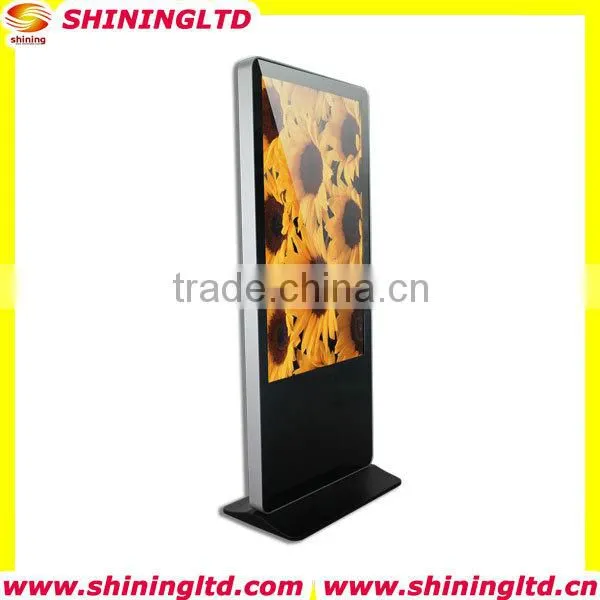

Product photos
Product features
Product Specification
| Model | SH5580AD | 55 inch Network HD kiosk advertising display |
|
Display Specifications |
Display Parameters |
55 inch WLED backlight |
| Resolution | 1920*1080 | |
| Display size | 1209*680mm | |
| Display ratio | 16:09 | |
| Brightness | 400cd/m2 | |
| Contrast | 1400:1 | |
| Angle | 89° | |
| Color | 16.7M | |
| Response time | 6ms | |
| Life | 60000h | |
|
Function Specifications |
System | Android 4.1/4.2 and above |
| Sound | 8Ω5W Box Speaker;Integrated HI-FI 100dB Audio Codec | |
| Video |
HD H.264 2160p video decoding; Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg, etc; BD Directory, BD ISO and BD m2ts video decoding; 264 High Profile 1080p@30fps or 720p@60fps encoding; 3840x1080@30fps 3D decoding, BD/SBS/TAB/FP supported; Comply with RTSP, HTTP,HLS,RTMP,MMS streaming media protocols |
|
| Memory | 1G; NAND Flash controller with 64-bit ECC | |
| Port | Support CVBS/YPbPr/VGA and HDMI; | |
| Basic function |
By B / S architectures, whenever when or where you can control the terminal advertising player through 3G, WLAN, WIFI network |
|
| Supports all video, file, network streaming media format | ||
|
Support split screen, support combination and design program content; |
||
| Remotely control time, volume, monitoring groups, on-demand and spots | ||
| Support for USB playback , USB update , USB upgrade function | ||
|
Perfect match mainstream applications, Greatly facilitate the secondary development for client customized; |
||
|
Machine Specifications |
Operating temperature |
0℃ to 50℃ |
|
Operating humidity |
10 to 80% | |
| Power | AC110V~240V | |
| Single size | 1974*812.4*94.5mm | |
| N.W | 53KGS | |
| Package Size | 2000*920*170mm + 850*100*500mm (0.36cbm/71kgs) | |
| G.W | 62KGS | |
| Accessories |
AC power cable , HDMI cable, remote control , keys , user manual , certificate, warranty; |
Product details
Remote control
Accessories

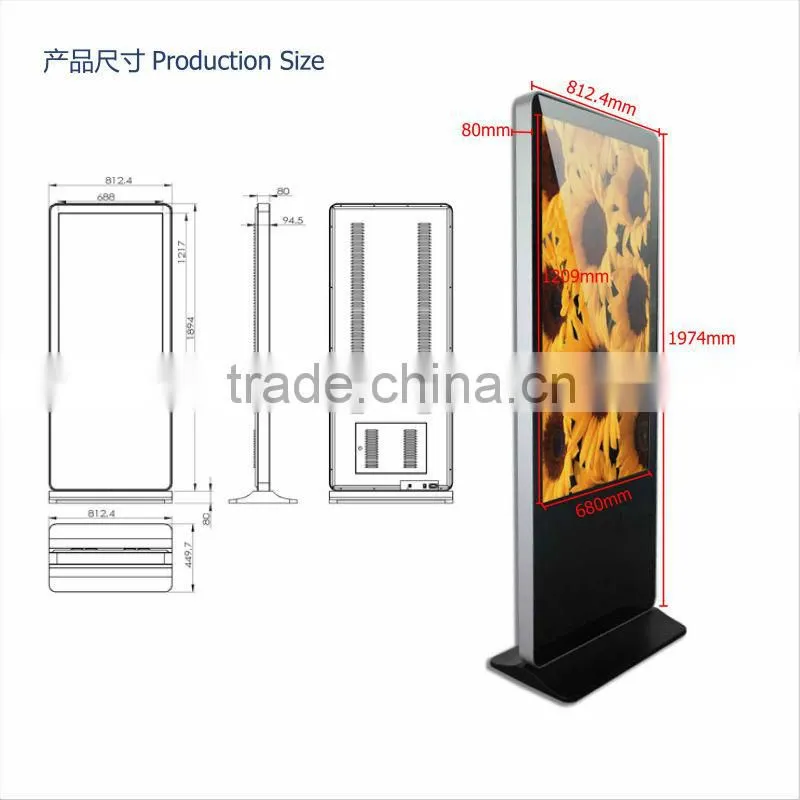

Production Size
Installation Instructions
About this style, we also have size 32/42/46 inch,below is the Specification
|
Display Specifications |
Display Parameters |
32 inch WLED backlight |
42 inch WLED backlight |
46 inch WLED backlight |
55 inch WLED backlight |
| Resolution | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | |
| Display size | 698.4*392.85mm | 930*523mm | 1018*572mm | 1209*680mm | |
| Display ratio | 16:09 | 16:09 | 16:09 | 16:09 | |
| Brightness | 350cd/m2 | 400cd/m2 | 400cd/m2 | 400cd/m2 | |
| Contrast | 1400:1 | 1600:1 | 4000:1 | 1400:1 | |
| Angle | 89° | 89° | 89° | 89° | |
| Color | 16.7M | 16.7M | 16.7M | 16.7M | |
| Response time | 6ms | 6ms | 8ms | 6ms | |
| Life | 60000h | 60000h | 60000h | 60000h | |
|
Machine Specifications |
Operating temperature |
0℃ to 50℃ | 0℃ to 50℃ | 0℃ to 50℃ | 0℃ to 50℃ |
| Operating humidity | 10 to 80% | 10 to 80% | 10 to 80% | 10 to 80% | |
| Power | AC110V~240V | AC110V~240V | AC110V~240V | AC110V~240V | |
| Single size | 1874*532*80mm | 1854*80*644mm | 1875*715*80mm | 1974*812.4*94.5mm | |
| N.W | 38KGS | 44KGS | 48KGS | 53KGS | |
| Package Size |
1950*630*170mm + 500*580*100mm (0.2378CBM 48kgs) |
1900*750*170mm + 680*480*80mm (0.268CBM 53kgs) |
1970*775*200mm+ 700*520*70mm (0.305CBM 62kgs) |
2000*920*170mm + 850*100*500mm (0.36cbm/71kgs) |
|
| G.W | 45KGS | 51KGS | 59KGS | 62KGS | |
| Accessories |
AC power cable , HDMI cable, remote control , keys , user manual , certificate, warranty; |
||||
Our Quality Assurance of Equipments
Company Information:
Q: Which outlook color as your support?
A: For Black and silver is the regular color. Or let us know the Pantone number you want, we can supply the special OEM services for you. The MOQ for other color is 50pcs.
Q: What kind of inspection you can provide?
A: Shining has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
Q: What is your guarantee period?
A: Shining provides 1 (one) year quality guarantee for the products from your purchase date, except the human damage and force majeure factor. For a better maintenance, be sure that the players are using under normal circumstances (not more than 16 hours daily).
During the guarantee period, Shining will send the new replacement for free if it's because of hardware problem after we confirm, and cover the shipment fee for the replacement delivery, the buyer just need to cooperate to send the damage one back to our factory.
For the problem advertising machine, it shall be returned to factory for repairing. Shining will be responsible for expenses arising out of such reparation, including but not limited to the cost of new parts and shipment of products or parts from us to Buyer.
Beyond the guarantee period machine, Shining will provide maintenance service and technical support (Hardware and other possible charges, Shining will not bear the responsibility)
