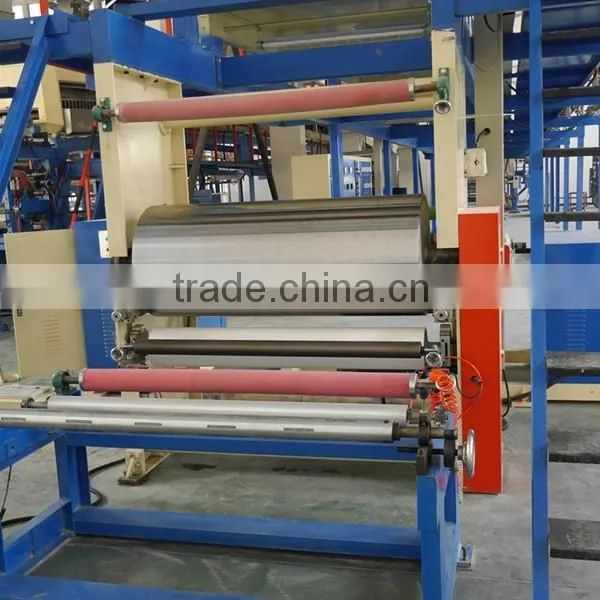

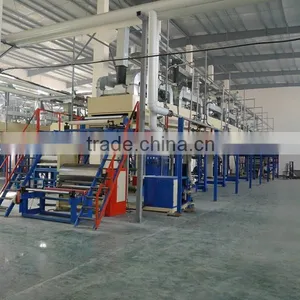

cold laminating machine
- 10 Set / Sets per Month
- Shanghai
- T/T
- CE certificated hydraulic press/Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
- 20 years manufacturer, automatic hay and straw baling machine
- more than 20 years factroy supply CE certificated used clothes and textile baling machine
- more than 20 years factory supply Hard plastic/ Fiber/Cotton/Woolen/Clothes/Textile Baler machine press
- more than 20 years factory supply plastic baler machine
- more than 20 years factory supply Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
Product Details
Condition: | New | Application: | Other, Machinery & Hardware | Packaging Type: | Case |
Packaging Material: | Wood | Automatic Grade: | Automatic | Driven Type: | Mechanical |
Voltage: | 380V/440V | Power: | 80HP | Place of Origin: | Jiangsu, China |
Brand Name: | YUYU | Model Number: | C2 | Weight: | 15T |
Dimension(L*W*H): | 30m*3m*5m | Certification: | CE/ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Main raw materials
Base material: BOPP, thickness (23-25 um)
Glue, water glue, solid content < 54%

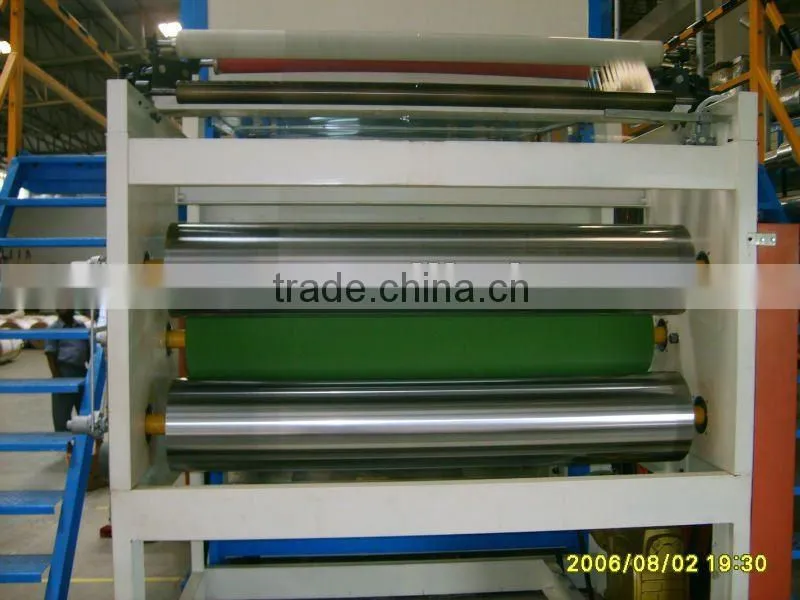

Coating mode
Double rod coating
Coating process flow
Unwinding-Traction preheating-Coating—Traction—Oven Dry—Cooling—Rewinding
Performance and Technical parameters
Coating width | 1000mm/1300mm | |||
Roller width | 1400mm | |||
Max. Mechanical speed | 300m/min | |||
Max. Producing speed | 250 m/min | |||
Max. unwind diameter | 800mm | |||
Max. rewind diameter | 800mm ( final product 4000m length) | |||
Winder core | 3” (Φ76.4mm) | |||
Cementing Amount | 0.01-0.025 mm | |||
Heating mode | Hot Blast ( provider by customer) | |||
Temperature control | Ambient temperature to 120°C±2°C | |||
Rolling edge evenness | Tolerance ±2mm | |||
Coating Evenness | 0.0012mm | |||
Mechanical electrical total power | 105KW |
Apply glue
