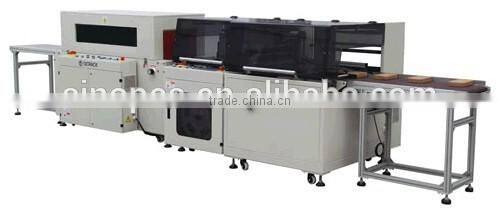

Help CenterBTH-450+BM-500L SIDE SEALING & HIGH SPEED OF AUTOMATIC SHRINK PACKAGING MACHINE
Related Products
-
BTA-450+BM-500 Automatic L Type Shrink Packaging Machine Quality ChoiceUS$ 1 - 3,456MOQ: 1 Set -
BTB-300B Cellophane Wrapping MachineUS$ 1 - 8,500MOQ: 1 Set
-
BTB-I Semi - Automatic Cellophane Wrapping MachieUS$ 1 - 5,000MOQ: 1 Set
-
BTB-400 Cellophane Wrapping MachineUS$ 1 - 12,588MOQ: 1 Set
-
Cellophane Wrapping MachineUS$ 1 - 8,899MOQ: 1 Set
Uses:
Suitable for large quantity shrink wrapping industries such as software, foodstuff, cosmetics, printing, pharmacy, flooring, ceramics, beverge and beer etc.
Performance Characteristics:
1.The machine adopts imported touching screen,on which all settings and operation can be done. Meanwhile,various product data can be stored in advance,and operator only to select parameters from the computer while usage.
2.According to different collocations for the machine and different products, the max packing speed is up to 80pcs/min.
3.Constant temperature heat sealing and cutting system is suitable for PE. POF etc, industrial standard shrink films, the seal is firm and nice, especially applicable for POF film, adjust the conveyor with the head wheel for packing products of different size. The reliability is higher and easier to operate it.
4.The front feed in systems speed is adjustable, combines a worktable at the end of the tunnel, makes whole machine highly automatic, it runs automatically without an operator comes true.
5.BM-500L Hi-speed hot air circulating shrink tunnel adopts roller type conveyor, the rollers are covered by silicone gel pipe, they roll automatically, also the conveyor can use Teflon mesh belt or S.S. mesh belt instead of rollers. When shrink PE film, need not the rollers roll, easy to convert it by the handle at the end of the tunnel.
6.The temperature inside the tunnel is even, suitable for shrink PE.PVC.POF films.
7.The inner container forms hot air circulation inside tunnel,the volume of hot air can be controlled by the air doors according to the packing requirements for different products.
Main Technical Parameters:
| Model |
BTH-450 |
BM-500L |
| Max Packing Size |
(L)(W+H)=400mm (H)=130mm |
(L)1500×(W)450×(H)250mm |
| Max Sealing Size |
(W+H)=450mm |
(L)1500×(W)500×(H)300mm |
| Packing Speed |
30~80packs/min |
30~80/ packs/min |
| Electric Supply & Power |
380V/50Hz 3kw |
380V/50Hz 16kw |
| Max Current |
10 A |
32A |
| Air Pressure |
5.5kg/cm3 |
/ |
| Weight |
800kg |
650kg |
| Overall Dimensions |
(L)2050×(W)1500×(H)1300mm |
(L)1800×(W)1100×(H)1300mm |
Our Workshop
We will design the machine up to your special request and assure every machine you choose from us is the right and best one.
More questions, could you pls feel free to find us at any time!
