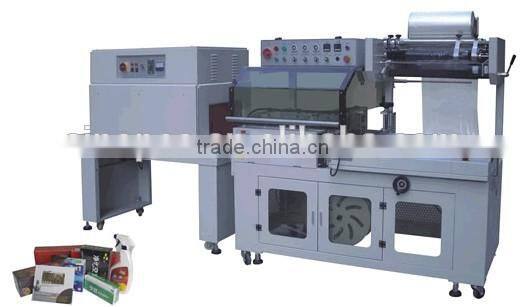

Help CenterBTA-450+BM-500 Automatic L Type Shrink Packaging Machine Quality Choice
Related Products
-
BTB-300B Cellophane Wrapping MachineUS$ 1 - 8,500MOQ: 1 Set -
BTB-I Semi - Automatic Cellophane Wrapping MachieUS$ 1 - 5,000MOQ: 1 Set
-
BTB-400 Cellophane Wrapping MachineUS$ 1 - 12,588MOQ: 1 Set
-
Cellophane Wrapping MachineUS$ 1 - 8,899MOQ: 1 Set
-
Automatic L Shrink Packaging Machine, Shrink Wrapping MachineUS$ 1 - 3,999MOQ: 1 Set
Uses:
Suitable for large quantity shrink wrapping industries such as software, foodstuff, cosmetics, printing, pharmacy, flooring, ceramics, beverge and beer etc.
Performance Characteristics:
BTA-450 It is a fully automatic L sealer,widely used in pipelining work for large quantity package with high work efficiency,installed with pin hole device,adjustable film feeding system and adjustable conveying table,meets different requirements for different products BTA-450A has a kissing device for packing the small products.
1.Adopts heat resistant alloy cutter plated Teflon,results in good sealing ,without melting the film and any smoke pollution.
2.Assembles one horizontal and one erect sensor for the entrance to the sealer it is easy to switch over ,even for some thin products,it is also easy to pack them.
3.The length of film feeding,controlled by magic eye and counter,also fixes an inductive motor for collecting wasted film automatically.
4.When pack different sizes of products ,it is simple to adjust,need not to exchange any molds or any bag making device.
5.To pack different size of products together for sales promotion effect.
6.Adopts OMRON digital temperature controller with PID function,sealing temperature is extremely sensititive and accurate,can set temperature optionally,the cutter itself has a protective function,avoid from damage the products.
7.The machine fixes an organic safty glass cover,with alarm function,so that the operator is safe.
8.The machine can be connected with the production line, which is no need additional operators.
Main Technical Parameters:
| Model |
BTA-450 |
BM-500 |
| Max Packing Size |
(L+H)=500mm (W+H)=430mm (H)=130mm |
(L)700×(W)450×(H)250mm |
| Max Sealing Size |
(L)550×(W)450mm |
(L)1200×(W)500×(H)300mm |
| Packing Speed |
15~30packs/min |
30~50packs/min |
| Electric Supply & Power |
220V/50Hz 1.3kw |
380V/50Hz 12kw |
| Air Pressure |
5.5kg/cm3 |
/ |
| Weight |
300kg |
220kg |
| Overall Dimensions |
(L)1850×(W)1000×(H)1600mm |
(L)1350×(W)750×(H)1500mm |
Our Workshop
We will design the machine up to your special request and assure every machine you choose from us is the right and best one.
More questions, could you pls feel free to find us at any time!
