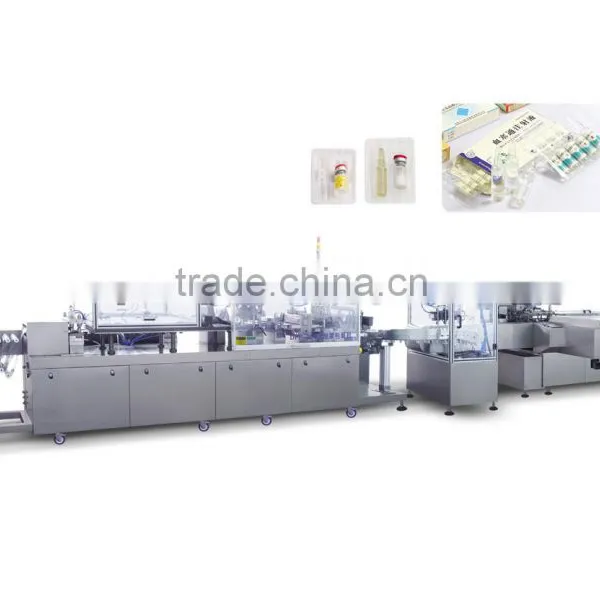

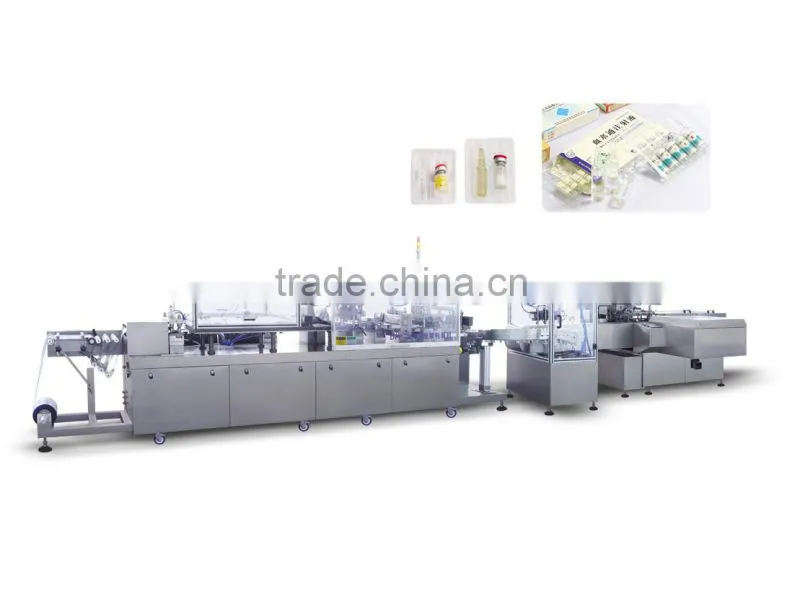

Automatic Ampoule Packaging Line, Pharmaceutical Packaging Line
Description:
This automatic ampoule packaging line is suitable to pack single ampoule or vial bottle.
It can automaticly finishing plastic molding, bottle feeding, schering bottle feeding, heat sealing, cutting, carton packing.
Controled by PLC.
Main techincal parameter:
Max Capacity |
≤20-60Times/minute(Blister Packing achine) ≤180Carton/Minute(Cartoning Machine) |
Max Forming Area and Deepth |
250×110×22mm(Al/Plastic) 250×110×18mm(Al/Al) |
Carton Size |
(78-150)mm×(33-70)mm×(15-60)mm |
Leaflet Size |
(130-260) ×(100-130)mm |
Carton Material |
250-350g/m2 |
Leaflet Material |
50-70g/m2 |
Voltage and Power |
380V 50Hz 14.5Kw |
Air Consumption |
0.6-0.8Mpa ≥0.8m3/min |
Total Weight |
3500kg |
Material Filling Rate |
≥99% |
Cartoning Rate |
≥99% |
Waste Scraping Out Rate |
100% |
Our Workshop
We will design the machine up to your special request and assure every machine you choose from us is the right and best one.
More questions, could you pls feel free to find us at any time!
