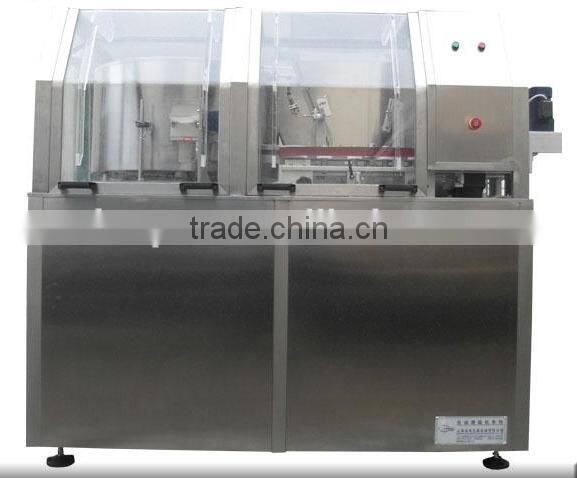

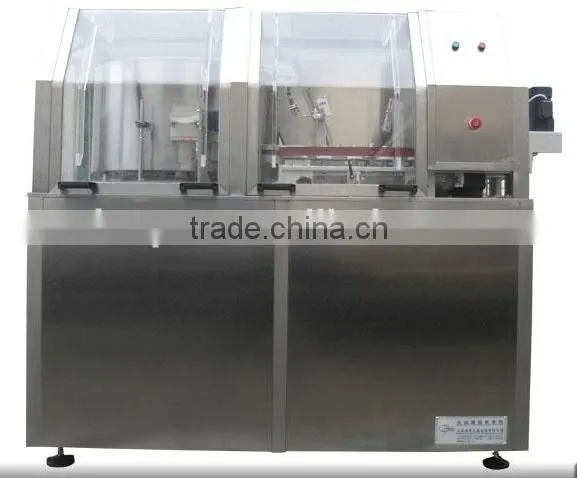

High Speed Bottle Unscrambler Machine
Brief Introduction
This unscrambler is best auxiliary machine of high speed production line. Accurate and solid design, adopting built-in storing room and bottle sorting mold not only can save space, but also deduce noise enerated when working substantially.
The machine can satisfy the requirement of highly automation. Just need to put bottles into the hopper, it will sort the bottles and let them on the conveyor in a row. It is equipped with no bottle alarm, PLC and touch screen. The electrostatic cleaning system can be optional, and it can clean bottles effectively.
Characteristics:
1. Applicable for different sizes and shapes bottles. There is no need to change mold, and avoid to chang
molds to cater for bottles of different specification and it is more widely used and has a higher efficiency.
2. The max speed can up to 200 BPM
3. Stainless steel airframe and transparent hood not only can protect from pollution of outside dust, but
also offer completely safeguard.
4. User friendly
5. Turning motion is accurate. Adjusting and operating is easy.
6. Matched with trundles, easy to move the machine.
Main Technical Parameters:
1.Speed: 200BPM (according to bottles’size)
2.Size of Bottle Body: 20mm-55mm
3.Height of Bottle: 30mm-20mm
4.Dimension(mm): 2500*1200*1500L*W*H
5.Weight: about 700KG
6.Power: AC 220/380V 50-60HZ/1KW
7.Pressure of Air: 0.5-0.7MPa
8.Gas Consumption: 60L/min pure air
9.Optional Parts: elevator, static bottle washer
7. Specially for pharmaceutical and nutrient factories’s high requirement, which meets GMP.
Our Workshop
We will design the machine up to your special request and assure every machine you choose from us is the right and best one.
More questions, could you pls feel free to find us at any time!
