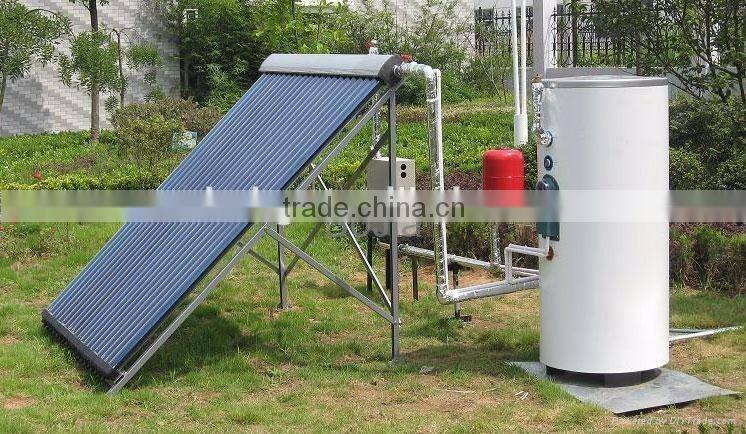

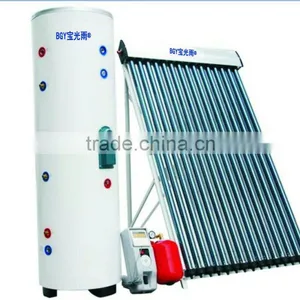

2016 Zhe Jiang Spilt Pressure System Solar Air Conditioner With Heat Pipe/made in China

US$ 600 - 1,200 MOQ: 1 Set

Key Specifications

Type:

Evacuated Tube

Pressure:

Pressurized

Circulation Type:

Indirect / Closed Loop (Active)

Haining Baoguang Solar Energy Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI/NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Type Evacuated Tube

Pressure Pressurized

Circulation Type Indirect / Closed Loop (Active)

Heating System Thermosyphon (Passive)

Connection Type Split

Installation Freestanding

Housing Material Other, color steel

Certification CB, CE, CSA, GS, UL, UR

Capacity 250

Place of Origin Zhejiang, China

Brand Name BGY

Model Number BGY-S250

Product Description

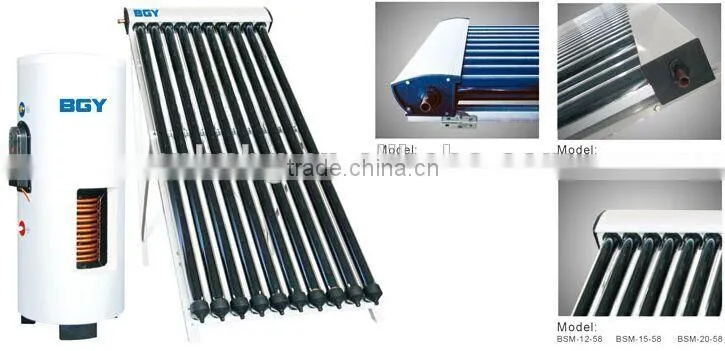

Type	Vertical Pressurized Solar Water Heater Tank
Capacity	150L	200L	250L	300L	400L	500L	700L	1000L
Inner tank	SUS304 2B δ1.2φ360	SUS304 2B δ1.5φ450	SUS304 2B δ1.5φ480	SUS304 2B δ1.5φ480	SUS304 2B δ2.0φ580	SUS304 2B δ2.0φ580	SUS304 2B δ2.0φ580	SUS304 2B δ2.5φ800
Outer tank	Color Steel δ0.5φ470	Color Steel δ0.5φ550	Color Steel δ0.5φ580	Color Steel δ0.5φ580	Color Steel δ0.5φ700	Color Steel δ0.5φ700	Color Steel δ0.5φ700	Color Steel δ0.5φ1000
PU Foam Insulation	55mm	50mm	50mm	50mm	60mm	60mm	60mm	100mm

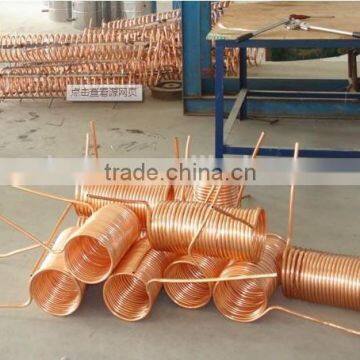

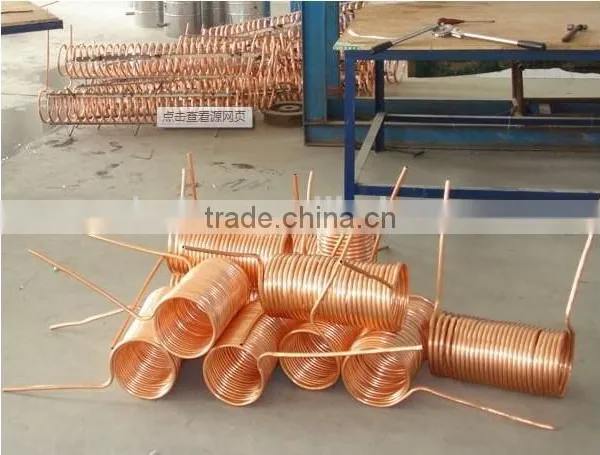

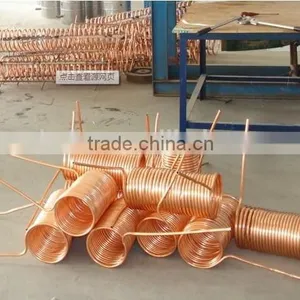

Coil heat exchanger	Copper coil φ12/Stainless steel φ15.88/Flexible pipe φ19
Working Pressure	Suggest 2bars to 6bars
P/T Valve	Release when pressure is over 7bars or tempertuare is over 95 °C
Electric booster	1.5KW 220V or 2KW 220V normally
Suitable people	3persons	4persons	5persons	6persons	8persons	10persons	14persons	20persons

Why Choose Us?

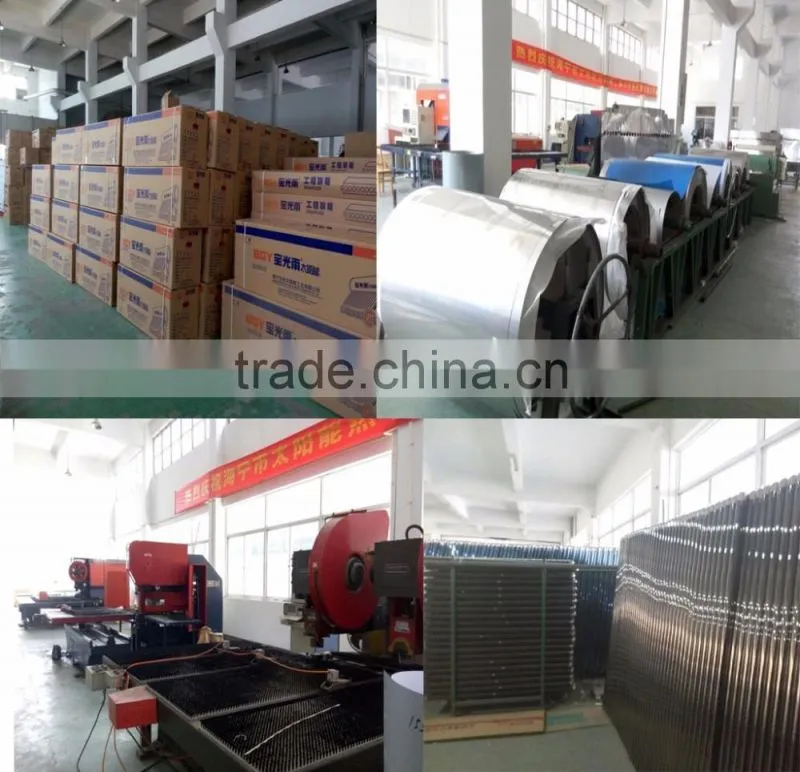

1.We have rich production experience(18 years history).The quality of Product is reliable;

2.We have a perfect production process and strict quality control system;
3.We have perfect service system and will give you the best service;

4.Long service life, can be used as long as 15 years;

Advantages

1.High quality &Factory Price.

2.Different sizes and power can be customized.

3.Raw material at direct factory price with high quality.

4.Discount is offered based on order quantities.

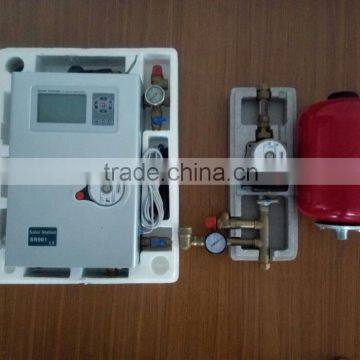

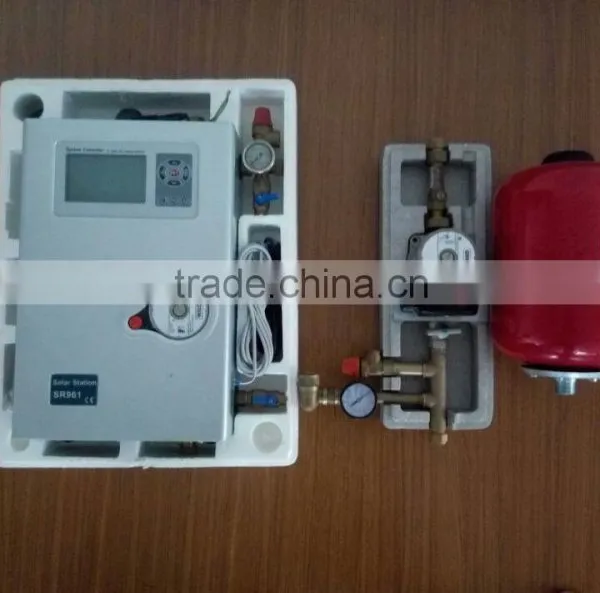

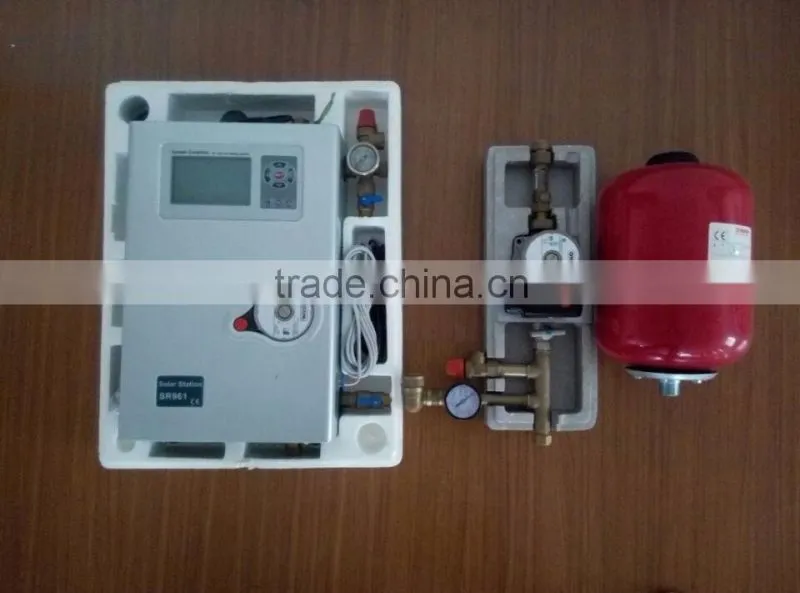

Working station

"WILO" Circulation pump		Little noise, high efficiency, long service time.WILO RS15/6,three phases, 220V/50Hz(German)
Flow meter		Adjusts the circulation medium flux
Intelligent control		Controller SR868C8Q control whole system automaticlly and intelligently
Expansion tank		Adjusts system working pressure when medium expands due to heat
		operation temperature -10~99℃ ,1Mpa maxium operation pressure (Italy Varem)
Relief valve		Stable working pressure at 0.6Mpa, to ensure the system safe
Others accessories		Manometer, copper piping and bubble box
