2016 High Quality solar water heater collector solar system(manufacturer)

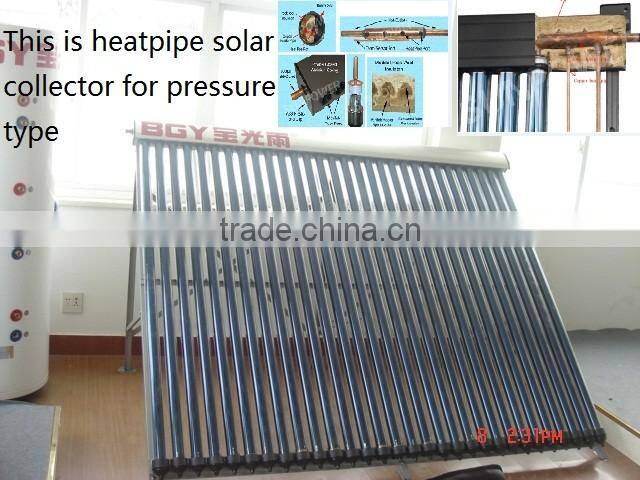

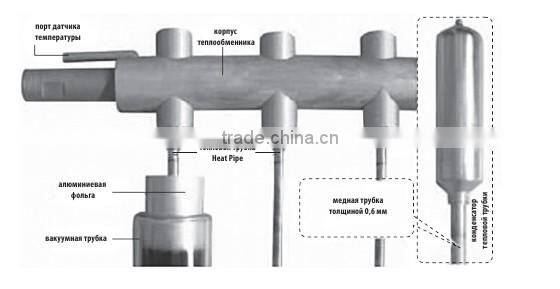

High Pressure/Heat Pipe/ Split Pressurized Solar Water Heater
Feature:
1) Module design, arbitrary combination, harmony with the building perfectly
2) Intelligent control and automatic operation
3) Anti-freeze: Using the anti-freezing liquid as the medium and the controller has the anti-freezing function, the system can work even at - 40°C
4) Multifunction: bathing, washing, domestic heating etc
5) Work at any time and enjoyable
6) It can be combined with existing water heater(gas, fuel or electric).
7) No water in the vacuum tube. So the system can normally work even some tubes are broken

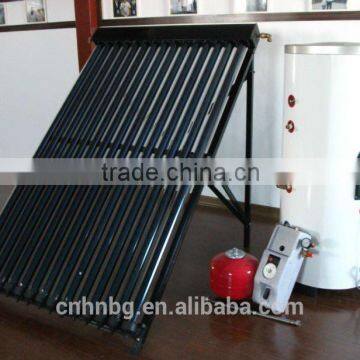

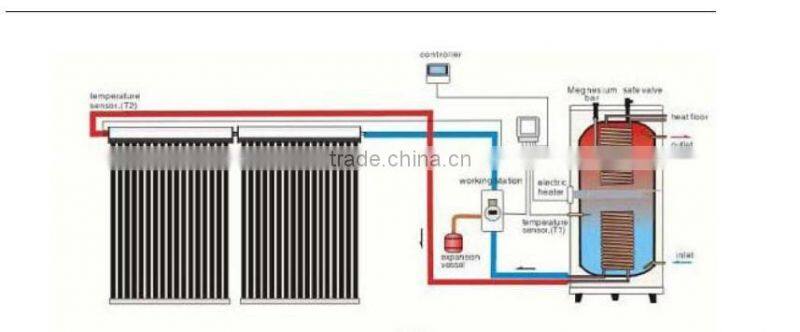

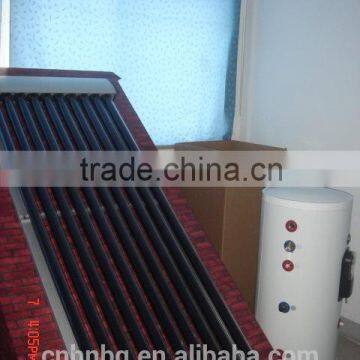

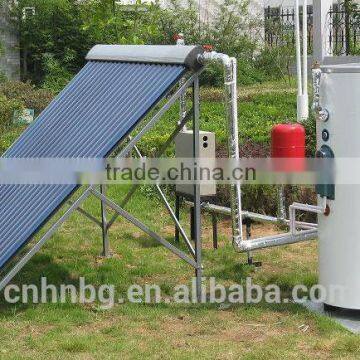

500L Split High Pressurized Solar Hot Water Heater with Heat Pipe Solar Collector
| BGY-IU series Techinical Specifications: | |

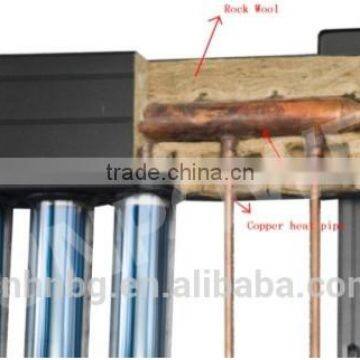

| Material of out manifold | 0.31-0.4mm thickness color steel/ fluorine carbon steel |
| Material of inner tank | Food grade 1.2-2.0 mm thickness SUS304 stainless steel |
| Material of outer tank | colour steel or stainless steel |
| Inlet and outlet hole | Male G3/4 |
| Max pressure | 0.6 Mpa |

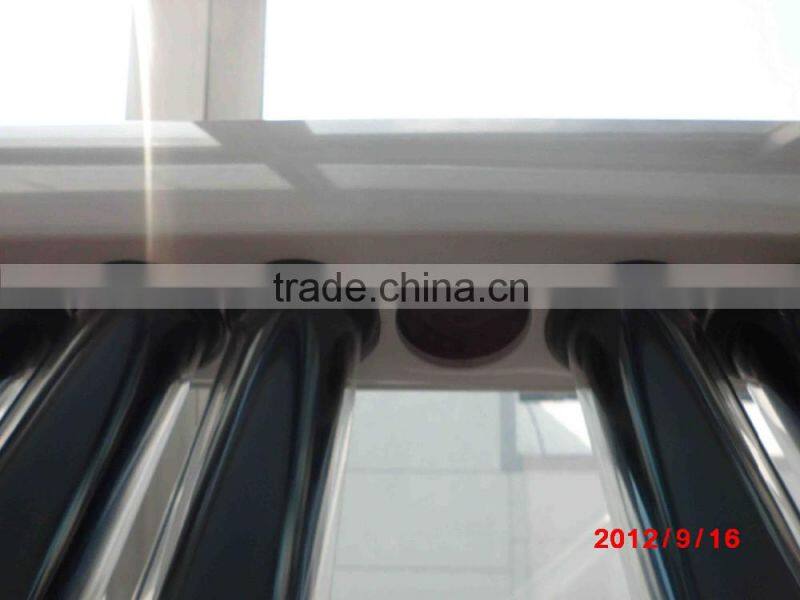

| Solar collector tube | 3.3 Borosilicate glass with SS-ALN(L)/ALNor CU/SS/ALN coating |
| Thickness of glass tube | 1.6mm |
| Vacuum tube tightness | P≤0.005 Pa |
| Absorption | as=0.93-0.96(AM1.5) |
| Emission ratio | εh=0.04-0.06(80C±5C) |
| Idle sunning property parameters | Y=220~260m2.C/KW |
| Average heat loss coefficient | ULT=0.6~0.7W/(m2.C) |
| Bracket: | 2.0mm thickness aluminum alloy |
| Welding: | Argon arc welding |
| Fastening pieces: | Made of stainless steel screw |
| Tank capacity | 100L-1000L |
| Solar collector | 10/12/15/18/20/24/30 tubes |
| OEM | Provide |
| Working station | SP116,SP228, SR961 |

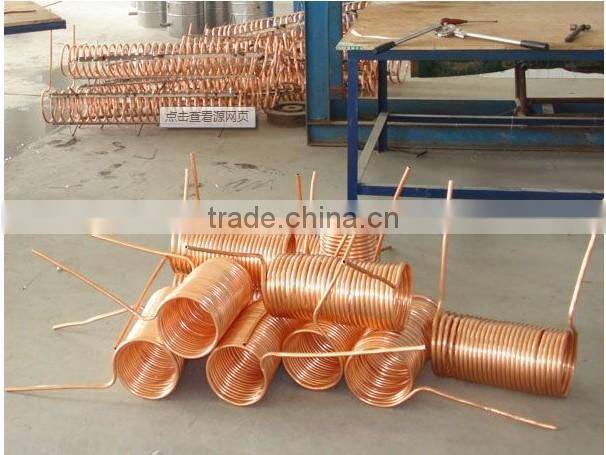

| Heat exchanger length | 10m, 12m,18m,25m,35m...etc |

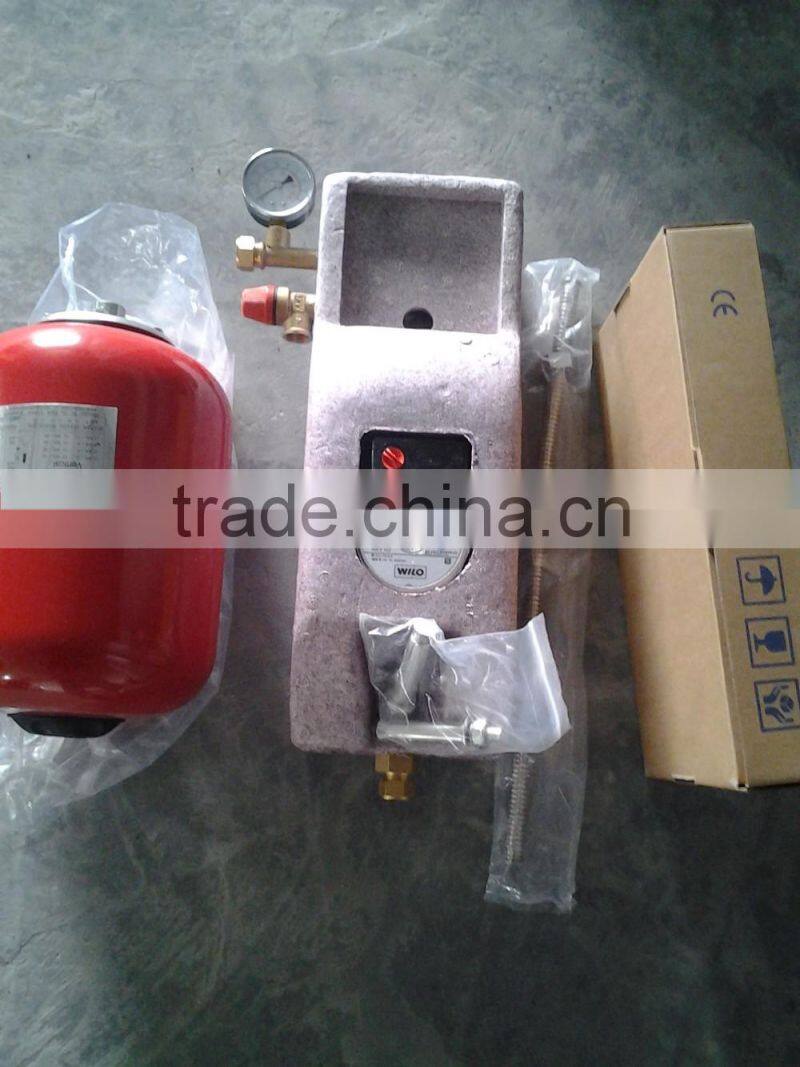

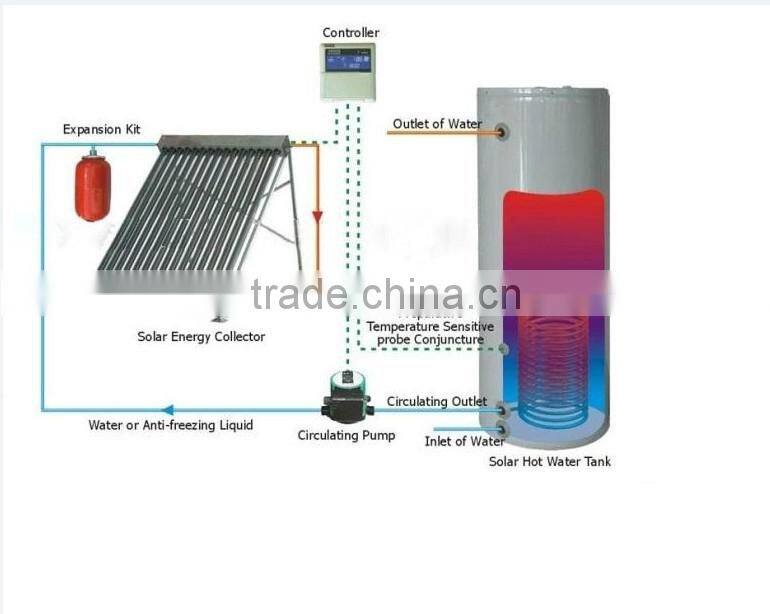

Working station:
| "WILO" Circulation pump |
Little noise, high efficiency, long service time.WILO RS15/6,three phases, 220V/50Hz(German) |
||||
| Flow meter | Adjusts the circulation medium flux | ||||
| Intelligent control | Controller SR868C8Q control whole system automaticlly and intelligently | ||||
| Expansion tank | Adjusts system working pressure when medium expands due to heat | ||||
|
operation temperature -10~99℃ ,1Mpa maxium operation pressure (Italy Varem) | |||||
| Relief valve | Stable working pressure at 0.6Mpa, to ensure the system safe | ||||

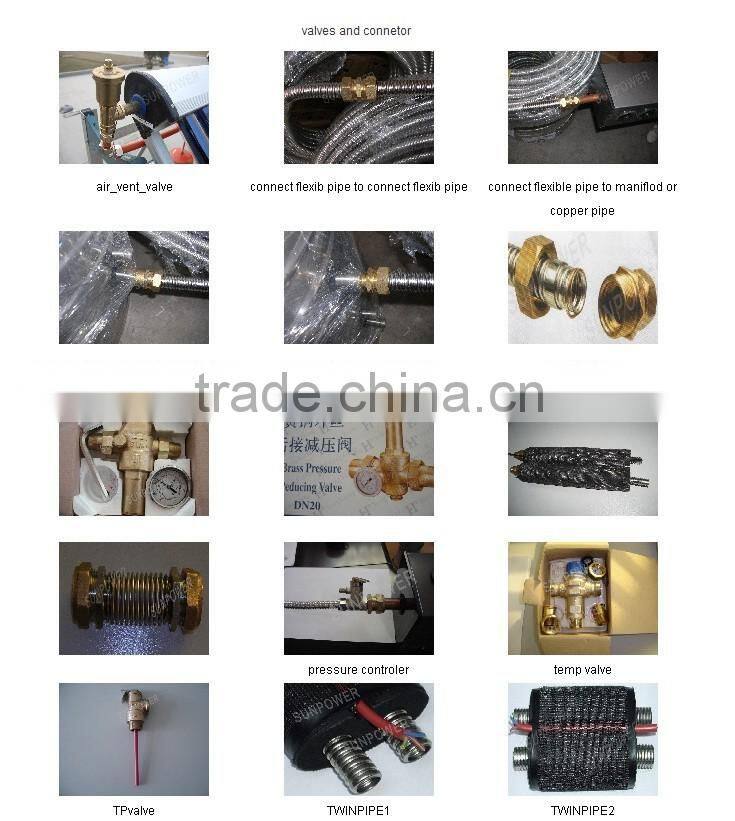

| Others accessories | Manometer, copper piping and bubble box | ||||
1-Can you provide FREE SAMPLES?
Sorry,you have to pay it first,but we'll cut the costs in your next order.
2-Can you accept OED/ODM?
Yes,we can print the logo on the product and package if you need,it is free for containers.
3-What is your GUARANTEE TIME?
5 years for complete system,1 year for accessories.
4-What is your PAYMENT TERM?
T/T,L/C at sight,Western Uion.(LCL order: 100% T/T in advance, FCL: 30% T/T in advance, balance against copy of B/L)
5-Do you have other ADDITIONAL SERVICE?
YES. We provide free spares according to your oder,such as vacuum tubes,tube holders,dust rings,seal rings,screws etc.Also,we can provid logo design.
Company name :HaiNing Baoguang Solar Energy Industrial co.LTD
Address:No.138 Yuanhua Zona Industrial, Yuanhua Town, HaiNing City, Zhejiang Province, China
contact person : Mr.Ronaldo Lou
Tel : 86-573-8786 0877, 87866177
FAX : 86-573-8786 0677, 8786 6977
Mb:+8615068352873
Skype: cnbg005, ronaldo20118055
