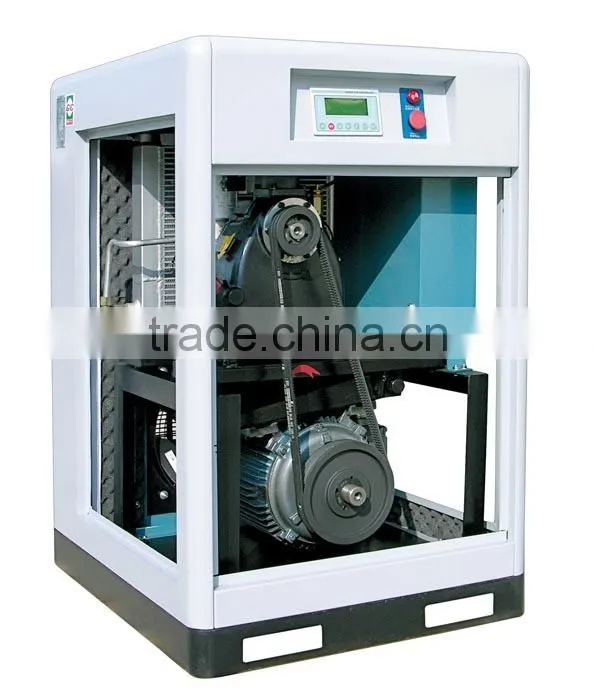

CE belt drive rotary screw air compressor with ROTORCOMP air end LW-10

Name: CE belt drive rotary screw air compressor with ROTORCOMP air end LW-10
Brand: Luowei
Price: Negotiable

FOB Price

Negotiable / Set

2 Sets(Min.Order)

Product Details

Condition:	New	Type:	Screw	Configuration:	Stationary
Power Source:	AC Power	Lubrication Style:	Lubricated	Mute:	No
Place of Origin:	Fujian, China	Brand Name:	Luowei	Model Number:	LW-10
Voltage:	380V/50HZ/3PHASE	Dimension(LWH):	6508701200MM	Weight:	290 KG
Certification:	CE, ISO9001, ISO14001	Warranty:	1 YEAR for whole machine, 2 year for ROTORCOMP air-end	After-sales Service Provided:	No overseas service provided

Product Overviews

LW-10 SCREW AIR COMPRESSOR
AIR END		ROTORCOMP(GERMANY)
TYPE OF COOLING		AIR-COOLED
AIR DELIVERY/DISCHARGE PRESSURE(M3/MIN/MPA)		1.2/0.7 1.1/0.8 0.9/1.0 0.7/1.2
DISCHARGE TEMPERATURE(C⁰)		WORKING TEMPERATURE:BELOW+15⁰C
LUBRICANT(L)		12
OIL CONTENT IN AIR		<3-5PPM
NOISE LEVEL		70-72±2DB(A)
TYPE OF DRIVE		BELT DRIVE
SET PRESSURE OF SAFTY VALVE		DISCHARGE PRESSURE+0.1MPA
MOTOR	POWER(HP/KW)	10HP/7.5KW
	STARTING METHOD	DIRECT STARTUP
	VOLTAGE/FREQUENCY	380V/50HZ
	ISOLATION GRADE	GRADE F
DIMENSION	LENGTH(MM)	650
	WIDTH(MM)	870
	HEIGHT(MM)	1200
NET WEIGHT(KG)		290
SEPERATE TYPE FOB XIAMEN(USD)		$1,950.00
COMPACT TYPE FOB XIAMEN(USD)		$2,200.00

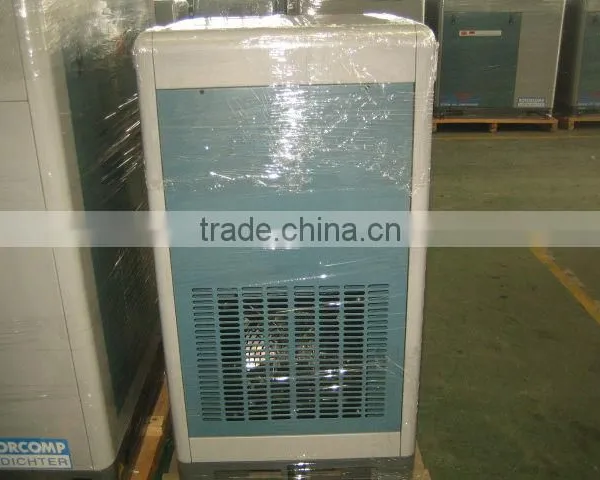

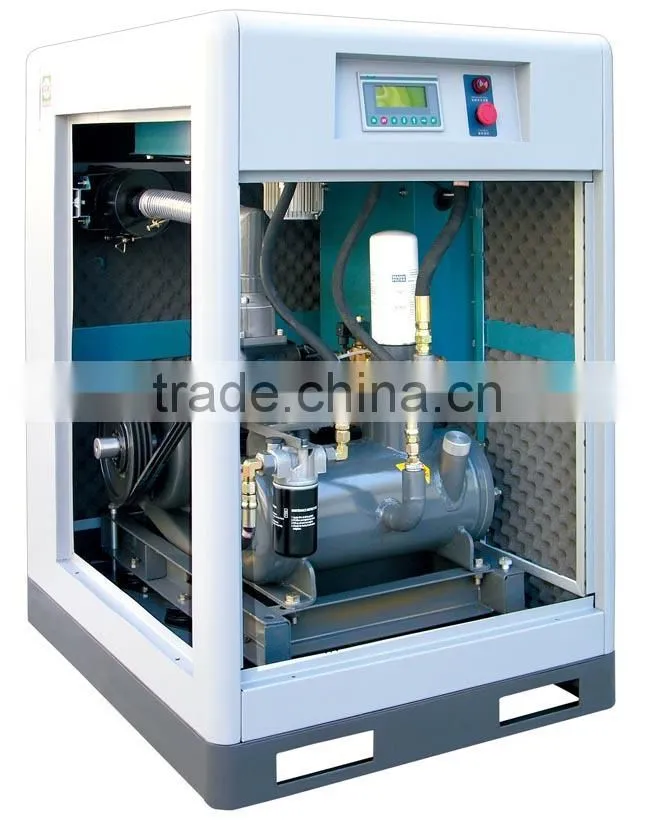

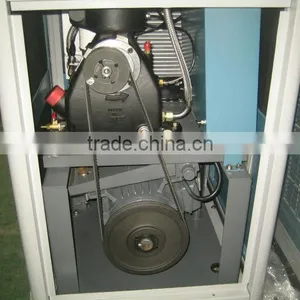

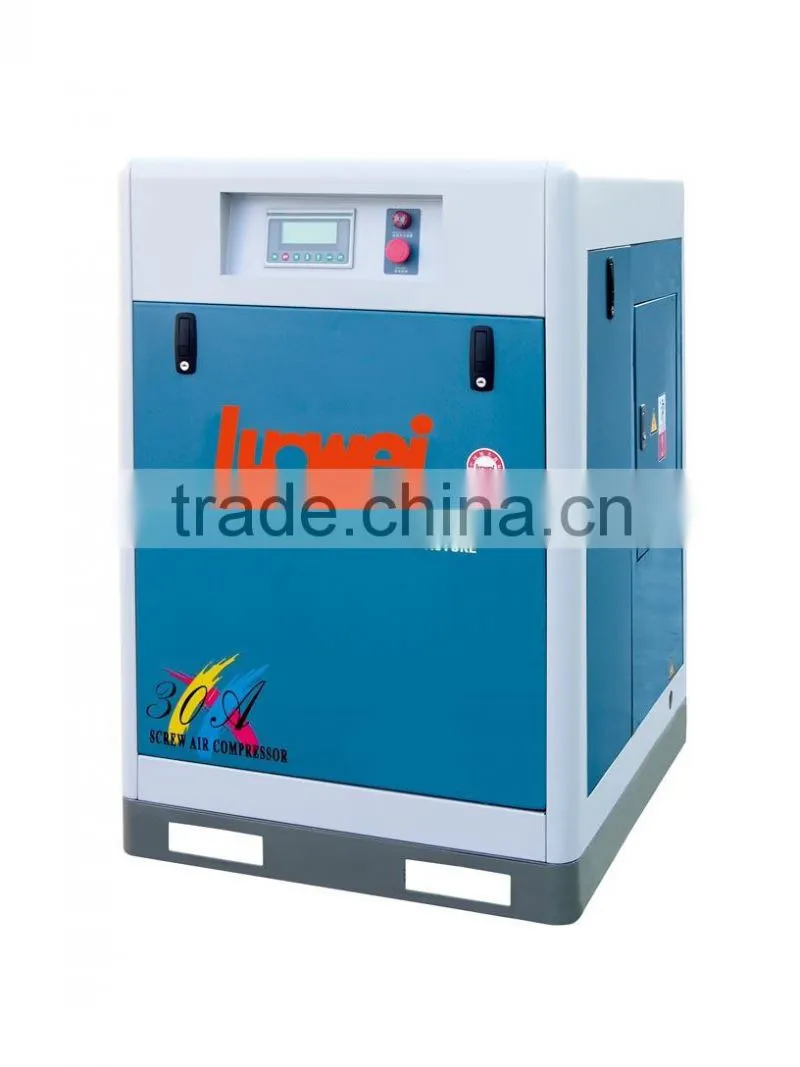

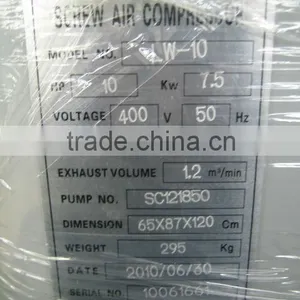

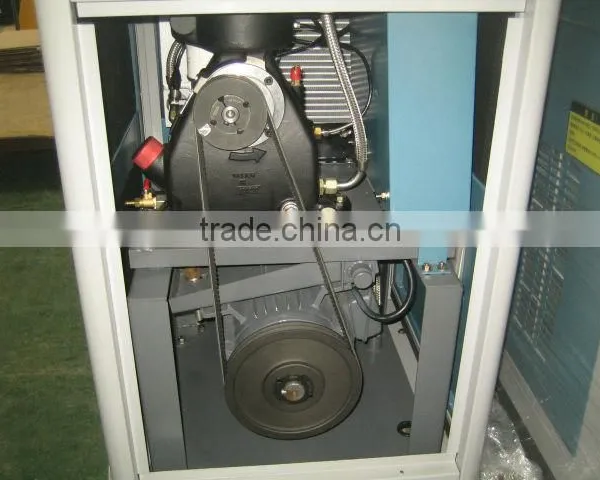

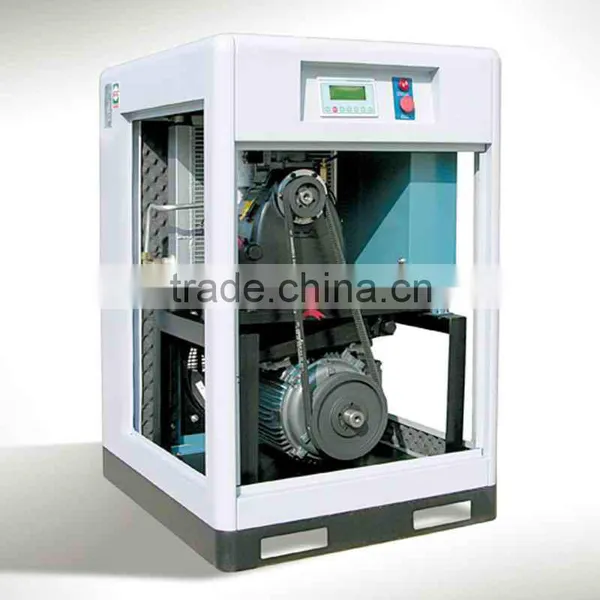

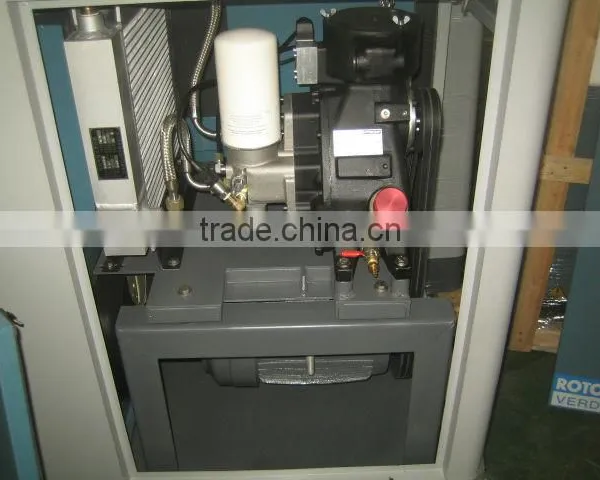

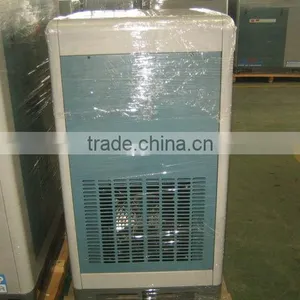

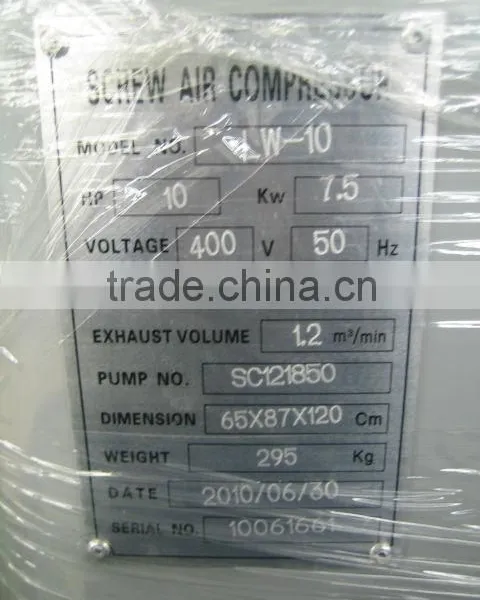

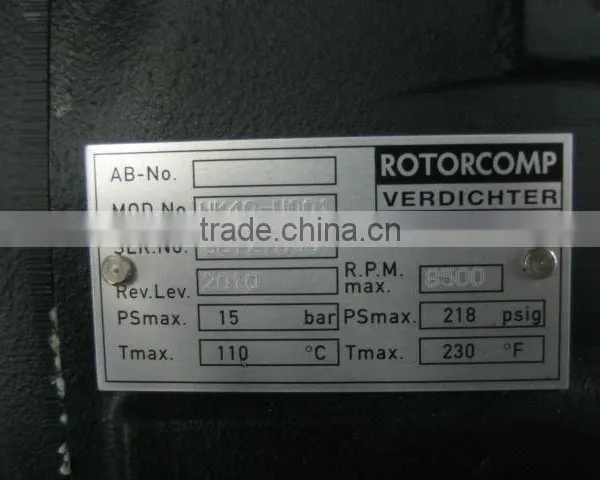

Detailed Images

Lida (China) Machine Equipment Co., Ltd.: Contact nameCook Hu; Phone0086-595-87590567; AddressDongyuan industrial area, quanzhou, fujian, china Quanzhou,Fujian
