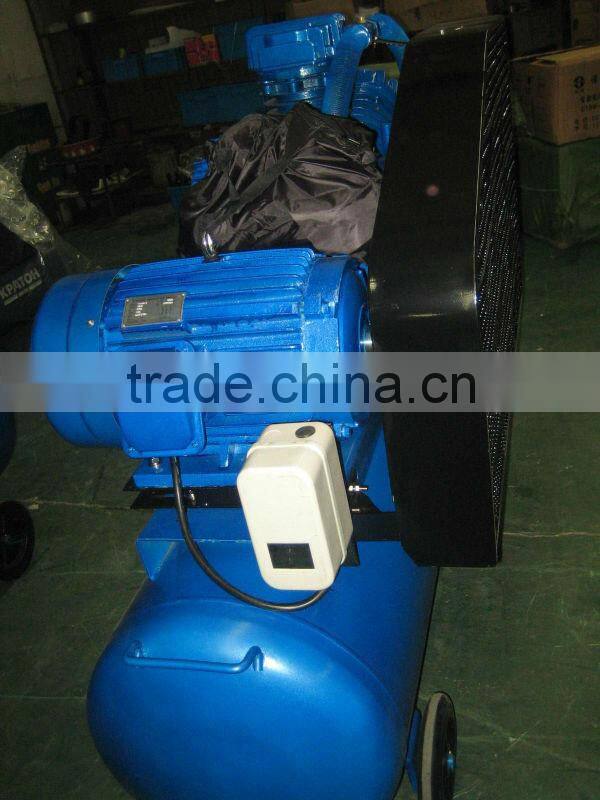

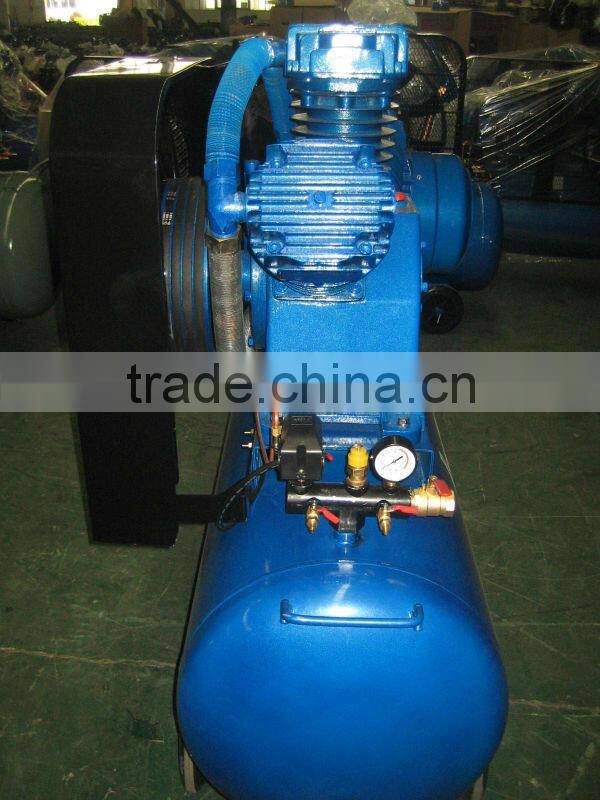

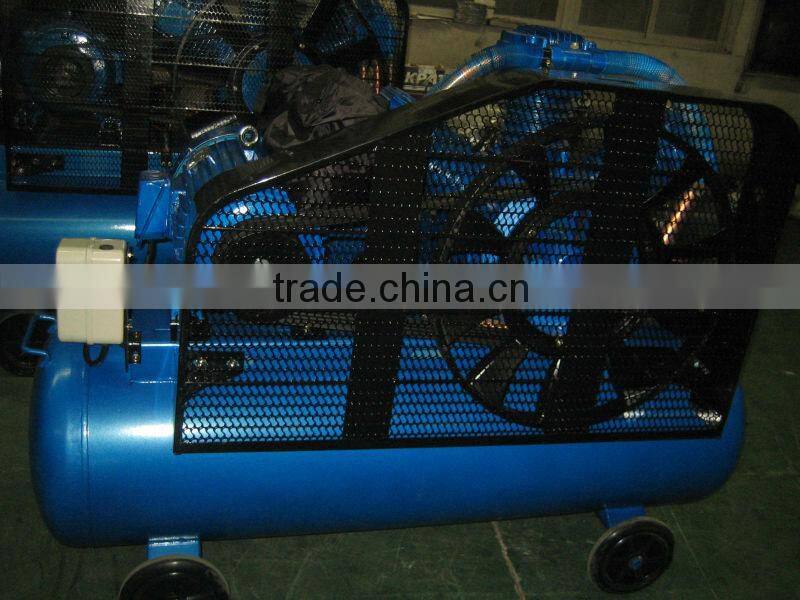

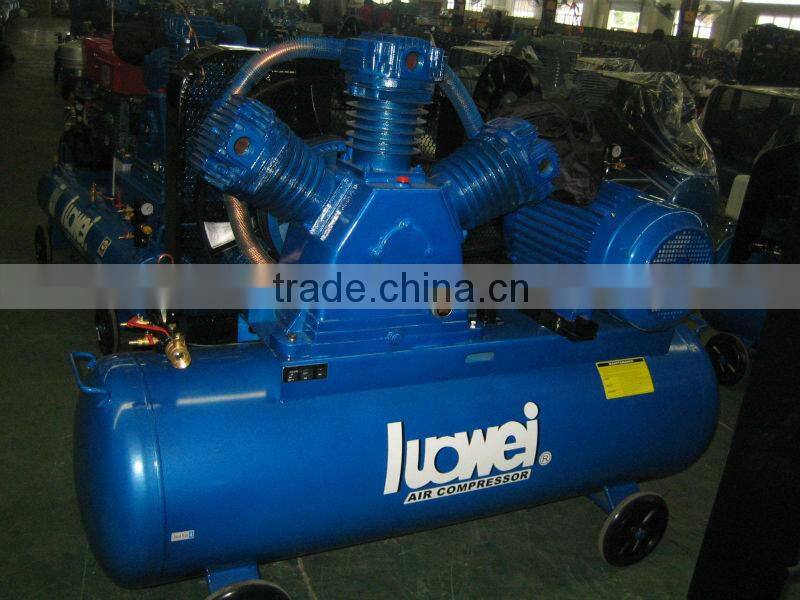

Bellt Driven One Stage 20HP Oil Lubricated Piston Mobile Air Compressor

Bellt Driven One Stage 20HP Oil Lubricated Piston Mobile Air Compressor thumbnail-1
Bellt Driven One Stage 20HP Oil Lubricated Piston Mobile Air Compressor photo-1
Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Piston
Configuration:
Portable
Contact Supplier Request Quote Chat Now
Lida (China) Machine Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Piston
Configuration Portable
Power Source AC Power
Lubrication Style Lubricated
Mute No
Place of Origin Fujian, China
Brand Name Luowei
Model Number W-2.0/8
Dimension(L*W*H) 188*82*139
Weight 540
Certification CE, CCC, ISO9001

Specifications

Belt driven air compressor-8bar
Heavy duty
W type air compressor
Oil lubricated air compressor
CE, CCC, ISO9001 approved

W type

Professional and heavy duty for industry

Cast iron pump, long life

Low oil consumption

Low RPM, low noise



Color: Any color in Pantone color is available

Brand: OEM

Delivery time: One month

Price term: Fob xiamen

Payment terms: 30% TT deposit in advance payment and 70% TT before shipment

                          L/C at sight



Model: W-2.0/8
Motor: 20HP
Air delivery: 2M3/min
Tank: 340L
Pressure: 8Bar (115Psi)
Voltage: According to customers' requirement
Cyliner: 120mm * 3
Travel: 100mm
Weight: 540kg
Packing size: 188*82*139cm
Package: 3 layer brown carton with wooden crates

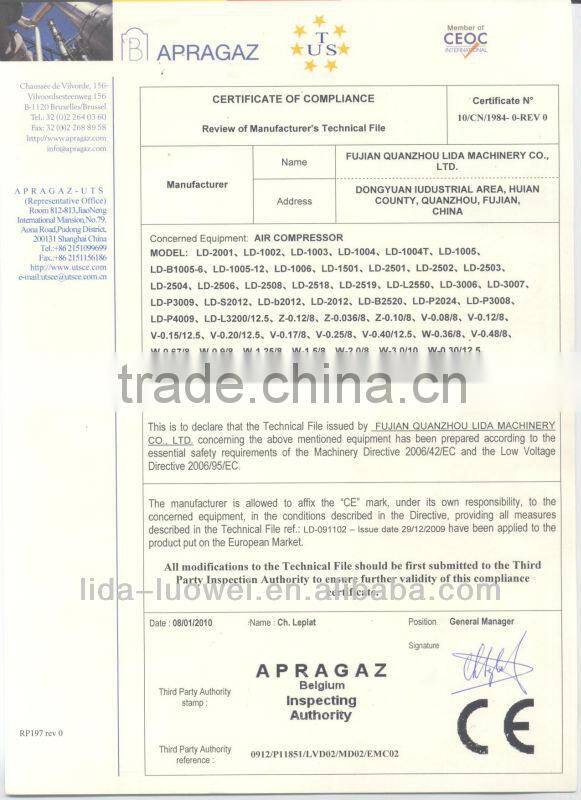

Certificate: CE, CCC, ISO9001



1.8-12.5 bar working pressure, heavy duty, oil lubricated, low maintainnence operation.



2.Cast powerful iron pump and advanced technology of air-cooled system design for longer working life.



3.Equipped with pressure regulator, pressure gauge, quick connect air outlet, safety valve, on/off switch.



4.High efficiency to supply enough compressed air.



5.Operated at voltage 220/380/400//440V, 50/60Hz.



6.CE, CSA,CUSA,GMPC,CQC,CCC, ISO9001,ISO14001certificates.



7.Various of pump can be matched with different size of tank capacity.



Bellt driven one stage 20HP oil lubricated piston mobile air compressor



Bellt driven one stage 20HP oil lubricated piston mobile air compressorBellt driven one stage 20HP oil lubricated piston mobile air compressorBellt driven one stage 20HP oil lubricated piston mobile air compressorBellt driven one stage 20HP oil lubricated piston mobile air compressor



Bellt driven one stage 20HP oil lubricated piston mobile air compressorBellt driven one stage 20HP oil lubricated piston mobile air compressorBellt driven one stage 20HP oil lubricated piston mobile air compressorBellt driven one stage 20HP oil lubricated piston mobile air compressor

Bellt driven one stage 20HP oil lubricated piston mobile air compressor

Bellt driven one stage 20HP oil lubricated piston mobile air compressorBellt driven one stage 20HP oil lubricated piston mobile air compressorBellt driven one stage 20HP oil lubricated piston mobile air compressor
