Smallest gps sms gprs vehicle tracking 3g gps tracker
----- Brief Introduction -----
Working based on existing 3G / GSM / GPRS network and GPS satellite positioning system,this product can locate and monitor any remote targets by SMS or internet. The most advanced technology of GPS and GSM dual positioning.
size |
48*60*22mm |
Working Voltage |
DC:6~40V |
Working Temperature |
-40~85°C |
CPU |
TI:MSP430F149(16MHz) |
GSM Module |
SIM5320 850/1900MHZ 900/21000MHZ 850(800)2100MHZ Tally with: GSM phase 2/2+ -Class 4 (2W @ 850/900MHz) -Class 1 (1W @ 1800/1900MHz) Max RF Output: 33.0dBm±2dBm Dynamic Input Range: -15 ~ -102dBm Receiving delicacy: Class RBER≤2%(-102dBm) Frequency Stability: > 2.5ppm Max Frequency Deviation: ±0.1ppm RMS Deviation: ≤5deg |
|
GPS Module
|
GPS chip set: SiRF Star IV Frequency: L1, 1575.42 MHz Number of Channel: 20 Reacquisition: 0.1 sec, average Hot boot: 2 sec., average Warm boot: 38 sec., average Cold boot: 44 sec., average Altitude limit: 18000 m Velocity limit: 515 m/s |
Current |
Standby Current:16mA working Current:60~150mA Charging current: Max<500mA |
Accessories |

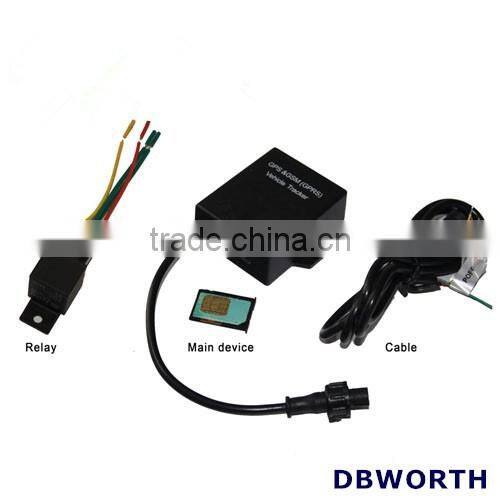

Device, Relay, Connection Cable |
----- Product Display -----
----- Functions Explanation -----
Positioning and tracking:
Through the on-line positioning platform or the cell phone to locate at anytime, and get the working status. You can choose the positioning Platform by yourself.
Geo-fence Mode:
Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
Over Speed Alert:
When the target moves exceeding a preset speed the unit will send an SMS+Geo-info to the authorized numbers.
Auto track:
Auto track by SMS or online positioning platform; Mileage statistics; ACC checking.
Cutting off power and alert:
When tracker cut off power, the tracker sends alert SMS to user.
Remote controlling oil and circuit:
You can Cut off or turn on the oil & circuit remotely via SMS or Online whenever you want.
GPS & A-GPS(LBS—location based service):
Using Global Satellite Positioning technology, LBS(Location Based Service) technology(while it’s can’t location via GPS, the devices will get the location information via LBS).
Advantages:
This device can connect with OBD extend wire to be plug and play, but it will not support remote engine/oil cut off.
Optional Accessories:
Internal Spare Battery (200mah), Memory Card(8MB), Internal 3D Rollover Sensor, Internal Buzzer, Temperature Sensor, OBD II Switching Port Cable
----- Factory Show -----
----- Why Choose Us -----
Professional technology, design team, Perfect service. Soonest feeback.
