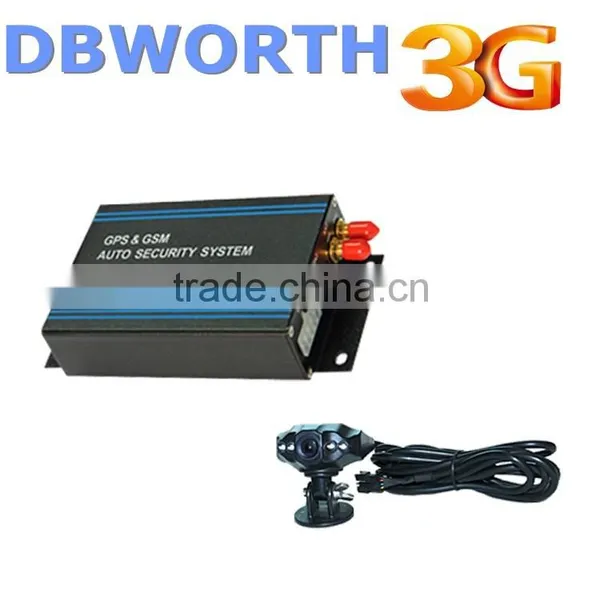

mini camera gps gprs gsm vehicle tracking system

FOB Price

USD $99 - $109 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Type:	Gps Tracker	Use:	Automotive	Screen Size:	Other, NO
Function:	DVD/VCD, Photo Viewer, Radio Tuner	Place of Origin:	Guangdong, China	Brand Name:	OEM/ODM
Model Number:	T024	Warranty:	5 Years

Packaging Details

Packing size:31*21*11cm Carton size:50*43*31cm 10pcs/cn

Product Description

mini camera gps gprs gsm vehicle tracking system

(Note: T024 could be optional for Temprature sensor, 3D sensor, RFID reader, LED screen, GPS navigation, fuel leverl sensor etc)

----------- Applications -----

Taxi,Bus,Tour Bus,Engineering Truck,Fleet Management,Logistics Team Management,Fuel Tank Monitor,etc.

----------- Main functions -----

1. Real time uploads location information via time/distance interval

2. Image transmit (take photos by digital camera)
3. Realtime Positioning & Tracking

4. SOS Function & Power-cut Alert
5. Audio Monitoring
6. Geofence & Over Speed Alerts

7. Fuel level Monitoring
8. Remote controlling oil & circuit

9. ACC/Door/Trunk/bonnet/shock Alert

10. Special Vehicle Monitoring (dump trucks pouring, mixers rotating, etc.)

11. Built-in backup battery ,low battery alert ,unauthorized dismantle alert

12. GPS & A-GPS (LBS—location based service)
13. LED Advertising Screen, 3-D sensor , RS232 Printer, Temperature sensor, RFID (optional)

Fuel Monitoring: Remote monitoring vehicle fuel (oil, oil spills, oil steals, fuel consumption, etc.)

Auto track: Auto track by SMS or online positioning platform; Mileage statistics; ACC checking

Cutting off power and alert: When tracker cut off power, the tracker sends alert SMS to user

Remote controlling oil and circuit: You can Cut off or turn on the oil & circuit remotely via SMS or Online whenever you want

GPS & A-GPS(LBS—location based service): Using Global Satellite Positioning technology, LBS(Location Based Service) technologe(while it’s can’t location via GPS, the devices will get the location information via LBS automatically)

Images transmit: Take photo by the digital camera, to check what's happened in the vehicles

Optional features:

1. Support vibration sensor

2. Add temperaturer sensor

3. Support TCP/UDP protocol

4. Support fuel anti-theft alert

5. Support 2 fuel sensors at most

6. Support fuel theft early sound/light warning

7. Support 2 cameras at most

8. Support RFID Reader

9. Support customized firmware

----------- Specifications -----

Size	1377529mm
Working Voltage	DC:6.3~40V
Input Fuse	5A
Working Temperature	-40~65°C
Humidity	10% to 90%
CPU	TI:MSP430F5419(100MHz)
GSM Module	GSM Module:sim5230/5360 Dual-mode UMTS/HSPA+/EDGE/GPRS operation GPRS Class B, multislot class 12 operation, Supports coding scheme: CS1 EDGE multislot class 12 operation, Supports coding schemes MSC1-9 UMTS R99 data rates-384 kbps DL/UL Category 6 HSDPA -14.4 Mbps HSUPA-5.76 Mbps CSD feature: 9.6, 14.4, 64 kbps UL/DL
GPS Module	GPS Chip: SiRF Star III / IV Frequency: L1, 1575.42 MHz Number of Channel: 20 Sensitivity: To-159Bm Tracking, Superior Urban Canyon Performance Reacquisition: 0.1 sec, average Hot boot: 2 sec., average Warm boot: 38 sec., average Cold boot: 44 sec., average Altitude limit: 18000 m Velocity limit: 515 m/s

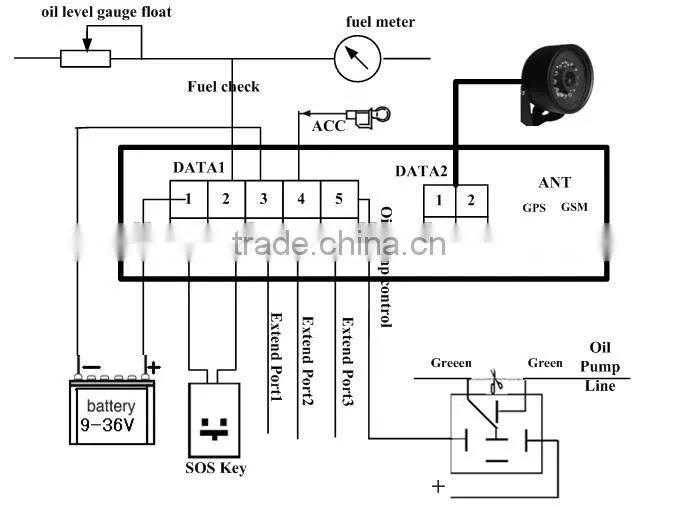

Input I/O	7 I/O input Port 1 port use to check the engine ( ACC check) 1 port use to SOS 1 A/D Input port( Fuel monitoring) 1 Output port ( Car engine control ) 3 Extend ports ( Input/Output control by software)
RS232	Two One is connect to the camera (130M pixel) Other is extending ports, can connect to GPS Navigator/RFID Reader/LED Screen.
Microphone	3.5mm single track
earphone	3.5mm
Current	Not working Current 16mA working Current:60~150mA Current of opening infrared of Camera at night :100~200mA Charging current: Max<500mA
Battery	Lithium battery :350mA( working time is about 3.5 hours)

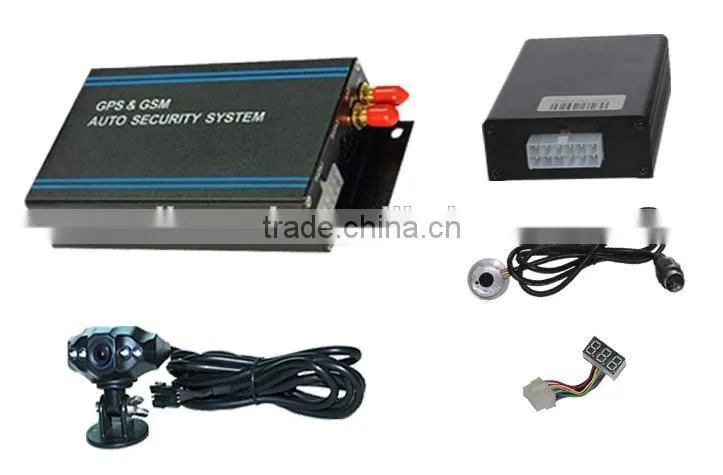

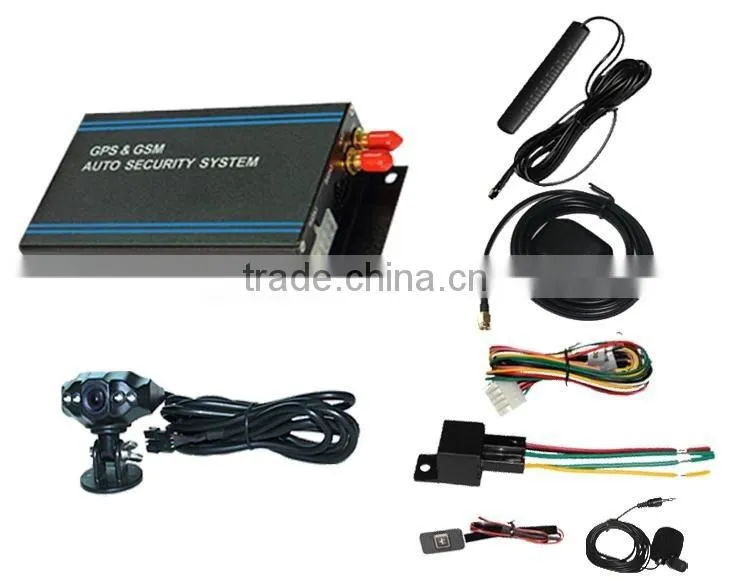

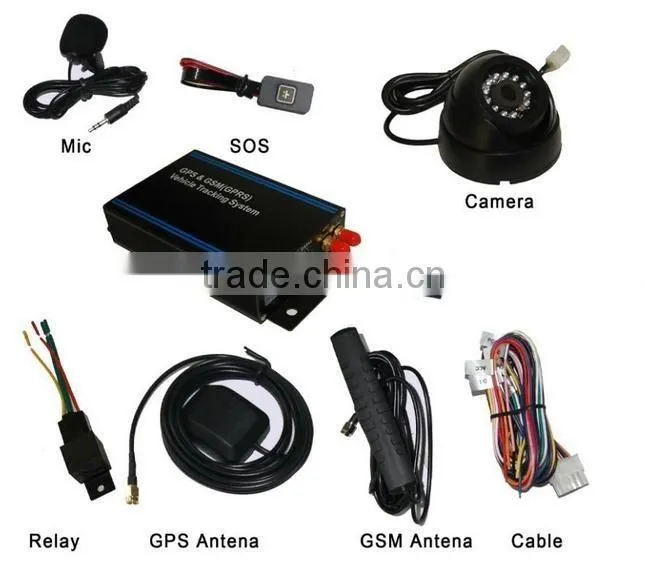

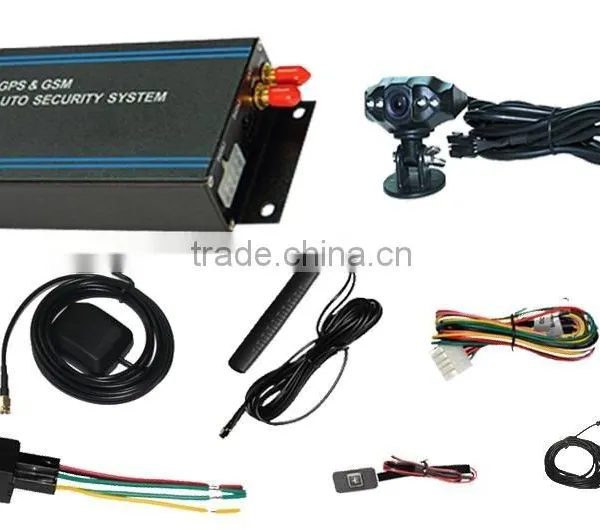

Accessories	Device, Connecting cable ,GPS antenna ,GSM antenna, Engine controller, SOS button, Microphone, Camera

----------- Special Technical Service -----

1, Help you setup your own GPS tracking system for free

2, Free server service
3, We accept OEM and customised orders.(logo, functions, language)
