Specifications
Automatic rotating steel tubel cut-off heading machine can function well. No matter with the cold or hot pipe, it can reconstruc
Swaging Machine

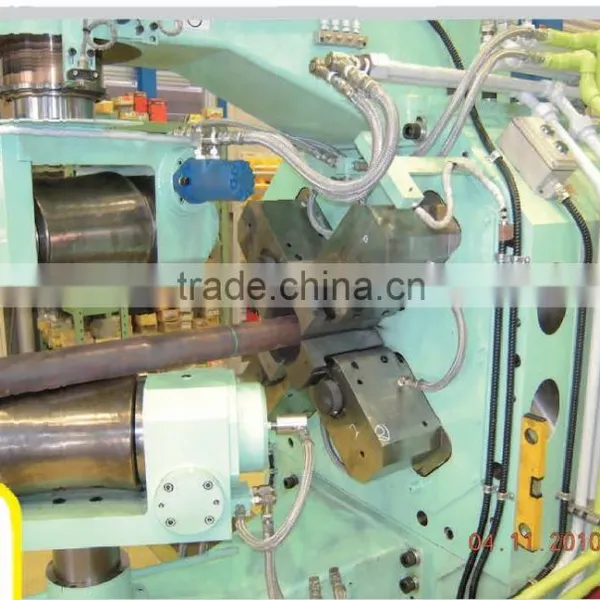

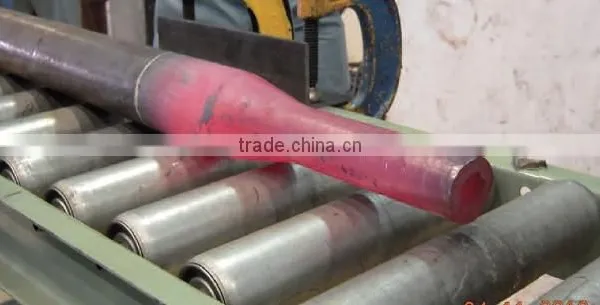

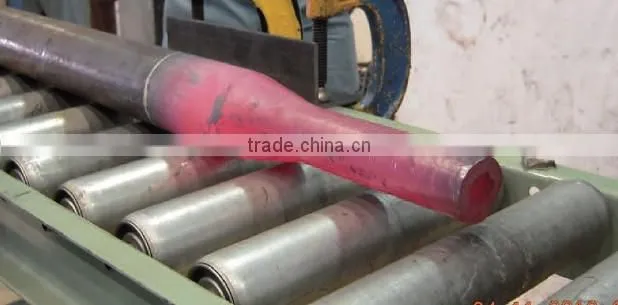

YFDTJ-100T Automatic rotating steel tubel cut-off heading machine can function well. No matter with the cold or hot pipe, it can reconstruct the pipe.
This machine has a conveying roller itself, which can deliver the mains to cut-off heading machine and discharge the cut pipe out of machine. PlC is applied on this machine, which gives the cut pipe a prefect quality and no break.
Scope of pipe kinds: SA2100, T21, T22, T23, T91; Mains external diameter: Φ25-Φ145, thick of wall of pipe: 2-22mm, cut-off length: 20-600mm; Beat: >3PCS/min.
Main process flow:
surface inspection——polishing---forging the pipe end ---- pickling --- parkerising ----oiling ----cold drawing ----- thermal treatment-----straightening ---cutting of the pipe end --- eddy current test--- ultrasonic detecting --- magnetic particle inspection ---pressure tesst—surface inspection --- marking ---- stacking and packing ---weighing and storage
