Help Center15'' TK315A Coaxial Active Speaker
Related Products
-
Plastic Material, Active Coaxial Speaker SU10US$ 1 - 1,000MOQ: 5 Pieces -
850W 128dB 3 Way Coaxial Driver Digital Active Loudspeaker C-MARK TK315ANegotiableMOQ: 1
-
HI44T+LO1275A,450W,100dB Active Audio Speaker C-MARK FT04A for SaleNegotiableMOQ: 1
-
Hi75TG+LO15100A,650W,102dB Active Audio Speaker C-MARK FT05A for SaleNegotiableMOQ: 1 Pair
-
450W/121dB Active Stage Monitor Loudspeaker C-MARK FT04MANegotiableMOQ: 1 Pair
Specifications
active speaker1:bi-amp active speaker
2:active speaker 850W
3:15 inch coaxial speaker,cheap active speaker
4:CE,RoHS,ISO
active speaker active speaker 850W 15 inch active speaker audio active speaker professional active speaker monitor active speaker bi-amp acitve speaker full range active speaker
Contact your sales representative Sawean Su at 0086 15018515829 always be here.
Skype: saweansu trademanager: cn201432212

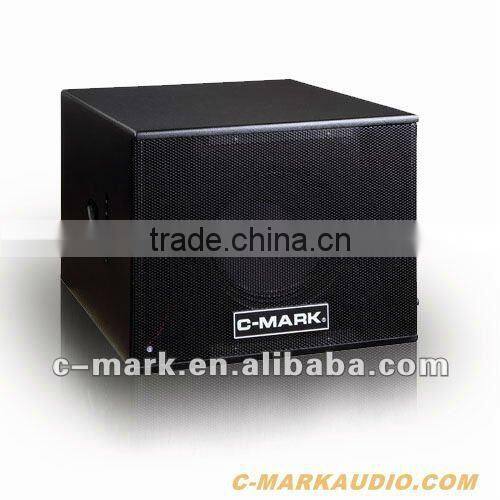

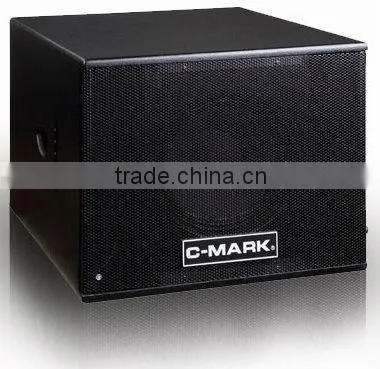

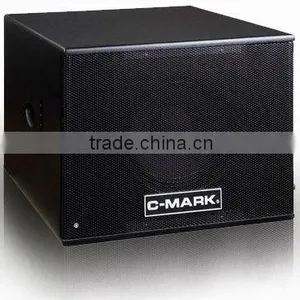

TK315A active speaker Introduction
TK315A digital active loudspeaker performs super bass effect, it consists of a coaxial driver that drives all HF, LF and Sub at one single point. This loudspeaker features high efficiency, high sound output, refined sound quality, perfect protection functions and good EMC characteristics. And it adapts power supply voltage from AC 100V to 240V 50/60Hz, suitable for universal power. TK315A is designed for venues like Karaoke hall, auditoriums, meeting rooms and multifunctional halls for large SPL.
TK315A active speaker Details Main Features
1. Adopted 3 way coaxial driver, using unique one-magnet-three-loop technology. The diagrams of HF, LF and Sub make the sound in the same axis point, so that all frequency sounds synchronously, with no time difference. With clear HF and LF, sub bass deep, strong and vigorous, it provides even sound field distribution, both horizontal and vertical dispersion angle are 120 °
2. Using PFC technology switching power supply components, adopts wide voltage range AC 100V-240V 50/60Hz global power supply.
3. Using independent 3-channel Class D amplifier circuits, high energy conversion efficiency, low-carbon and environmental friendly.
4. Pre-amplifier components using three way crossover circuits, with independent gain setting for HF, MF, LF.
6. Efficient and safe dynamic compression function on power output and temperature protection circuit, free users from worries.
7. Suitable for a wide range of applications: commercial, night club, entertainment, schools, military and so on.
Model No. |
TK315A |
HF Power (8Ω): |
100W RMS |
MF Power (8Ω): |
250W RMS |
LF Power(4Ω): |
500W RMS |
Power in total: |
850W RMS |
Components: |
LMH151244ND (15” + 12” + 1.75”) neodymium |
Frequency response: |
40Hz-18KHz |
Crossover point: |
LP 200Hz HP 3KHz |
Max power: |
1700W |
Sensitivity: |
99dB(1W/1m) |
THD: |
<0.1% |
SPL: |
128dB |
Power supply: |
100-240V ~50/60Hz AC |
