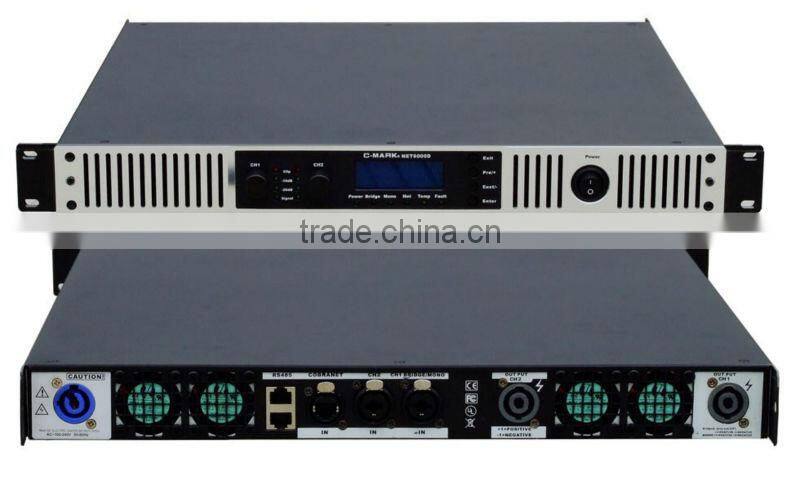

C-MARK NET6000D network digital amplifier

Specifications

1. remote control
2.low heat emitting, light weight
3.digital amplifier
4.User-friendly LCD display

 Details

1. Remote Control

2.Network audio siganal receiving

3.Power sound, smaller weight

4.Accuracy of sound

5.Full digital, high reliability

6.Durable





Specifications

Powe:          8Ω:1000W×2

                   4Ω:2000W×2

                   2Ω:3000W×2

Bridged power:

                   16Ω:2000W

                    8Ω:4000W

                    4Ω:6000W

Bandwidth:    5Hz-28KHz

Damping factor(8Ω):               >200 (20Hz-200Hz)

S/N(A-Weight 20Hz-200Hz):   >108dB

Ascent slop(8Ω):                     48V/uS(No input filter)

THD:                                     <1% @ RMS POWER(<0.03% TYPICAL VALUE)

SMPTE:                               Max<0.9 % @ RMS POWER(<0.06% TYPICAL VALUE)

DIM 30:                                Max<0.9 % @ RMS POWER(<0.09% TYPICAL VALUE)

Gain/ sensitivity:                     26dB-40dB Adjustable

Input impedance:                    10KΩ each leg,electronically balanced to ground

Input:                                    Balanced to ground,XLR female combo jack 6.3 mm, RJ45

Output:                                 High current Neutrik 4-pole Speakon connectors

Stereo Or Mono:  CH1: pins 1+1- ; Ch1: pins 1+1-

Bridge:                CH1: pins 1+2+



Power supply Specifications



Voltage: AC100V-240V 50/60Hz



Other specification:



Heat radiation:      compulsive fans(4 teperature controlled fans)

Input connector:    Balanced XLR

Output connector: speakon connector

Control:                two channel volume controller (front panel)

LED indicator:      level indicator, malfunction indicator, overheat indicator

Dimension:           483 * 445 * 44 mm   W * D * H

Weight:11.5Kg
