Specifications
DSP audio power amplifier1. 20 years experience in pro-audio.
2. remote control function
3. CCC, CE and Rohs
Welcome to C-mark Audio!!!

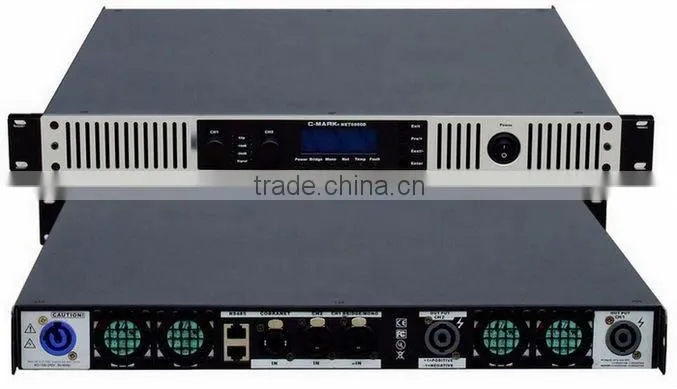

Professional C-mark DSP audio power amplifier Net6000D 1000W

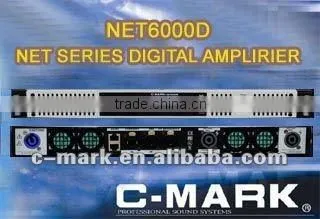

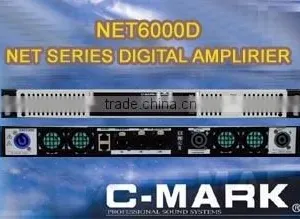

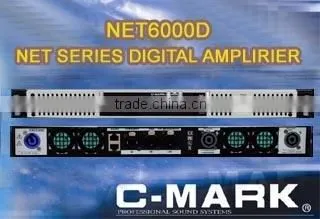

The introduction of NET6000D digital amplifier
Remote Control ( DSP audio power amplifier )
By using software on PC, and through RS485 interface, C-MARK nework digital amplifiers can monitor working temperature, current, voltage, malfunction, protection status; and can realize Equalizer, Compressor, Crossover, Each channel delay, Gain & Sensitivity Control, etc.
Network audio siganal receiving
C-MARK network digital amplifier can realize CobraNet transmitting, and receiving remote Network audio siganal by using software RS1200.
Power sound, smaller weight ( DSP audio power amplifier )
Compare with ordinary amplifiers, C-MARK digital amplifier can provide more power, efficiency, and better heat emitting. Highly reduced the dimension, weight and power consumptionl. Power output efficiency reach 95%, only 5% heat consumption.
One of the most wonderful feature of C-MARK digital amplifier is: the efficency is nealy independed for the output. Ordinary amplifiers can get Maximal efficiency only under the maximal power output. Usually, there are 40% average power density, ordinary amplifier will emit 10 times more heat than C-MARK digital amplifiers under the same volume.
Accuracy of sound
Cystal clear high frequency, compact powerful low frequency, the most accuracy sound signal rebuild, patent design ensure the high performance parameter, such as: distortion, frequency response, convert rate, power supply band width, and damping factor.
Full digital, high reliability
C-MARK digital amplifiers are based on PWM technology which has been 30 years in the field of power converters. It provides the reliability, mini-size, light weight and high efficiency. PWM converter is working like high frequency sampling selector, which convert the changeable Signal into equivalent Pulse signal output. C-MARK digital amplifier adopt high frequency convert to get the high performance of the sound.
Durable
C-MARK digital amplifier will correct any possible error during operating, it can work under every situation. It can provide maximal power and safety, and durable using
Specifications ( DSP audio power amplifier )
Power:
8Ω:1000W×2
4Ω:2000W×2
2Ω:3000W×2
Bridged power:
16Ω:2000W
8Ω:4000W
4Ω:6000W
Bandwidth: 5Hz-28KHz
Damping factor(8Ω): >200 (20Hz-200Hz)
S/N(A-Weight 20Hz-200Hz): >108dB
Ascent slop(8Ω): 48V/uS(No input filter)
THD: <1% @ RMS POWER(<0.03% TYPICAL VALUE)
SMPTE: Max<0.9 % @ RMS POWER(<0.06% TYPICAL VALUE)
DIM 30: Max<0.9 % @ RMS POWER(<0.09% TYPICAL VALUE)
Gain/ sensitivity: 26dB-40dB Adjustable
Input impedance: 10KΩ each leg,electronically balanced to ground
Input: Balanced to ground,XLR female combo jack 6.3 mm, RJ45
Output: High current Neutrik 4-pole Speakon connectors
Stereo Or Mono:
CH1: pins 1+1- ; Ch1: pins 1+1-
Bridge:
CH1: pins 1+2+
Power supply Specifications
Voltage: AC100V-240V 50/60Hz
Other specification:
Heat radiation: compulsive fans(4 teperature controlled fans)
Input connector: Balanced XLR
Output connector: speakon connector
Control:two channel volume controller (front panel)
LED indicator: level indicator, malfunction indicator, overheat indicator
Dimension:483 * 445 * 44 mm W * D * H
Weight:11.5Kg
More information, please visit our website: .
