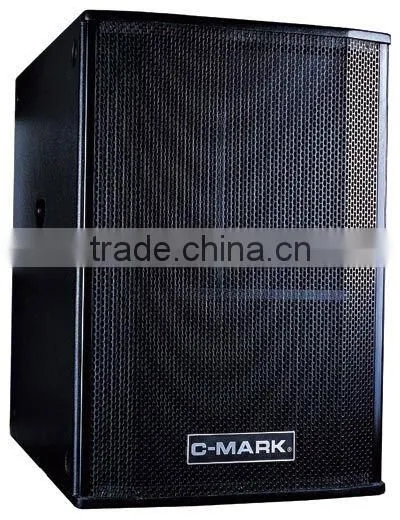

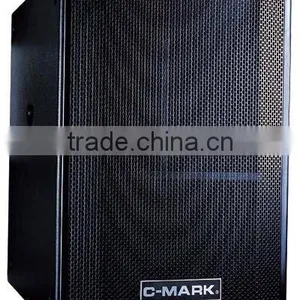

Help CenterC-Mark K18 Network 18' Subwoofer Active Loudspeaker
Related Products
-
C-Mark K15M Network 2 Way Active High Quality Audio SpeakersNegotiableMOQ: 1 Piece -
NEW MY2 Series Dual-channels Class d Amplifier ModuleNegotiableMOQ: 2 Pieces
-
HOT MY2 Series Dual-channels Amplifier ModuleNegotiableMOQ: 2 Pieces
-
K15 Network Active SpeakerNegotiableMOQ: 1
-
Pro Audio, SPL Network Active Speaker K15US$ 1 - 3,000MOQ: 2 Pieces
Specifications
1.Subwoofer network active loudspeaker2.CobraNet Port
3.Digital and Analogue signal Input
4.Remote Control
5.D amplifier
K Series Network Active Loudspeakers Features:
K Series Network Active Loudspeaker is a full range loudspeaker, which integrates the function of network transmission, remote control & monitoring, with built-in class D digital amplifier. It features high effective, outstanding sound, complete protection and perfect compatibility of electromagnetism. Users can monitor and adjust the loudspeaker remotely through a CAT5 line by computer. The loudspeaker can receive audio signal from network via the built-in CobraNet board. K Series Network Active Loudspeaker is suitable for 110V AC & 220V AC.
1) K12: two-way, 12” woofer + 44T tweeter
2) K15: three –way, 15” woofer + 75T mediant + 44T tweeter
3) K15M: two –way, 15” woofer + 44T tweeter
4) K30: three –way, 2*15” woofer + 75T mediant + 44T tweeter
5) K18: 18” subwoofer
6) It adopts CobraNet technology, with backup analogue input & CobraNet input.
7) Users can control and monitor the working temperature, loading, voltage and current of the loudspeaker remotely by PC, and achieve gains control & long distance power on and off .
8) By using one CAT5 line and RJ45 connectors, audio transmitting, controlling and monitoring can be achieved, very easy for installing and operating.
9) The mid-high and woofer is respectively driven by class D amps.
10) With complete protection(short-circuit protection, over current protection, over and under voltage protection, DC protection, power compression, temperature compression, long time power output limit, clipping limit)
11) The switching technology provides high reliability, small size, low weight and high efficiency. A PMC converter works as a high frequency sampler, converting the variable amplitude (audio) signal into an impulse sequence with average value equal to the audio input. The loudspeaker uses very high frequency conversion rate to obtain high performances.
12) Open choice of 110V±20%/220V±20% power supply.
13) Independent MCU control, independently running without computer.
14) User can control every channel independently.
15) All setup parameters can be stored in the memorizer.
16) Firmware is updatable via RS232 port.
17) Redundant network connection
Specifications:
K18
Low Output Power (4Ω/8KHz): 900W
Input Sensitivity: 0dB
Input Impedance : Line 20KΩ(balance) 10KΩ(unbalance)
Frequency Response: Low 38Hz-1KHz
Slope: 24dB
Sensitivity: 99dB
THD+N: 0.01%(1KHz,1W)
SPL:110dB (A weighted)
Power Supply: AC110V/AC220V (2 kinds power supply)
Fuse Tube Current: 12A(AC110V )6A(AC220V )
Any questions please contact me: Lily Ke
Tel:0086-0755-83926781
Mobile: 13922799670
