Specifications
active speaker1:network active speaker
2:professional active speaker
3:15 active speaker,SPL active speakers
4CE,RoHS,ISO
active speaker professional audio speaker active professional speaker 15 active speaker SPL active speaker
Contact your sales representative Sawean Su at 0086 15018515829, always be here. cn201432212 skype: saweansu
K15 loudspeaker can remote control and monitoring through a CAT5, network to transmit, perfect for the large performance and so on!!!!!
K Series Network Active speaker integrates function of network transmission, remote control & monitoring, with built-in class D digital amplifier, is a full range speaker. It features high effective, outstanding sound, complete protection and perfect compatibility of electromagnetism. Users can monitor and adjust the speaker remotely through a CAT5 line by computer. The speaker can receive audio signal from network via the built-in CobraNet board. K Series Network Active speaker is suitable for AC100-220V.

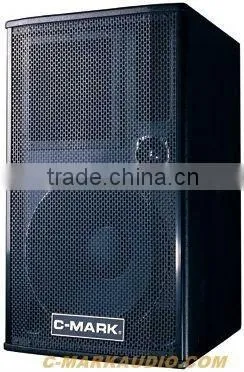

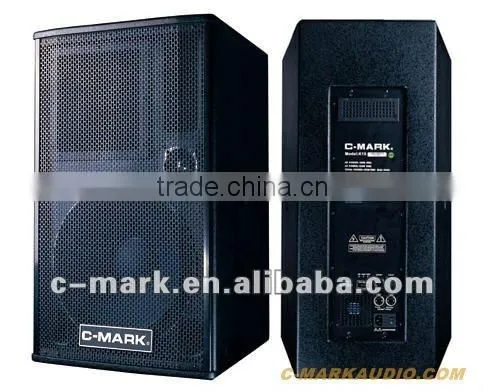

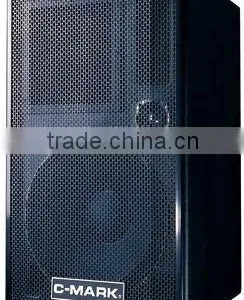

K15 network active speaker Details
1) K15: three –way, 15” woofer + 75T mediant + 44T tweeter
2) It adopts CobraNet technology, with backup analogue input & CobraNet input.
3) Users can control and monitor the working temperature, loading, voltage and current of the speaker remotely by PC, and achieve gains control & long distance power on and off .
4) By using one CAT5 line and RJ45 connectors, audio transmitting, controlling and monitoring can be achieved, very easy for installing and operating.
5) The mid-high and woofer is respectively driven by class D amps.
6) With complete protection(short-circuit protection, over current protection, over and under voltage protection, DC protection, power compression, temperature compression, long time power output limit, clipping limit)
7) K series network active speakers are based on switching technology and auto control technology that has been used for over 40 years. The switching technology provides high reliability, small size, low weight and high efficiency. A PMC converter works as a high frequency sampler, converting the variable amplitude (audio) signal into an impulse sequence with average value equal to the audio input. The speaker uses very high frequency conversion rate to obtain high performances.
8) Open choice of AC100-220V power supply.
9) Independent MCU control, independently running without computer.
10) User can control every channel independently.
11) All setup parameters can be stored in the memorizer.
12) Firmware is updatable via RS232 port.
13) Redundant network connection
K15 network active speaker Specifications:
Product Picture |
|
MODEL |
K15 |
COMPONENTS |
ZHi44T+Hi75T+LO15100A |
COMPONET POWER |
500W (low) |
150W (hi) | |
TOTAL RATED POWER (4Ω/8KHz) |
650W |
PEAK POWER |
1300W |
SENSITIVITY |
98dB (1m/1w) |
INPUT IMPEDANCE |
LINE 20KΩ(balance)10KΩ(unbalance) |
CROSSOVER |
2KHz |
FREQUENCY RESPONSE |
50-18KHz |
SLOPE |
24dB |
THD+N |
HI 0.03%(8KHz,1W) |
SPL |
129dB(1m) |
POWER SUPPLY |
AC100-220V (global power supply) |
DIMENSIONS(W×D×H) |
570*170*72 mm |
WEIGHT |
52.5kg(N.W) |
