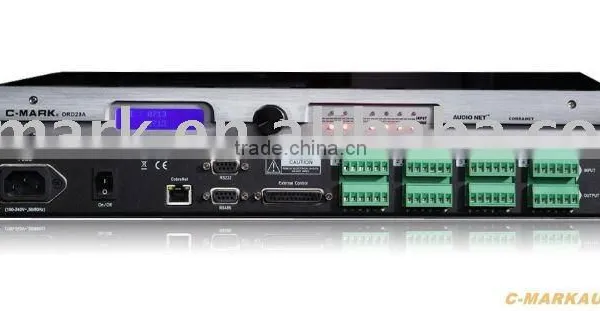

C-Mark DRD28A DSP Audio Processor
Introduction:
The DRD28A audio processor is a 1U device with multifunction of signal mixing, route, equalizer, etc, which simultaneously handles up to 8 channels analog signal with Line/Mic input.
With an internal 200 MIPS SHARC processor, it processes audio signals with 40-bit floating-point precision by using C-MARK RS1200 software.
Therefore DRD28A audio processor is capable of processing high quality audio signal. It has been widely applied in various occasions, including professional and entertainment applications.
Features:
1.DSP processor with powerful computation function;
2.Support the computation of 40-bit precision floating-point;
3.Various built-in audio computation processing modules;
4.8 analog inputs, 8 analog outputs;
5.The gain for each Mic/Line input channel is from 0dB to +66dB;
6.The 48V Phantom power supply of each channel can be controlled separately;
7.8 different DSP processing modes, which can be optionally set through front panel;
8.It can be configured in a PC based on Windows system, simple operation and easy to understand;
9.Suitable for various applications.
Functions:
Delays: 50 ms, 100 ms, 200 ms, 500 ms, 1000 ms;
Routers: 4×4, 8×8, 16×16;
Mixers: 4×1, 4×2, 4×4, 8×1, 8×2,8×4,8×8 mixers
Dynamics: Levelers, Compressors, Limiters, Noise Gates, Expanders, Clipper;
Signal Generator: Sine, White Noise, Pink noise;
Equalizers: Parametric Equalizers, Graphic Equalizers;
Filters: High-pass, Low-pass, Low-pass shelving, High-pass shelving;
Crossovers: 2-way, 3-way, 4-way;
Level Meters: Level Meters of 1-channel, 2-channels, 8-channels.
Application
Because c-mark DRD28A can provide users with high quality audio signals, it has a wide application, which can match the demand of sound reinforcement for most professional fields and social entertainment.
Technical specifications:
Analog signal input specifications
The analog signal input is transformed into 24-bit and 48 kHz digital signal
Frequency response: +/-0.2dB, 20Hz~20 kHz
Highest gain: +66dB
Phantom power supply: +48V DC (10mA/output)
Dynamic range: 103dBA, 101dB
Highest input level: +30dBu, balanced differential motion
Input impedance: 6.3kohms
Analog signal output specifications
24-bit and 48khz digital signal is transformed into analog signal output;
Frequency response: +/-0.2dB,20Hz~20kHz
THD+N: <0.05% @4dbu 1KHz;
Phantom power supply: +48V DC (10mA/input)
Dynamic range: 103dBA,101dB
Highest output level: +24dBu, balanced differential motion
Output impedance: 100ohms, able to drive at least 600ohm load
Other specifications
Power supply: 110-240V AC,40~60hz
RMS Power: less than 30W
Temperature: +5-40°C
Humidity: 5-85%
Size specifications
Size (length x width x height): 430mm x 291mm x 44.5mm (rack not included)
