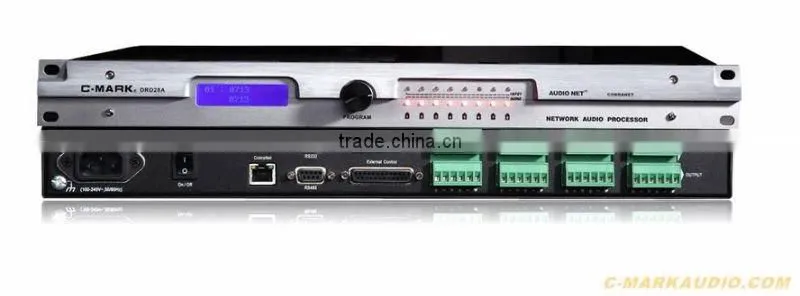

C-MARK AudioNet DSP Network Digital Processor
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
C-MARK
Model Number:
DRD28A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
C-MARK AUDIO NETWORK Audio Processor DRD28ANegotiableMOQ: 1 Piece -
C-MARK Network Audio Transmitter DRC0808AUS$ 1 - 3,000MOQ: 5 Pieces
-
Newest Network Audio ProcessorUS$ 1 - 3,000MOQ: 2 Pieces
-
U88 Network Audio Transmission ProcessorUS$ 1 - 3,000MOQ: 4 Pieces
-
C-MARK Professional Network Audio SwitchUS$ 1 - 3,000MOQ: 2 Pieces
Place of Origin
Guangdong, China
Brand Name
C-MARK
Model Number
DRD28A
Specifications
DSP processor with powerful computation function8 different DSP processing modes
8 analog inputs, 8 analog outputs
DRD28A audio processorThe DRD28A audio processor is a 1U device with multifunction of signal mixing, route, equalizer, etc, which simultaneously handles up to 8 channels analog signal with Line/Mic input.
With an internal 200 MIPS SHARC processor, it processes audio signals with 40-bit floating-point precision by using C-MARK RS1200 software.
Therefore DRD28A audio processor is capable of processing high quality audio signal. It has been widely applied in various occasions, including professional and entertainment applications.
C-MARK DRD28A FEATURES
DSP processor with powerful computation function
Support the computation of 40-bit precision floating-point
Various built-in audio computation processing modules
8 analog inputs, 8 analog outputs
The gain for each Mic/Line input channel is from 0dB to +66dB
The 48V Phantom power supply of each channel can be controlled separately
8 different DSP processing modes, which can be optionally set through front panel
It can be configured in a PC based on Windows system, simple operation and easy to understand
Suitable for various applications.
DSP PROCESSING FUNCTIONS
Delays: 50 ms, 100 ms, 200 ms, 500 ms, 1000 ms
Routers: 4×4, 8×8, 16×16
Mixers: 4×1, 4×2, 4×4, 8×1, 8×2,8×4,8×8 mixers
Dynamics: Levelers, Compressors, Limiters, Noise Gates, Expanders, Clipper
Signal Generator: Sine, White Noise, Pink noise
Equalizers: Parametric Equalizers, Graphic Equalizers
Filters: High-pass, Low-pass, Low-pass shelving, High-pass shelving
Crossovers: 2-way, 3-way, 4-way
Level Meters: Level Meters of 1-channel, 2-channels, 8-channels.
Application
Because c-mark DRD28A can provide users with high quality audio signals, it has a wide application, which can match the demand of sound reinforcement for most professional fields and social entertainment.
Technical specifications
Analog signal input specifications
The analog signal input is transformed into 24-bit and 48 kHz digital signal
Frequency response: +/-0.2dB, 20Hz~20 kHz
Highest gain: +66dB
Phantom power supply: +48V DC (10mA/output)
Dynamic range: 103dBA, 101dB
Highest input level: +30dBu, balanced differential motion
Input impedance: 6.3kohms
DSP processor with powerful computation function
Support the computation of 40-bit precision floating-point
Various built-in audio computation processing modules
8 analog inputs, 8 analog outputs
The gain for each Mic/Line input channel is from 0dB to +66dB
The 48V Phantom power supply of each channel can be controlled separately
8 different DSP processing modes, which can be optionally set through front panel
It can be configured in a PC based on Windows system, simple operation and easy to understand
Suitable for various applications.
DSP PROCESSING FUNCTIONS
Delays: 50 ms, 100 ms, 200 ms, 500 ms, 1000 ms
Routers: 4×4, 8×8, 16×16
Mixers: 4×1, 4×2, 4×4, 8×1, 8×2,8×4,8×8 mixers
Dynamics: Levelers, Compressors, Limiters, Noise Gates, Expanders, Clipper
Signal Generator: Sine, White Noise, Pink noise
Equalizers: Parametric Equalizers, Graphic Equalizers
Filters: High-pass, Low-pass, Low-pass shelving, High-pass shelving
Crossovers: 2-way, 3-way, 4-way
Level Meters: Level Meters of 1-channel, 2-channels, 8-channels.
Application
Because c-mark DRD28A can provide users with high quality audio signals, it has a wide application, which can match the demand of sound reinforcement for most professional fields and social entertainment.
Technical specifications
Analog signal input specifications
The analog signal input is transformed into 24-bit and 48 kHz digital signal
Frequency response: +/-0.2dB, 20Hz~20 kHz
Highest gain: +66dB
Phantom power supply: +48V DC (10mA/output)
Dynamic range: 103dBA, 101dB
Highest input level: +30dBu, balanced differential motion
Input impedance: 6.3kohms
Analog signal output specifications
24-bit and 48khz digital signal is transformed into analog signal output
Frequency response: +/-0.2dB,20Hz~20kHz
THD+N: <0.05% @4dbu 1KHz
Phantom power supply: +48V DC (10mA/input)
Dynamic range: 103dBA,101dB
Highest output level: +24dBu, balanced differential motion
Output impedance: 100ohms, able to drive at least 600ohm load
Other specifications
Power supply: 110-240V AC,40~60hz
RMS Power: less than 30W
Temperature: +5-40°C
Humidity: 5-85%
Size specifications
Size (length x width x height): 430mm x 291mm x 44.5mm (rack not included)
