Home > Products > Bearing Machine > BEARING TURNING LATHEMACHINE TOOL ZG80

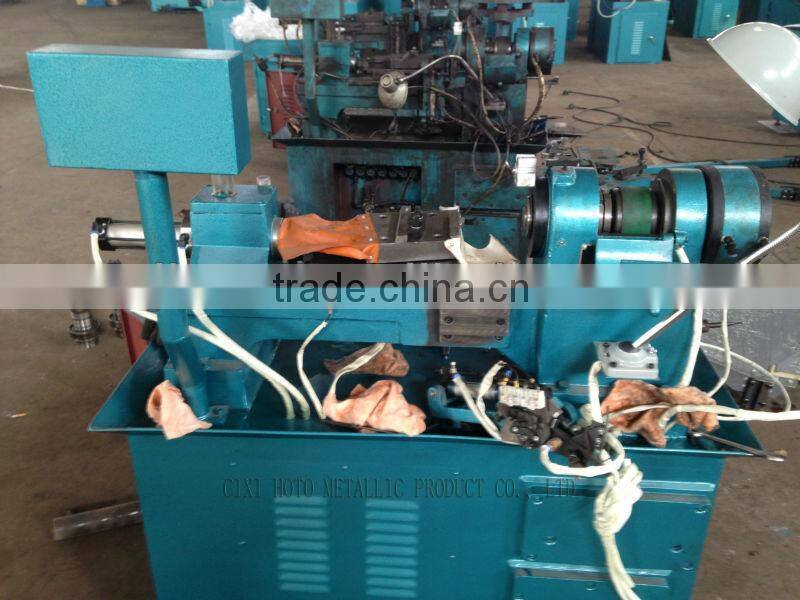

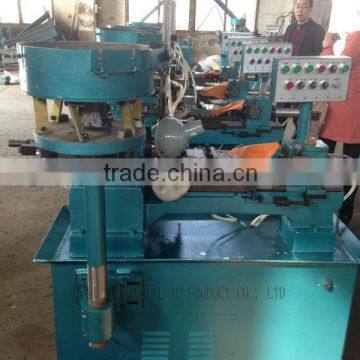

BEARING TURNING LATHEMACHINE TOOL ZG80
- Nningbo / Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | HOSALE | |
| Model Number | ZG20 ZG40 ZG60 ZG80 | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
ZG80 is mainly used for cutting for bearing ring and end of part in long tube material cutting .PLC computer control ,easy to usUses and characteristics of Machine Tool:
The machine tool is mainly used for cutting for bearing ring and end of part in long tube material cutting
PLC computer control is used for the machine that is electric and pneumatic in one, easy to use
high precision and good production efficiency
The technical parameters and specification of Machine tool
1,Outside diameter of pipe incision:φ15~φ100
2,Working times:15~40piece/minute
3,Cutting Precision:H±0.08mm
4,Part Precision Processed:
Roundness:≤0.01
Size Precision:IT6~IT8Level
5,Rotation speed of chief axis:400~800
6,Speed of feeding:
Horizontal Fast Forward/Reverse:4m/min
Lengthways working speed:0~2m/min(stepless)
7,Chief Electromotor:
Type:Y132(S)-4
Power:5.5KW
8,Dimension of Machine toll(L×W×H):1500×680×1100(mm)
9,Net weight of Machine tool:900kg
