China Value Brand Highland Concrete Pump Hydraulic Parts

Name: China Value Brand Highland Concrete Pump Hydraulic Parts
Brand: Highland
SKU: 114957549
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Highland

Model Number:

PV23

Ji'nan High Land Hydraulic Pump Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Highland

Model Number PV23

Theory Rotary Pump

Structure Piston Pump

Usage Oil

Power Hydraulic

Standard or Nonstandard Standard

Fuel Other

Pressure High Pressure

Application Metering

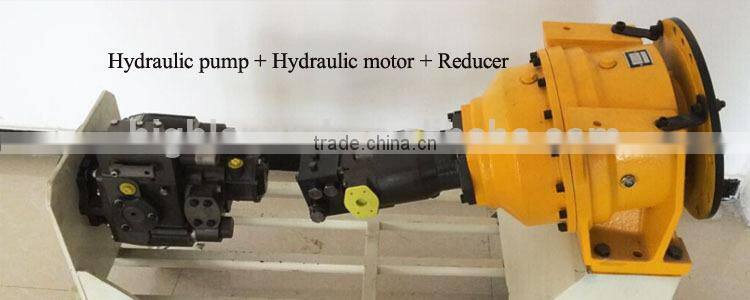

China value brand Highland concrete pump hydraulic parts

Application Range:

Paver,road roller,continous soil mixing machine,concrete pump, pharmaceutical.

Main Features
--Pass axis piston pump
--Hydrostatic Transmission
--Manual Servo and Hydraulic Variable control

Technical Parameters

Model	Max. Displacement(ml/r)	Pressure/Mpa		Max Speed /(r/min)	output Power (when at 10Mpa,1500r/min)/KW	Variable Pump			Fixed Displacement Motor
Model	Max. Displacement(ml/r)	Rated	Max	Max Speed /(r/min)	output Power (when at 10Mpa,1500r/min)/KW	Flow at Max. Speed /(L/min)	Charge Pump Displacement /(mL/r)	Weight/kg	Torque at 10Mpa	Weight/kg
20	33.3	21	35	3800	8.2	126.5	8.2	45	54.1	27
21	51.6	21	35	3500	12.7	180.6	12.3	53	84.1	34
22	69.8	21	35	3200	17.2	223.4	18.0	61	114.2	40
23	89.0	21	35	2900	21.9	258.1	18.0	78	144.3	47
