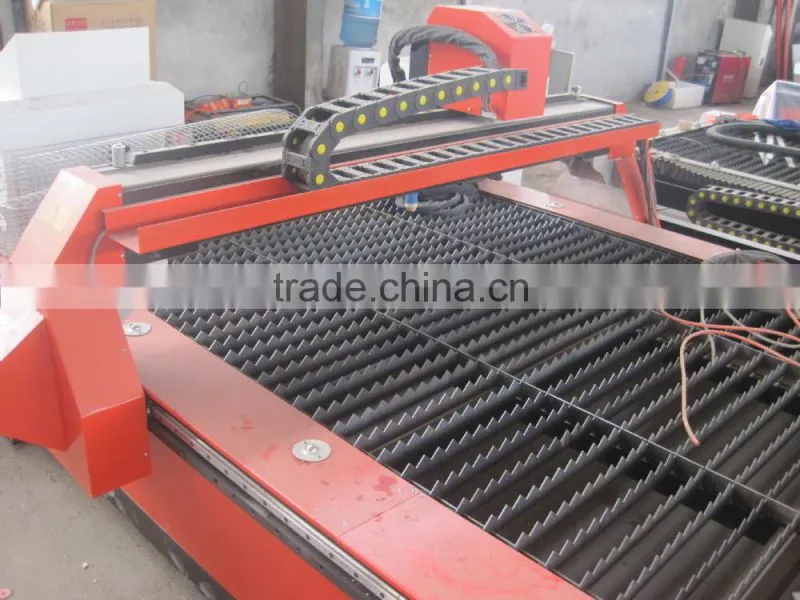

CM-1325 High Efficiency CNC Plasma Torch Height Control
- 300 Set / Sets per Month
- Qingdao
- T/T D/P D/A Credit Card
- REBOUND CNC plasma cutting machinery with bevel head 30mm
- REBOUND cnc detachable gantry plasma and flame cutting machinery sheet
- Best price cnc detachable plasma cutting machinery for gas-plasma cutting
- helical rack and pinion cnc detachable plasma cutting machinery automatic high safety level
- pump inside air detachable plasma cutting machinery sliding work bench
- solenoid valve for detachable plasma cutting machinery lokermann high safety level
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | CM |
Model Number: | CM-1325 | Voltage: | AC380V/50Hz,Three Phase | Rated Power: | 15KW |
Dimension(L*W*H): | 2.9X1.7X1.5m | Weight: | 1300KGS | Certification: | CE |
Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

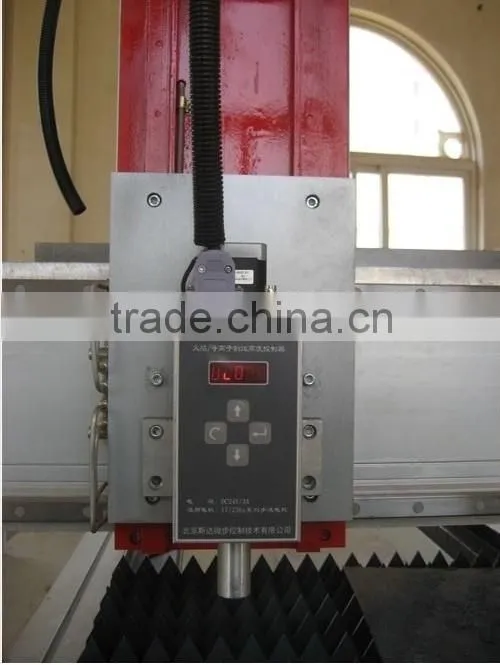

CM-1325 High Efficiency CNC Plasma Torch Height Control
Standard Features:
1 .The machine is all welded as seamless steel structure. Steady structure and long life time
2. High configuration, high cutting speed and precision.
3., Auto ARC starting. Steady performance.
4, Control system: DSP handset control, with USB interface
5. Cutting material: steel, copper, iron, aluminum, galvanized sheet, titanium plates, and so on.
6. File format: G-code
7, Suitable Software :ARTCUT, Type3, ArtCAM. Beihang Haier.
Applicable Materials: Steel, stainless steel, aluminium,copper and all other metals.
Teanical Specifications:
Model | CM-1325 |
Working Area | 1300X2500X100mm |
Power Source | 85A(USA Hypertherm Brand)(Optional) |
Control System | Start |
Precision | 0.07mm |
Positioning Accuracy | 0.02mm |
Repeatibility | 0.02mm |
Idling Speed | 50m/min |
Working Speed | 9m/min |
X,Y Axes Transmission | Helical Rack And Pinion |
Z Axes Transmission | Taiwan TBI Ballscrew |
Guide Rails | Taiwan Hiwin Linear Square Guide Rails |
Max Cutting Thickness | 16mm Steel |
Driving Motor | Sub-division Stepper Motors |
Driver | Yako2811 |
Command Code | G Code |
File Transfer | USB Interface |
Compatiable Software | Any software which can generate G code |
Optional Parts | Other power source such as 45A,65A and 105A, 200A,etc.China power Source are cheaper. Cutting Torch,Protection Cover |
Voltage | AC380V/50Hz,Three Phase |
Net Weight | 1300KGS |
Machine Parts:
Start Control System

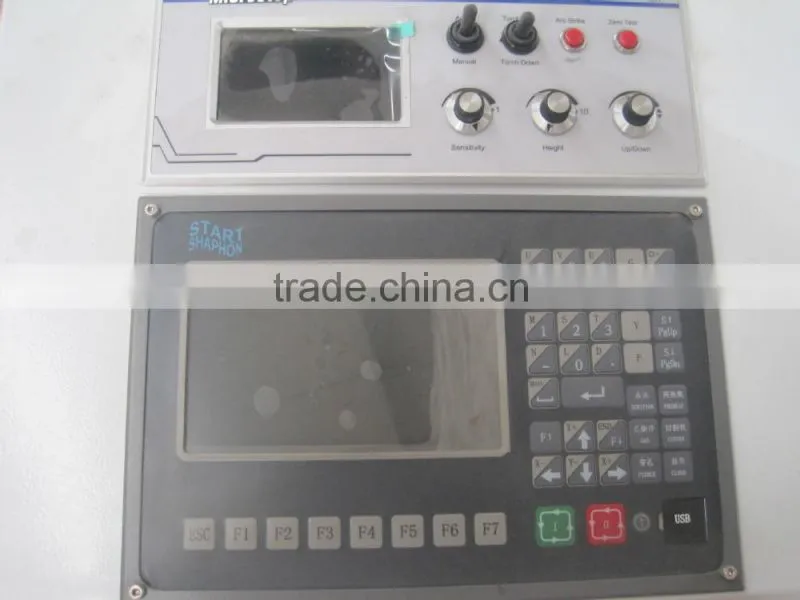

Start Control Panel

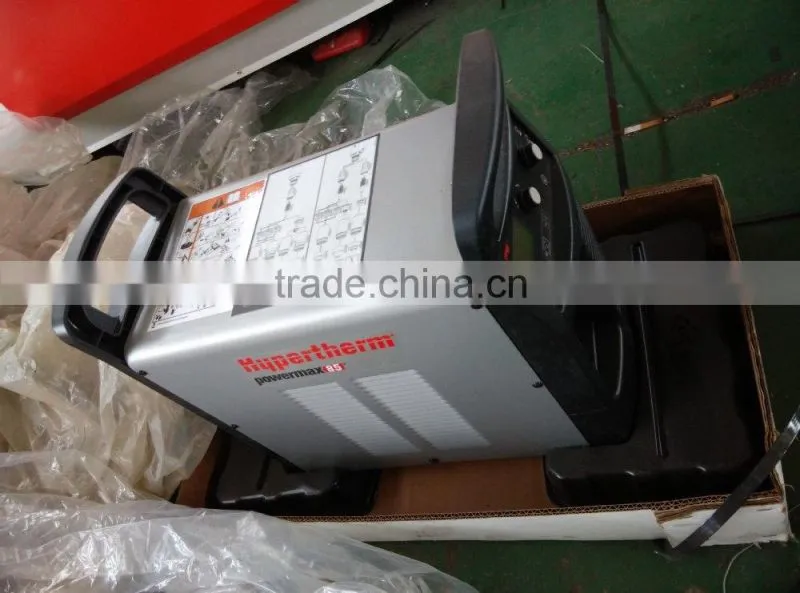

Hypertherm Power Source
Tooth Worktable
Cutting Torch

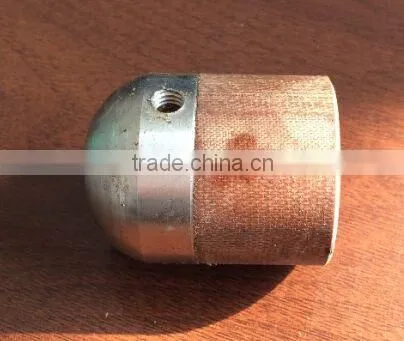

Cutting Mouth
Protective Sleeve

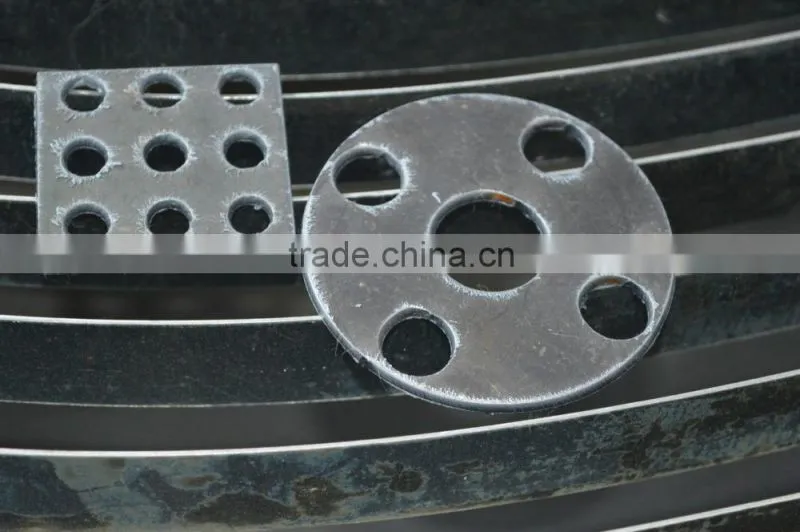

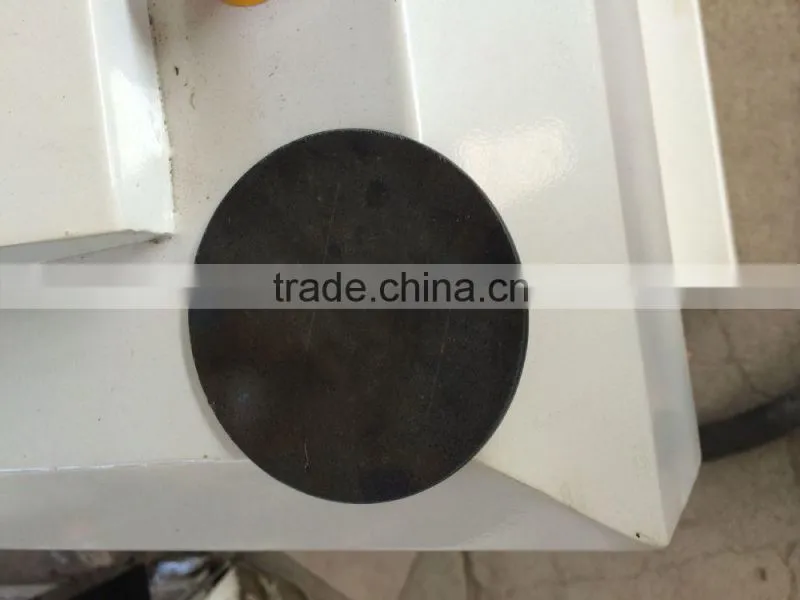

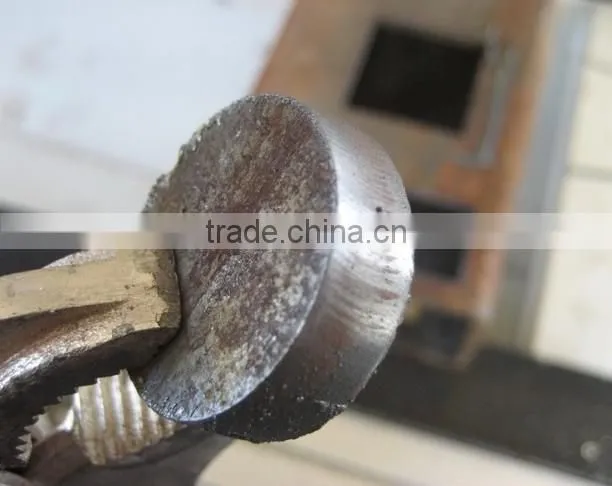

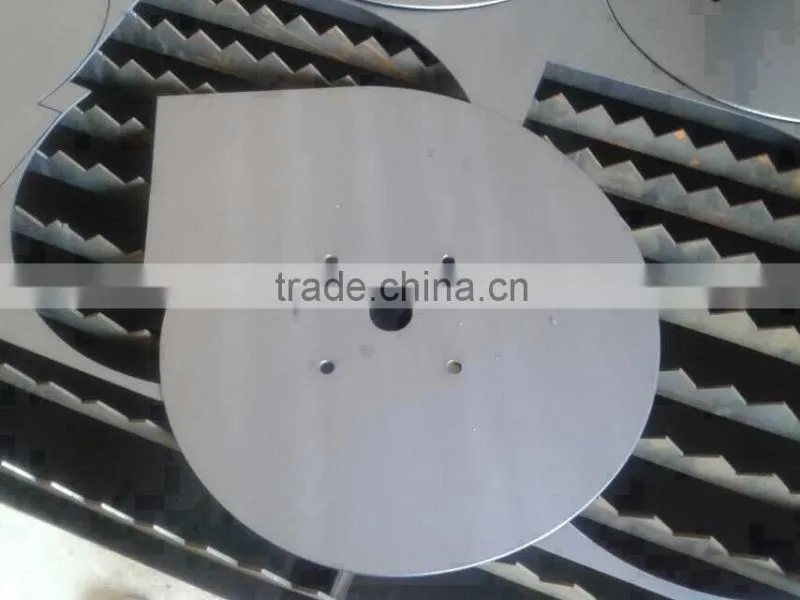

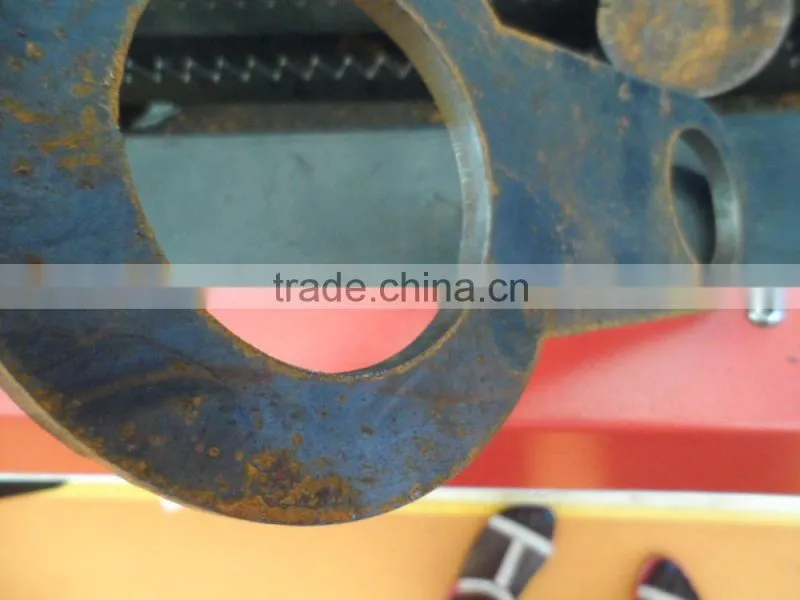

Samples:
