Specifications
CM-3030 High Precision CNC Brass Engraving Machine1.X,Y,Z Are Ballscrew
2.Hiwin Guide Rails
3.DSP System
4.Cast-iron

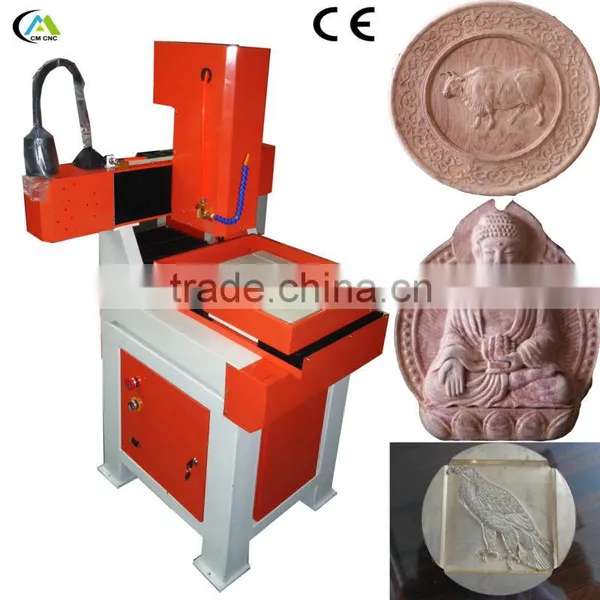

CM-3030 High Precision CNC Brass Engraving Machine
Standard Features:
1.Cast-iron machine structure.
2. Three axes adopt Hiwin linear square guide rails and ballscrew rod transmission, this can assure the machine has a high precision.
3. Compatibility software: CAD/CAM designing software such as Type3/Artcam/Castmate/Wentai.
4. Has the function of recarving after break point and power failure.
5. Adopt DSP system, the operator can operate this machine with only a DSP handle.
Applicable industries:
Advertisement: engraving and cutting various labels, number plate,acrylic,etc.
Artcraft: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials:
Wood, aluminum board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal
materials and light metal materials
Description |
Parameter |
X,Y Working Area |
300*300mm |
Z Working Area |
140mm |
Resolution |
+0.01mm |
Lathe Structure |
Cast-iron structure |
X,Y Structure |
Ballscrew transmission |
Z Structure |
Germanyrolling ball screw, Hiwin square guide rail |
Max. Idling Speed |
8m/min |
Spindle |
2.2KW |
Spindle Rotate Speed |
0-24000r/min, variable speed |
Inverter |
Fuling |
Working Voltage |
AC220V/50Hz,Single Phase |
Working Mode |
Sub-division Stepper Motor |
Driver |
Leadshine 542 |
Command |
G code,HPGL,U00,mmg,plt |
Operating System |
DSP with USB interface |
Diameter of cutter |
φ3.175-φ12.7mm |
Cooling Mode |
Water-cooling |
Work-holding |
T-slot |
Net Weight |
150KGS |
Gross Weight |
170KGS |
