Micro CNC Engraving Machine

US$ 2,000 - 6,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Model Number:

CM-2020

Licheng Chaomeng CNC Router Sales Department

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name CM

Model Number CM-2020

Specifications

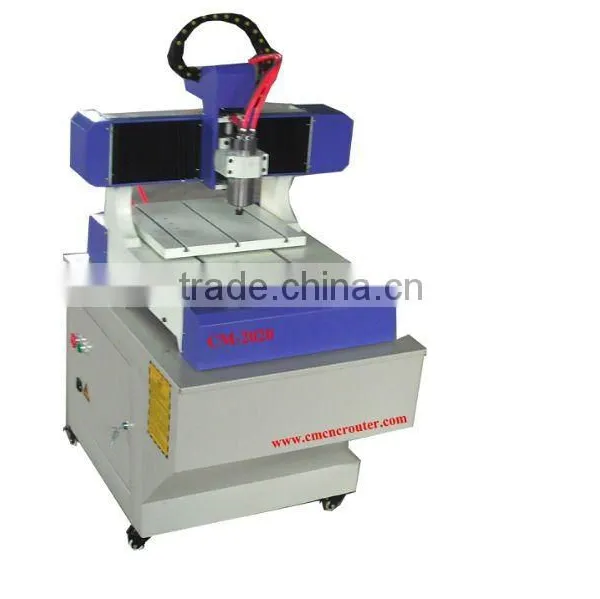

CM-2020 Micro CNC Engraving Machine
1.Ballscrew Drive System
2.Sunfar Inverter
3.Leedshine Motor
4.2.2KW Spindle

CM-2020 Micro CNC Engraving Machine

1. Inside control cabinet save much room . Totally smart and economical on price.

2. Ball screw rod transmission on XYZ gurantee the higher precision , more popular on thin engraving and acrylic cutting.

3. 1.5kw-6.0kw is optional

4. Square rails on XYZ are optional.

Applicable industries:

Advertisement: engraving and cutting various labels, number plate,acrylic,etc.

Art craft: engraving characters of any languages and graphics on gifts and souvenirs.

Applicable materials:

Wood, aluminum board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal

materials and light metal materials

Description	Parameter
X,Y Working Area	200*200mm
Z Working Area	140mm
Resolution	+0.01mm
Lathe Structure	Welded steel structure
X,Y Structure	Ballscrew transmission
Z Structure	Germanyrolling ball screw, Hiwin square guide rail
Max. Idling Speed	8m/min
Spindle	2.2KW
Spindle Rotate Speed	0-24000r/min, variable speed
Inverter	Sunfar
Working Voltage	AC220V/50Hz
Working Mode	Stepper
Driver	Leedshine 860
Command	G code,HPGL,U00,mmg,plt
Operating System	DSP with USB interface/Weihong
Diameter of cutter	φ3.175-φ12.7mm
Cooling Mode	Water-cooling
Work-holding	By Clamp
Net Weight	800KG
Gross Weight	850KG
