Specifications
CM-2040 Aluminium Profile For CNC Router1.Stepper Motor
2.Hiwin Square Guide Way
3.Rack And Pinion
4.Yako Driver

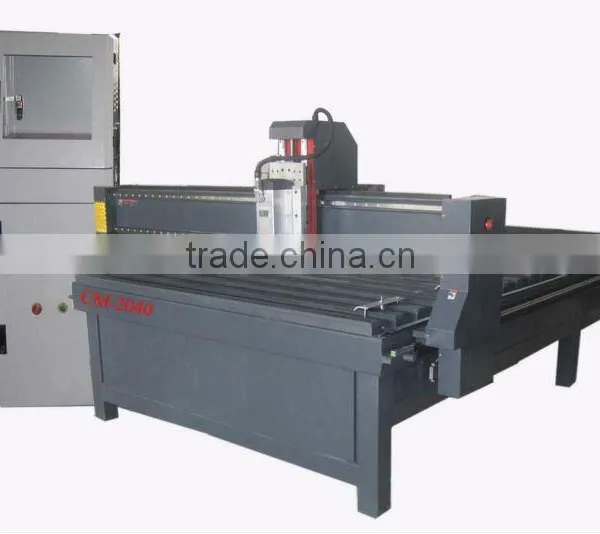

CM-2040 Aluminium Profile For CNC Router
Standard features:
- Whole machine is welded with steel tube, the stability is excellent, not easy to be deformed
- The machine adopts gantry movement, it can process any kinds of materials freely.
- Three axes adopt Taiwan Hiwin high precision square guide rails; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost. Z axis adopts Germany-made ball screw,with high precision and longevity.
- Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
- Has the function of re-carving after break point and power failure.
- Has the function of forecasting process time.
- Adopting advanced DSP system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
- Perfect oil-inject system makes maintenance much easier.
- Has duct-collect function. It will clean up the carving residuum and make the operations tidier and more convenient.
- Adopting water cooling system, it can provide good cooling effect when carving flinty materials.
Applicable industries:
Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
Advertisement: engraving and cutting various labels and number plate.

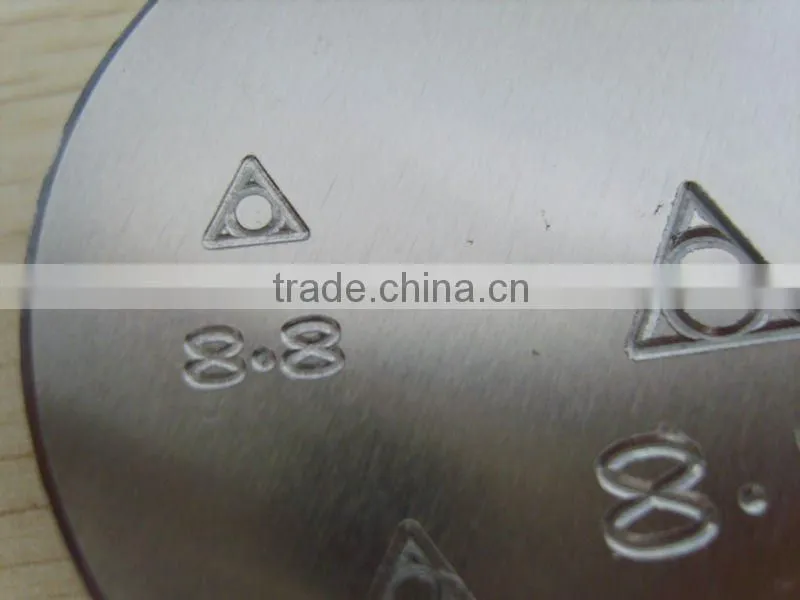

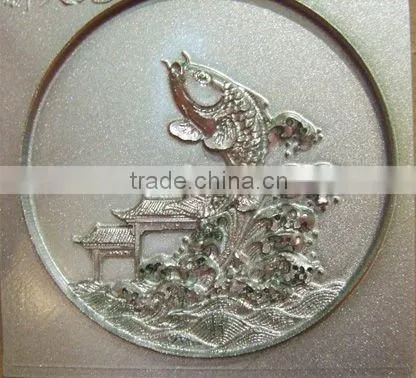

Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials:
Wood, aluminum board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.
Description |
Parameter |
X,Y Working Area |
2000*4000mm |
Z Working Area |
200mm |
Resolution |
0.01mm |
Lathe Structure |
Welded steel structure |
X,Y Structure |
Rack and pinion transmission |
Z Structure |
Germanyrolling ball screw, Hiwin square guide rail |
Max. Idling Speed |
35m/min |
Spindle |
3.0KW |
Spindle Rotate Speed |
0-24000r/min, variable speed |
Inverter |
Delta |
Working Voltage |
AC380V/50Hz |
Working Mode |
Stepper |
Driver |
YAKO |
Command |
G code,HPGL,U00,mmg,plt |
Operating System |
DSP with USB interface/Weihong |
Diameter of cutter |
φ3.175-φ12.7mm |
Cooling Mode |
Water-cooling |

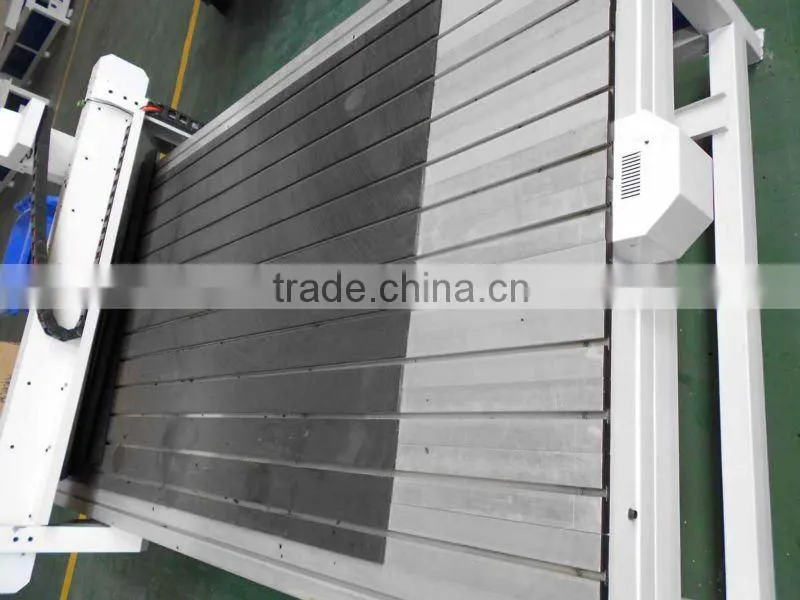

Work-holding |
By suction or Clamp |
Net Weight |
1550KG |
Gross Weight |
1650KG |
