Specifications
CM-6090 Hot Sale Advertisement Industry CNC Router1.X,Y,Z Are Ballscrew
2.Hiwin Square Guide Way
3.T-slot Table
4.DSP

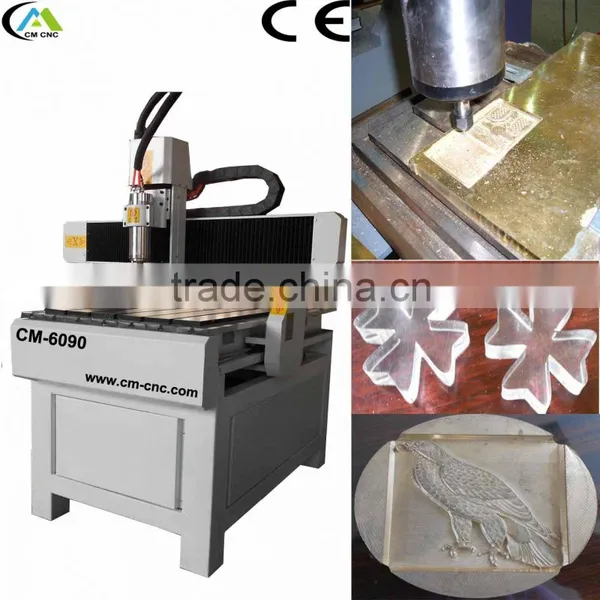

CM-6090 Hot Sale Advertisement Industry CNC Router
1.Totally smart and economical on price.
2. Ball screw rod transmission on XYZ gurantee the higher precision , more popular on thin engraving and acrylic cutting.
3. Cast-iron structure
5.DSP system
6. X,Y,Z axes all adopt Hiwin Linear Square Guide Way
Applicable industries:

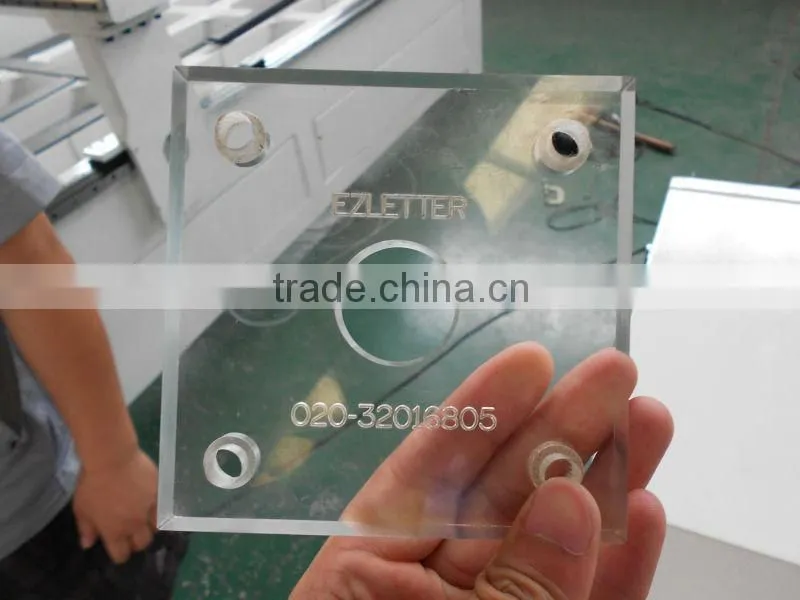

Advertisement: engraving and cutting various labels, number plate,acrylic,etc.

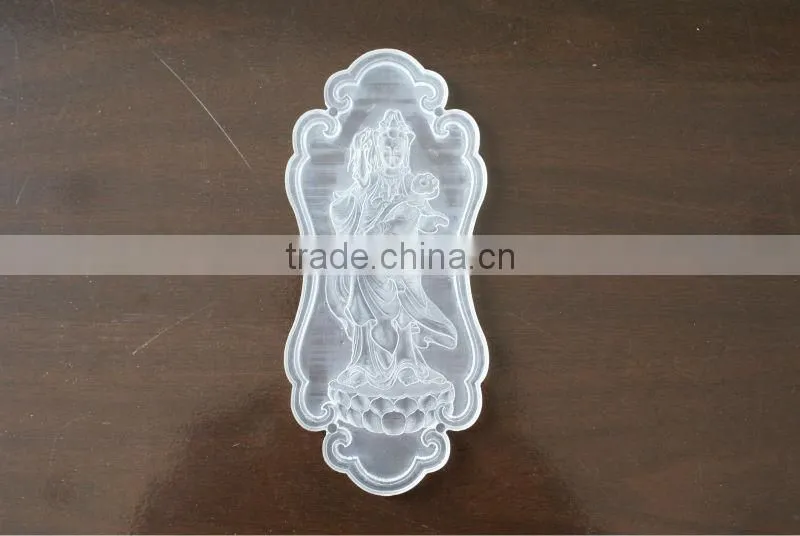

Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials:
Wood, aluminum board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal
materials and light metal materials
Description |
Parameter |
X,Y Working Area |
600*900mm |
Z Working Area |
110mm |
Resolution |
+0.01mm |
Lathe Structure |
Cast-iron structure |
X,Y Structure |
Ballscrew transmission |
Z Structure |
Germanyrolling ball screw, Hiwin square guide rail |
Max. Idling Speed |
8m/min |
Spindle |
2.2KW |
Spindle Rotate Speed |
0-24000r/min, variable speed |
Inverter |
Sunfar |
Working Voltage |
AC220V/50Hz,ingle |
Working Mode |
Stepper |
Driver |
Leedshine 860 |
Command |
G code,HPGL,U00,mmg,plt |
Operating System |
DSP with USB interface |
Diameter of cutter |
φ3.175-φ12.7mm |
Cooling Mode |
Water-cooling |
Work-holding |
T-slot |
Net Weight |
300KGS |
Gross Weight |
350KGS |
