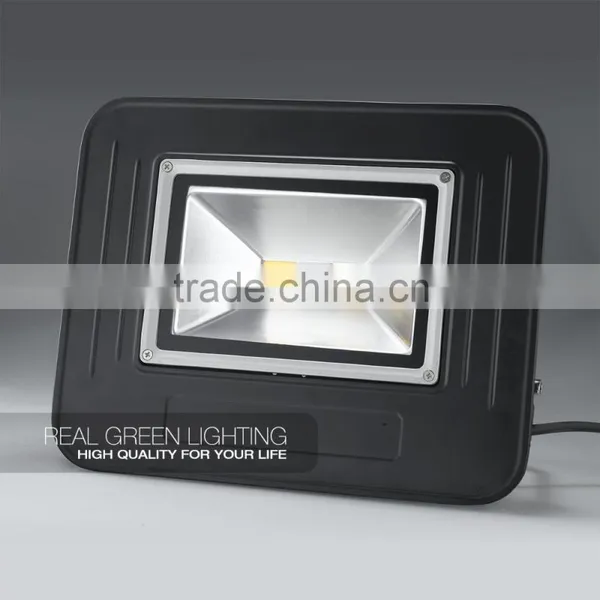

Specifications of COB Lighting 100W :
- Color consistency high, low-power, low-light decline, long lifespan, good brightness;
- Use RoHS aluminum, fully solve the LED heat transport problem, so that the lamp can keep in top working condition;
- High-precision constant current drive, which can extend the LED lifespan;
- Good material of lens to ensure the best light transmission;
- Exclusive lamp structure design, good appearance;
- No UV or IR radiation, Environment friendly.
- CE, RoHS approved.
- Light color is pure,solor rendering indes CRI>80
- No UV and IR radiation in the light source,safety and health.
- High efficient LED light source,energy saving in the same condition of light
- Durable 15 times life span to heincandescent lamp.
- Heat and Shock Resistant
- Energy Savings of as Much as 90% vs Traditional Lighting
- Reduce maintenance costs up to 90%, almost free of maintenance
- No UV or RF interference, NO Mercury
- Instant start, no noise, no flickering
- Very easy for replacement
- Suit for both indoor and outdoor using
- Free of charges on shipping back and forward of defective products
Paraments of COB Lighting 100W :
| Model No. | DSTGD-100(RGTGD-100) |
| Power : | 100w |
| Imput Voltage : | AC85V-265V |
| Output Voltage | DC24V-36V |
| Output Current : | 1500mA±5%*2 |
| Material : | Die-cast Aluminum+Tempered Glass |
| LED Type: | COB lighting |
| Driver : | Constant Current Power in CE |
Performance of COB Lighting 100W :
1.Min.Ambient Temp( °F): -30 °F
2.Max. Ambient Temp( °F):130 °F
3.Power Factor(PF): ≥0.97
4.Color Temp.:3000K-6000K
5.Conversion Efficiency: ≥86%
6.Protcet Class(IP Rating): IP67
Longevity of COB Lighting 100W:
Life Hours: ≥ 5000 hours
Warranty: 2 Years
- Led chip: High lumen Sanan chip-on-board chips delivery high lumens in high CRI for lighting performance and have 180 ° beam angle for lighting.
- Lifespan: Real Green led flood light has 50000 hours lifespan for using.
- Led Power Supply: Constant current Mean well series power supply will protect LED chip in correct current and voltage. It provide power factor >0.96 and power efficient > 86% characteristic to ensure power saving. Also it has over current, over voltage, over temperature and short circuit protection to ensure the long time lifespan.
- Lamp Housing : High quality aluminum alloy housing with spray painting surface finish, dust-resistant, moisture-proof, firm and durable. The lead time of manufacture is fast because of die-casting production process. Also the quality of the lamp housing is same.
- Glass Cover : High quality 4mm-5mm thickness heat-resistant temper glass will not splash when the flood light is exploded in wrong operation. It guarantees 100% light transmittance and uniform light distribution.

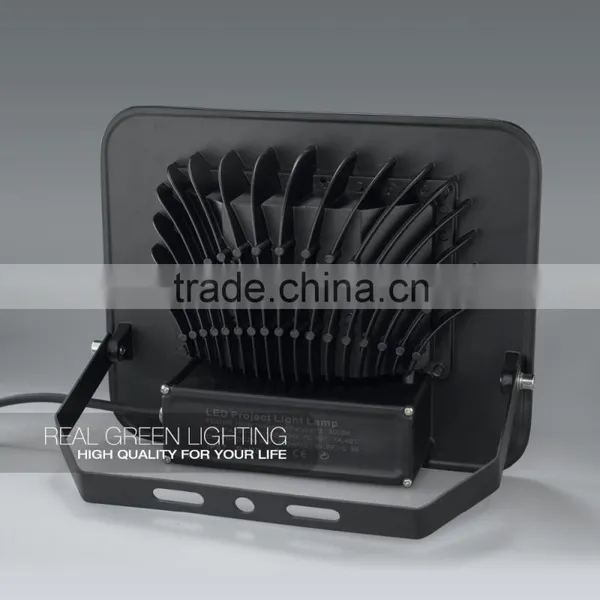

- Heat sink: Sufficient and thickness liner radiation fin are average distributed on the back of front head by die-casting technology with excellent thermal conductivity.
- IP67 waterproof structure : Every gap, screw and interface used the rubber ring with silica gel for waterproof purpose.
- Adjustable bracket: It can adjust 0-180 ° beam angle in horizontal direction for different application purpose.
- Warranty : Real Green offers 2-years product warranty for all products.
Do you know what is IP Rating ?
Ingress Protection (IP) ratings are developed by the European Committee for Electro Technical Standardization (NEMA IEC 60529 Degrees of Protection Provided by Enclosures - IP Code), specifying the environmental protection the enclosure provides.
The IP rating normally has two (or three) numbers:
- 1. Protection from solid objects or materials
- 2. Protection from liquids (water)
- 3. Protection against mechanical impacts (commonly omitted, the third number is not a part of IEC 60529)
Example - IP Rating
With the IP rating IP 54, 5 describes the level of protection from solid objects and 4 describes the level of protection from liquids.
An "X" can used for one of the digits if there is only one class of protection, i.e. IPX1 which addresses protection against vertically falling drops of water e.g. condensation..
IP First number - Protection against solid objects
0 |
No special protection |
1 |
Protected against solid objects over 50 mm, e.g. accidental touch by persons hands. |
2 |
Protected against solid objects over 12 mm, e.g. persons fingers. |
3 |
Protected against solid objects over 2.5 mm (tools and wires). |
4 |
Protected against solid objects over 1 mm (tools, wires, and small wires). |
5 |
Protected against dust limited ingress (no harmful deposit). |
6 |
Totally protected against dust. |
IP Second number - Protection against liquids
0 |
No protection. |
1 |
Protection against vertically falling drops of water e.g. condensation. |
2 |
Protection against direct sprays of water up to 15o from the vertical. |
3 |
Protected against direct sprays of water up to 60o from the vertical. |
4 |
Protection against water sprayed from all directions - limited ingress permitted. |
5 |
Protected against low pressure jets of water from all directions - limited ingress. |
6 |
Protected against temporary flooding of water, e.g. for use on ship decks - limited ingress permitted. |
7 |
Protected against the effect of immersion between 15 cm and 1 m. |
8 |
Protects against long periods of immersion under pressure. |

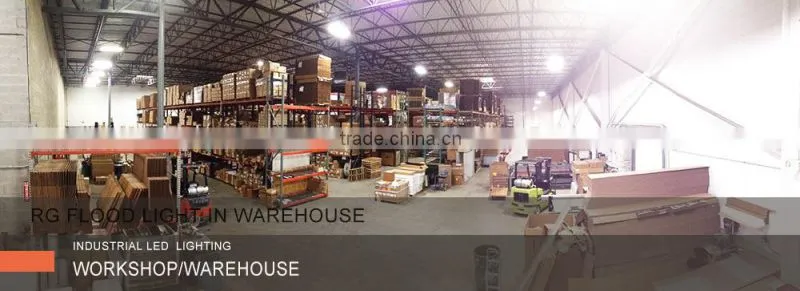

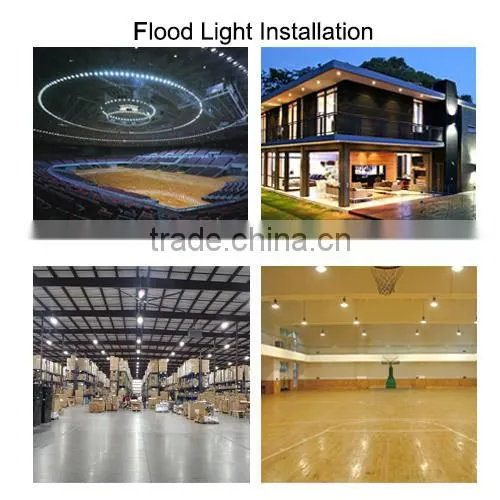

Where can we install the LED flood light ?
- Billboard, Outdoor advertisment,
- Golf course, Warehouse, Gymnasium,
- ship, Gas station, Lighting decortion,
- Square, Airport, Metro station,
- Subway station, Bus stop,
- Business area, Flyover, Car Parks …
Installation:Installation of led flood light
Cut two hole that the distance and the size like"A" in the framework .Lock the flood light with bolt and nut;
Rotating the light body to adjust the required cast light angle, install the hex-head screws tight;
Put the brown lines and blue lines connect to the "L" and "N", Yellow-green wire connected to ground line;
Connect the power before confirm connection is correct.
Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The wire must be passed 3C certification of three core cable, To reduce the risk of fire hazard.
3. It must be three-core cable connecting the floodlight, The brown line is used to connect the live wire, the blue line to the neutral wire, yellow-green line is the ground wire, Must pay attention to the wiring, don't take the wrong wire.
4. Wire copper is not exposed outside of the power terminal holes, To avoid a short circuit or get electrocuted.
5. Installation and removal products, please disconnect the light's power to avoid the risk of electric shock.
100w flood light size: 324*258*90 mm with quality carton packing.
We offer various shipping way for your conference,like UPS/COD/EMS/Fedex etc,.
5-10 days will be sent to the destination
Q1. Are you a trading company or factory?
We are the factory located in Jiangmen City,Guangdong Provience.
We acquired and worked to ISO9001 quality standard and we are the professional lighting manufacturer.

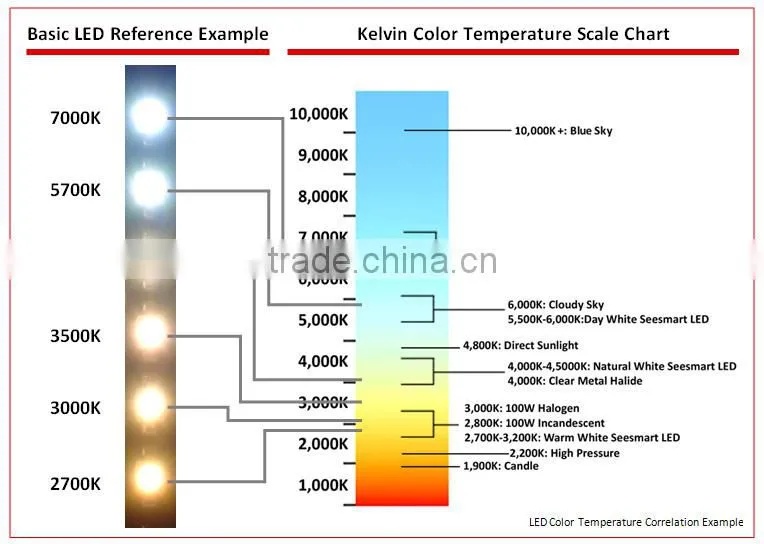

Q2.What is the color temperature?
LED Lighting offer ceilling lights in warm, natural, pure and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,the warmer the light given by the LED:
- Warm white = 2700K-3200K
- Natural white = 4000K-4500K
- Pure white = 5000K-5500K
- Cool white = 6000K-6500K
Q3.How do you ensure the quality of LED Flood Light?
We are strictly focus on quality control. All goods are 100% inspected before shipping, we do the test, including In-coming raw material test, sample test then bulk produce, waterproof test, functional test, burn-in test, appearance inspection.
Q4. How about the after-sales service?
On the one hand,we focus on the quality inspection,and on the other hands, we also focus on the customers experience, like after-sales service. We have professional stuff to solve all of your project question,and we offer 2 years of warranty. It ensure the quality within your using life time.
Q5.If there is any problem about flood light, can we reimbursement?
And if there is not the artificial problem we will reimburse within the warranty. Know more information you can contact with us any time on line.
