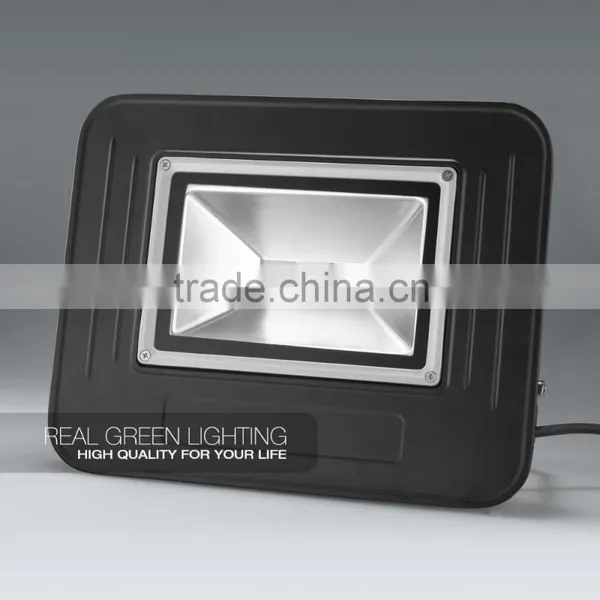

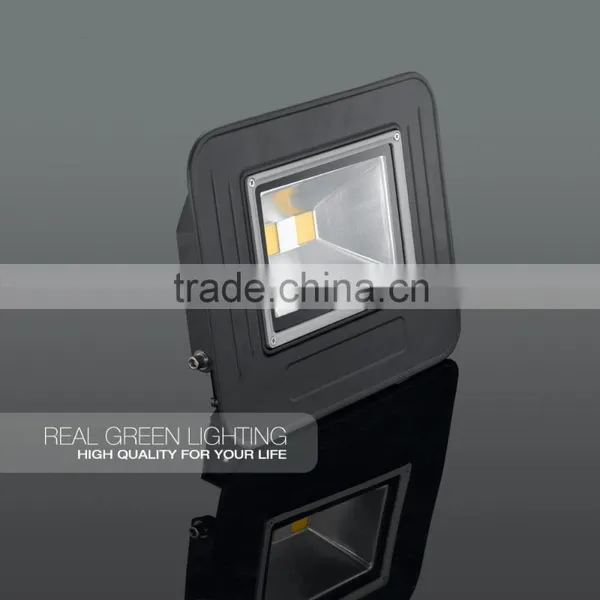

Specifications of Newly Design Ip67 100w LED Floodlight :
- Color consistency high, low-power, low-light decline, long lifespan, good brightness;
- Use RoHS aluminum, fully solve the LED heat transport problem, so that the lamp can keep in top working condition;
- High-precision constant current drive, which can extend the LED lifespan;
- Good material of lens to ensure the best light transmission;
- Exclusive lamp structure design, good appearance;
- No UV or IR radiation, Environment friendly.
- CE, RoHS approved.
- Light color is pure,solor rendering indes CRI>80
- No UV and IR radiation in the light source,safety and health.
- High efficient LED light source,energy saving in the same condition of light
- Durable 15 times life span to heincandescent lamp.
- Heat and Shock Resistant
- Energy Savings of as Much as 90% vs Traditional Lighting
- Reduce maintenance costs up to 90%, almost free of maintenance
- No UV or RF interference, NO Mercury
- Instant start, no noise, no flickering
- Very easy for replacement
- Suit for both indoor and outdoor using
- Free of charges on shipping back and forward of defective products
Paraments of Newly Design Ip67 100w LED Floodlight
| Model No. | DSTGD-100(RGTGD-100) |
| Power : | 100w |
| Imput Voltage : | AC85V-265V |
| Output Voltage | DC24V-36V |
| Output Current : | 1500mA±5%*2 |
| Material : | Die-cast Aluminum+Tempered Glass |
| LED Type: | COB lighting |
| Driver : | Constant Current Power in CE |
Performance of 100w led flood light :
1.Min.Ambient Temp( °F): -30 °F
2.Max. Ambient Temp( °F):130 °F
3.Power Factor(PF): ≥0.97
4.Color Temp.:3000K-6000K
5.Conversion Efficiency: ≥86%
6.Protcet Class(IP Rating): IP67
Longevity of 2015 project ip67 100w led flood light:
Life Hours: ≥ 5000 hours
Warranty: 2 Years
- Led chip: High lumen Sanan chip-on-board chips delivery high lumens in high CRI for lighting performance and have 180 ° beam angle for lighting.
- Lifespan: Real Green led flood light has 50000 hours lifespan for using.
- Led Power Supply: Constant current Mean well series power supply will protect LED chip in correct current and voltage. It provide power factor >0.96 and power efficient > 86% characteristic to ensure power saving. Also it has over current, over voltage, over temperature and short circuit protection to ensure the long time lifespan.
- Lamp Housing : High quality aluminum alloy housing with spray painting surface finish, dust-resistant, moisture-proof, firm and durable. The lead time of manufacture is fast because of die-casting production process. Also the quality of the lamp housing is same.
- Glass Cover : High quality 4mm-5mm thickness heat-resistant temper glass will not splash when the flood light is exploded in wrong operation. It guarantees 100% light transmittance and uniform light distribution.

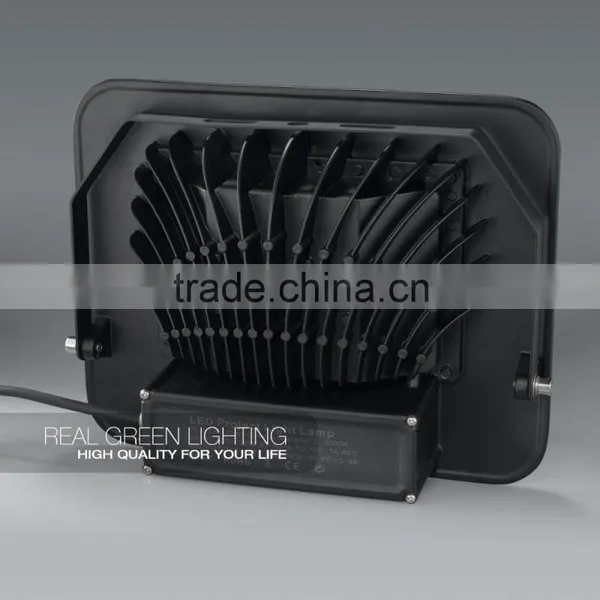

- Heat sink: Sufficient and thickness liner radiation fin are average distributed on the back of front head by die-casting technology with excellent thermal conductivity.
- IP67 waterproof structure : Every gap, screw and interface used the rubber ring with silica gel for waterproof purpose.
- Adjustable bracket: It can adjust 0-180 ° beam angle in horizontal direction for different application purpose.
- Warranty : Real Green offers 2-years product warranty for all products.
Do you know what is IP Rating ?
Ingress Protection (IP) ratings are developed by the European Committee for Electro Technical Standardization (NEMA IEC 60529 Degrees of Protection Provided by Enclosures - IP Code), specifying the environmental protection the enclosure provides.
The IP rating normally has two (or three) numbers:
- 1. Protection from solid objects or materials
- 2. Protection from liquids (water)
- 3. Protection against mechanical impacts (commonly omitted, the third number is not a part of IEC 60529)
Example - IP Rating
With the IP rating IP 54, 5 describes the level of protection from solid objects and 4 describes the level of protection from liquids.
An "X" can used for one of the digits if there is only one class of protection, i.e. IPX1 which addresses protection against vertically falling drops of water e.g. condensation..
IP First number - Protection against solid objects
0 |
No special protection |
1 |
Protected against solid objects over 50 mm, e.g. accidental touch by persons hands. |
2 |
Protected against solid objects over 12 mm, e.g. persons fingers. |
3 |
Protected against solid objects over 2.5 mm (tools and wires). |
4 |
Protected against solid objects over 1 mm (tools, wires, and small wires). |
5 |
Protected against dust limited ingress (no harmful deposit). |
6 |
Totally protected against dust. |
IP Second number - Protection against liquids
0 |
No protection. |
1 |
Protection against vertically falling drops of water e.g. condensation. |
2 |
Protection against direct sprays of water up to 15o from the vertical. |
3 |
Protected against direct sprays of water up to 60o from the vertical. |
4 |
Protection against water sprayed from all directions - limited ingress permitted. |
5 |
Protected against low pressure jets of water from all directions - limited ingress. |
6 |
Protected against temporary flooding of water, e.g. for use on ship decks - limited ingress permitted. |
7 |
Protected against the effect of immersion between 15 cm and 1 m. |
8 |
Protects against long periods of immersion under pressure. |
Where can we install the LED flood light ?
- Billboard, Outdoor advertisment,
- Golf course, Warehouse, Gymnasium,
- ship, Gas station, Lighting decortion,
- Square, Airport, Metro station,
- Subway station, Bus stop,
- Business area, Flyover, Car Parks …
Installation:Installation of led flood light
Cut two hole that the distance and the size like"A" in the framework .Lock the flood light with bolt and nut;
Rotating the light body to adjust the required cast light angle, install the hex-head screws tight;
Put the brown lines and blue lines connect to the "L" and "N", Yellow-green wire connected to ground line;
Connect the power before confirm connection is correct.
Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The wire must be passed 3C certification of three core cable, To reduce the risk of fire hazard.
3. It must be three-core cable connecting the floodlight, The brown line is used to connect the live wire, the blue line to the neutral wire, yellow-green line is the ground wire, Must pay attention to the wiring, don't take the wrong wire.
4. Wire copper is not exposed outside of the power terminal holes, To avoid a short circuit or get electrocuted.
5. Installation and removal products, please disconnect the light's power to avoid the risk of electric shock.
100w flood light size: 324*258*90 mm with quality carton packing.
We offer various shipping way for your conference,like UPS/COD/EMS/Fedex etc,.
5-10 days will be sent to the destination
Returns:
We will refund you if you return the items within 15 days of your receipt of the items for any artificialreasons. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund.
Know more about the details of returns can be contact us on line.
Warranty:
We offer 2 years of warranty as after-sales service,it can ensure the lighting within your using life time.
Once there is some problem need to be returned,you should contact us ASAP.
Afer you give the items to the logistic company, please send us the tracking number. Once we receive the items,we will repair or exchange them ASAP.
Feedback:
Your satisfaction and positive feedback is very important to us. lease leave positive feedback if you are satisfied with our items and services. If you have any problems with our items or services,please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.
Q1. Are you a trading company or factory?
We are the factory located in Jiangmen City,Guangdong Provience.
We acquired and worked to ISO9001 quality standard and we are the professional lighting manufacturer.
Q2.How to get the sample from you?
You can contact us by trademanager, email, skype, etc.,and tell us what products do you need.
Q3.How do you ensure the quality of LED Flood Light?
We are strictly focus on quality control. All goods are 100% inspected before shipping, we do the test, including In-coming raw material test, sample test then bulk produce, waterproof test, functional test, burn-in test, appearance inspection.
Q4. How about the after-sales service?
On the one hand,we focus on the quality inspection,and on the other hands, we also focus on the customers experience, like after-sales service. We have professional stuff to solve all of your project question,and we offer 2 years of warranty. It ensure the quality within your using life time.
Q5.If there is any problem about flood light, can we reimbursement?
And if there is not the artificial problem we will reimburse within the warranty. Know more information you can contact with us any time on line.
