The LED Downlight series products is formed by lower power LEDs and quality Alumnium Alloy,the light design has combined the more flexible installation and high CRI.
To acheive high heat dissipation transmittance,we quality bonding LED chips base.
COB LED is a new form,further lighting and more higher lumen are its great features.
It has the advantages in energy-saving,environment conservative,long serice life,suitable for commercial decoration,inhouse decoration etc,.
Parameters of COB IP44 CE ROHS LED Down Light :
|
BASIC PARAMETERS
| |||
| Brand Name: | Real Green | Item No.: | RG-COBAA002 |
| Power: | 20W | LED Type: | COB Lighting |
| Emitting Color: | Warm White /Cool White | Material: | AluminumAlloy+PC |
| Shape Size: | ø200*H90mm | Beam Angel(°): | 120° |
| Cutout: | ø180mm | IP Rating: | IP44 |
| Lumen : | 1350 LM | Lifespan: | ≥ 50,000 Hr |
| SDCM Range: | <7.5 | Color Temp.: | 3000K-6500K |
|
ELECTRICAL PARAMETERS
| |||
| Input Voltage(V): | AC100V-265V | Working Temperature(℃): | -30 ℃- 70 ℃ |
| Power Factor(PF): | ≥0.97 | Driver: | Constant Current Driver |
| Color Rendering Index(CRI): | >85 | Warranty: | 2 Years |
| PACKING PARAMETERS | |||
| Packing Size(Carton): | 180*190*80mm | Packing Details: |
Cartion box with plastic bag |
| No.: | Power | Size |
| RG-COBTD005 | 5W | ø100*H60 |
| RG-COBTD010 | 10W | ø130*H80 |
| RG-COBTD015 | 15W | ø170*H85 |
| RG-COBTD020 | 20W | ø200*H90 |
| RG-COBTD025 | 25W | ø200*H90 |
Key Features of Real Green LED Downlight :
1.Beautiful and durable by using imported materials
2.Quality driver,we adapte quality IC material,guarantee no flicking
3.High luminous efficiency,CRI>80,suitable for inhouse using
4.Efficient and energy saving ,long lifespan.
LED Downlight 20W Cool White features:
v Long lifespan
v High efficiency LED constant current driver
v Uniform lighting
v Quick start
v No stroboscopic effect, no glare
v High heat-sink efficiency: scientific design to help heat sink
v No mercury or lead; environmental protection
v Save 60% energy than traditional light
v CE, EMC and RoHS certified
More special details why you choose our products!
Led chip: High lumen chip-on-board chips in high CRI for lighting performance and have 120 ° beam angle for lighting.
Lifespan: led flood light has 50000 hours lifespan for using.
Led Power Supply: Constant current Mean well series power supply will protect LED chip in correct current and voltage. It provide power factor >0.96 and power efficient > 86% characteristic to ensure power saving. Also it has over current, over voltage, over temperature and short circuit protection to ensure the long time lifespan.
Lamp Housing: High quality aluminum alloy housing with spray painting surface finish, dust-resistant, moisture-proof, firm and durable. The lead time of manufacture is fast because of die-casting production process. Also the quality of the lamp housing is same.
Driver:
- High power constant current power supply,ensure safety,stability,high efficiency,energy saving,lamp bead is not affected by voltage fluctuation.
- International Input Range:AC90V-265V
- Driver Application:LED Lighting
- In international standard
Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The wire must be passed 3C certification of three core cable, To reduce the risk of fire hazard.
3. Wire copper is not exposed outside of the power terminal holes, To avoid a short circuit or get electrocuted.
4. Installation and removal products, please disconnect the light's power to avoid the risk of electric shock.

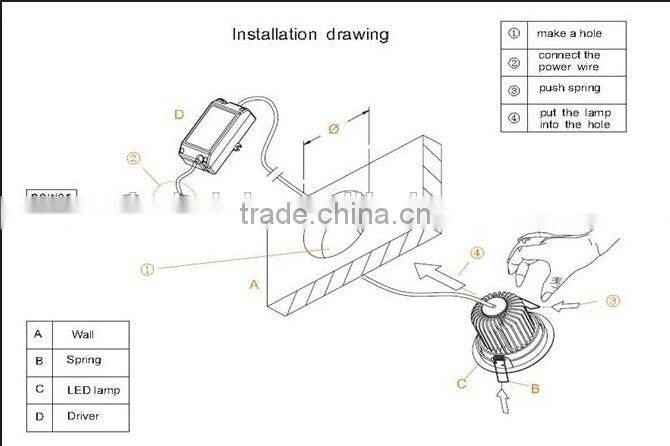

Acutions: All of this install instruction is for conference, please install the down light in professional instruction.
Strong carton packing with foam and plastic bag,and also customized.
We offer various shipping way for your conference,like UPS/COD/EMS/Fedex etc,.
5-10 days will be sent to the destination
Package of LED Downlight:
| Unit: | 1 unit/box |
| Outer Package: | 180*190*80mm |
We will get the most discounted price from our forwarder to help you save the cost.
Trade Terms:
1. Payment: By T/T, 30% before production, 70% before delivering (Western Union or Paypal also welcome)
2.Pls contact us promptly if there is something problem with payment.3 Shipping freight is quoted on your request.
4 Shipping port: JIANGMEN / GUANGZHOU / SHENZHEN, Mainland China.
5 Discounts are offered based on order quantities.
Services:
1. Your inquiry related to our products or prices will be replied within 24hrs.
2. Well-trained and experienced staffs to help you locate the products in your best interest.
3. OEM & ODM production available.
4. 2 years warranty.
Feedback:
Your satisfaction and positive feedback is very important to us.
lease leave positive feedback if you are satisfied with our items and services.
If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback.
We will do our best to solve any problems and provide you with the best customer services.
Q: Can i visit your factory?
Yes, our factory only 45min train to Guangzhou,Guangdong Pronvince,the new enconomic centre of China.
Q:What is the best route from Guangzhou to your factory?
The inner-city train is the best ,only 40min from Guangzhou South railway station to our factory.
Q:How to controll your quality?
Each products will do 48 hours Aging Test before shipment.
Q: Is the sample available?
Yes, we are very glad to make the samples for your test.
Q:How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive
