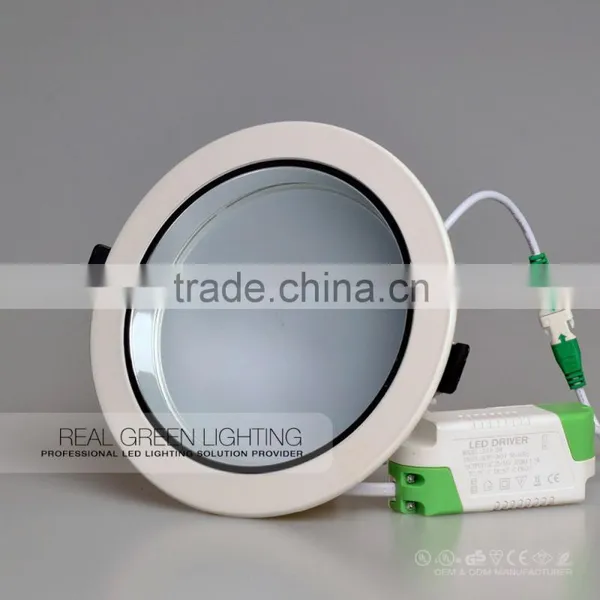

25W Input Voltage 85V-265V led downlight 8 Inch downlight 25W Cool White 3000K-6500K Aluminum Alloy Lamp Body Quality Down Light
- 3000 Unit / Units per Month
- Jiangmen Port Shenzhen Port Guangzhou Port
- T/T Credit Card
- Linear Downlight
- LED Downlight
- A Anti-glare Waterproof IP65 led downlight project waterproof spots light 5w 7w 9w 12w downlight
- A Surface Mounted Led Downlight AC LED Bulb Outdoor Adjustable Led Downlight Lamp Spot Light
- Dimmable IP65 LED Down Lights (30-300W)
- Emergency IP65 LED Down Lights (30-300W)
Product Details
LED Light Source: | SMD5730 | Warranty(Years): | 2 | Input Voltage(V): | AC85V-265V |
Lamp Power(W): | 25 | Lamp Luminous Flux(lm): | 1750 | Lamp Luminous Efficiency(lm/w): | 70 |
Color Temperature(CCT): | Cool White | Working Temperature(℃): | -30, 50 | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Aluminum Alloy | IP Rating: | IP65 | Certification: | CE |
Model Number: | DS-SMDTD025 | Place of Origin: | Guangdong, China | Brand Name: | Real Green |
Product Description
Specification:
Model No.: | DS-SMDTD025 |
Power : | 25W |
Shape Size: | ø230*H85mm |
Cutout: | ø210mm |
LED Source: | SMD5730 |
CRI: | ≥80 |
Lumen: | 1750 lm |
Input Voltage: | AC100V~265V |
Output Voltage: | DC24V~26V |
Performance of Aluminum Alloy Lamp Body Quality Down Light :
1.Min.Ambient Temp( °F): -30 °F
2.Max. Ambient Temp( °F):130 °F
3.Power Factor(PF): ≥ 0.529
4.Color Temp.:3000K-6000K
5.Conversion Efficiency: ≥86%
6.Protcet Class(IP Rating): IP65
Dimensions of 3.5 Inch LED Down Light 25W
1.Product Height:85mm
2.Product Outcut:ø210
3.Packing Size:230*95*230mm
Longevity of Aluminum Alloy Lamp Body Quality Down Light:
Life Hours: ≥ 5000 hours
Warranty: 2 Years
Aluminum Alloy Lamp Body Quality Down Light features:
v Long lifespan
v High efficiency LED constant current driver
v Uniform lighting
v Quick start
v No stroboscopic effect, no glare
v High heat-sink efficiency: scientific design to help heat sink
v No mercury or lead; environmental protection
v Save 60% energy than traditional light
v CE, EMC and RoHS certified
More special details why you choose our products!
Led chip: High lumen chip-on-board chips in high CRI for lighting performance and have 120 ° beam angle for lighting.
Lifespan: led flood light has 50000 hours lifespan for using.
Led Power Supply: Constant current Mean well series power supply will protect LED chip in correct current and voltage. It provide power factor >0.96 and power efficient > 86% characteristic to ensure power saving. Also it has over current, over voltage, over temperature and short circuit protection to ensure the long time lifespan.
Lamp Housing: High quality aluminum alloy housing with spray painting surface finish, dust-resistant, moisture-proof, firm and durable. The lead time of manufacture is fast because of die-casting production process. Also the quality of the lamp housing is same.
Glass Cover: High quality 4mm-5mm thickness heat-resistant temper glass will not splash when the flood light is exploded in wrong operation. It guarantees 100% light transmittance and uniform light distribution.
Electrial and Photmetric Test Report For Light Source (25w cool white)
Test Condition:
Analysis Instrument: STARSPEC SSP33112-D
Test Lab:Test Lab
Temprature: 25.0 ℃
R.H: 60.0%
TESTING RESULT
Photometric Parameters Luminous Flex: 1809.38 lm Luminous Efficiency: 75.71 lm/W | Colorimetric Parameters Chromaticity Coordinates: X=0.3187 Y=0.3285 Color Temp.: 6185 K Dominant Wavelength: 448.10 nm Color Tolerance: 9.99 SDCM |
Electrical Paraments Voltage : 221.80 V Wattage: 23.90W | Electrical Paraments CURRENT:0.203A Power Factor: 0.529 |
Easy to install:
Fedex/UPS/DHL/EMS we accept.
The shipping charge according to the weight of products.
The packing of LED Flood Light included foam and plastic bag, ensure without damage in the shipping.
The pattern of packing can be customized.
