Product Details
Place of Origin | Henan, China | Brand Name | SHENGGONG | |
Model Number | HGY5316TFC | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

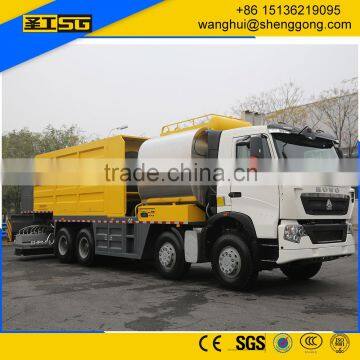

Road Construction Machinery, Synchronous Fiber Chip Sealer for Road Construction
Application
The synchronous fiber chip seal technology is a new road construction and maintenance technology. The fiber are cut and crushed with exclusive process and spread evenly in different directions and overlapped with each other between the two even layers of asphalt binders, which knits mesh structure to stick to the asphalt binders. This structure effectively improves the comprehensive mechanical properties of sealing coat in tensile, shear, crush resistance and shock resistance. The principle is just like that a piece of protective mesh of high elasticity and high strength is paved between the surface coat (1-coat asphalt+1-coat fiber+1-coat asphalt+1-coat aggregates) and new roadbed, or on the original road surface.
HGY5316TFC fiber chip sealer is improved based on our GYXKT0812 synchronous fiber chip sealer and to apply asphalt, fiber and aggregates synchronously. With optimized mechanical design and humanized operation design, it is stable and reliable in road construction and maintenance.
Technical Parameters
Model | HGY5316TFC |
Chassis model | ZZ1317N366HD1 |
Power of auxiliary engine | 70kW |
Spray width | 3800mm |
Spray volume | 0.5-3.0kg/m2 |
Aggregates size | 3-25mm |
Asphalt tank capacity | 6m3 |
Aggregates hopper capacity | 12m3 |
Heater | imported diesel heater |
Spray medium | Base asphalt, modified asphalt, cutback asphalt, emulsion |
Length of fiber | 30/60/120mm |
Fiber-spray volume | 30-90g/m2 |
Overall dimensions | L×W×H=11980×2500×3810mm |
Advantages
1. Asphalt, fiber and aggregate could be applied synchronously in one machine.
2. It can spread aggregate without lifting the hopper, which is convenient to the constructions in culverts, under bridges and at the curves.
3. It is completely controlled by electrical system of high-level automation. The spreader’s expansion and spray bar width can be flexibly controlled automatically. It can accurately calculate the asphalt spray volume in construction.
4. Double-screw charger conveys aggregates to the discharging unit of 3800mm wide, then aggregates fall down by roller friction and self gravity over distribution plate to keep uniform spreading effects.
5. It reduces the work intensity of construction, saves labor power, decreases the construction costs and improves working efficiency and quality.
6. The whole machine runs stably and makes uniform spray and spreading. It can flexibly regulate asphalt spray width, fiber spray width and aggregates spreading width.
7. Sound and durable corrosion-resistant insulation layer keeps heat preservation index no more than 20oC/8h.
Construction case
OUR SERVICE
>> 24 hours online-service, welcome your inquiry and business visiting !
>> 12 Months warranty !
>> Free overseas technical training !
>> Skype: eva_hlcable
COMPANY INFORMATION
Henan Gaoyuan Road Maintenance Equipment Co.,Ltd (Gaoyuan SG), has been specializing the development and production of road maintenance machinery since its foundation in April, 2004.
There are 5 production workshops and 1 paint finishing workshop with more than 270 units of various kinds of production and inspection equipment.
As a National Hi and New Technology Enterprise Gaoyuan SG is widely recognized as one of the TOP 3 domestic suppliers of road maintenance equipment and vehicles which also has provincial technology research center with 23 invention patents among 108 practical patents and several research results which fills in the blanks for relative areas.
In 2012, we established China's first laboratory for road maintenance equipment.
NATIONAL HIGH-WAY MAINTENANCE EQUIPMENT ENGINEERING LAB
FACTORY & WORKSHOP
Q1: Are you trading company or manufacturer?
A: We are factory.
Q2: How long is your delivery time?
Generally it is 7-10 days if the goods are in stock, or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q3: What warranty coverage do I have?
Our machine has one-year warranty; We will provide free overseas technical training for exported products.
Q4: What is your term of payment?
A: 30% T/T in advance, balance before shipment, or 30% T/T in advance, 70% L/C at sight.
