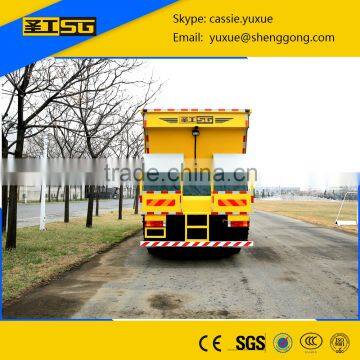

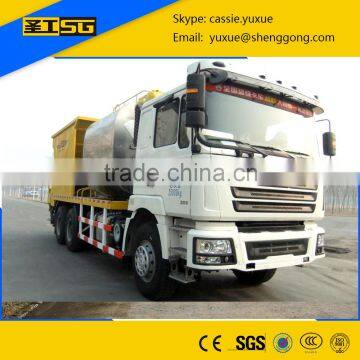

Help CenterStone Spreader Machine,8500L Asphalt Tank and 12000L Stone Tank Asphalt Macadam Spreader
Related Products
-
Stone Spreader Machine,8500L Asphalt Tank and 14000L Stone Tank Asphalt Macadam SpreaderUS$ 138,000 - 250,000MOQ: 1 Set -
Fiber Asphalt Chip Sealer Truck For SaleUS$ 138,000 - 250,000MOQ: 1 Set
-
Trailor,Stone Spreader Machine,Asphalt MacadamSpreaderUS$ 100,000 - 150,000MOQ: 1 Set
-
Quality Bitumen Chip Sealer , Asphalt Chip SealerNegotiableMOQ: 1 Set
-
Hot Sale Bitumen Chip Sealer, Chip Sealer, Asphalt Chip SealerNegotiableMOQ: 1 Set
HGY5313TFC Synchronous Chip Sealer
1.Main Technical Parameters
Model No. |
HGY5313TFC |
Chassis Model: |
HOWO ZZ3317N4667D1 |
Auxiliary Engine power |
70kw |
Spray Width: |
3800mm/4200mm |
Asphalt Spray Volume: |
0.2-3.0kg/m2 (only asphalt); 1.5-3.0kg/m2 (rubber asphalt) 0.5-3.0kg/m2 (with chips) |
Aggregates Size: |
2-22 L/ m2 |
Asphalt Tank Volume: |
8.5m3 |
Hopper Volume: |
12m3 |
Heating mode: |
Imported Diesel Burner |
Spray Media: |
Base asphalt, modified bitumen, cutback, emulsion, asphalt rubber |
Weight: |
31000kg |
Dimension (L×W× H): |
11980×2500×3860(mm) |
2.Main configurations of Key Components
NO. |
ITEM |
BRAND |
PLACE OF ORIGIN |
1 |
Asphalt pump |
Johnson |
Belgium |
2 |
Heat oil pump |
Johnson |
Belgium |
3 |
Auxiliary engine |
YUCHAI |
China |
4 |
Flywheel coupling of internal combustion engine |
KTR |
Germany |
5 |
Reducer |
GUOMAO |
China |
6 |
PLC |
YINGZHIJIE |
China |
7 |
Velocity radar |
Dickey-john |
USA |
8 |
Touch screen |
XINJIE |
China |
9 |
Low-voltage controller |
Schneider |
Germany |
10 |
Encoder |
Koyo |
Japan |
11 |
Burner |
Riello |
Italy |
12 |
Cycloid motor |
Eaton |
China |
13 |
Cycloid motor |
Sauer-Danfoss/White |
USA |
14 |
Lead limit switch |
Omron |
Japan |
15 |
Hydraulic cylinder |
Steady |
China |
16 |
Load sensitive pump |
REXROH |
Germany |
17 |
Solenoid directional valve |
ARGO-HYTOS |
Germany |
18 |
One-way throttle valve |
TOGNELLA |
Italy |
19 |
Radiator |
AKG |
Germany |
20 |
Two-way valve |
HC |
Italy |
21 |
Plug-in spillover valve |
HYDRAFORCE |
USA |
22 |
Double directional throttle valve |
TOGNELLA |
Italy |
23 |
Double directional governing valve |
TOGNELLA |
Italy |
24 |
Double directional hydraulic lock |
Oreo |
Italy |
25 |
Adjustable priority dividing valve |
Bondioli & Pavesi |
Italy |
26 |
Gear pump |
TJ |
China |
27 |
Integrated valve bank |
HYDRAFORCE |
USA |
3. Advantages
- It is no need of lifting the hopper to spread aggregates. It is appropriate to construction in culverts, under bridges and at the curves.
- This equipment applies special PLC of high automation level to calculate and control asphalt spray amount precisely and stably.
- Double spiral distributor drives the aggregates to 3800mm wide lower hopper. In this process, the aggregates drop by gravity and friction against roller without going through the distributor plate, which guarantees uniform spreading.
- It reduces labor intensity, saves human labors, reduces construction costs and improves working efficiency and quality.
- It realizes stable performance and uniform spray. Asphalt and aggregates spreading width can be regulated freely.
- Sound insulation layer of anti-corrosion and durability keeps insulation index no more than 20oC per 8 hours.
- It can spray all kinds of asphalt and spread aggregates of sizes from 3mm to 25mm.
- Precise processing nozzles are applied to keep uniform and reliable spray effect.
- Humanized design realizes both remote control and on-site operation, which makes operation convenient.
- Perfect combination of electric control system and hydraulic pressure-constant system realizes spray beginning as soon as the truck starting.
- HD camera behind the machine could make the driver operate the machine in cabin.
- Asphalt can be heated during driving, which saves time in construction.
- Spreader and feed gate are all automatically controlled
- The equipment is improved on the basis of construction to keep reliable performance, easy operation and high ratio of price to performance.

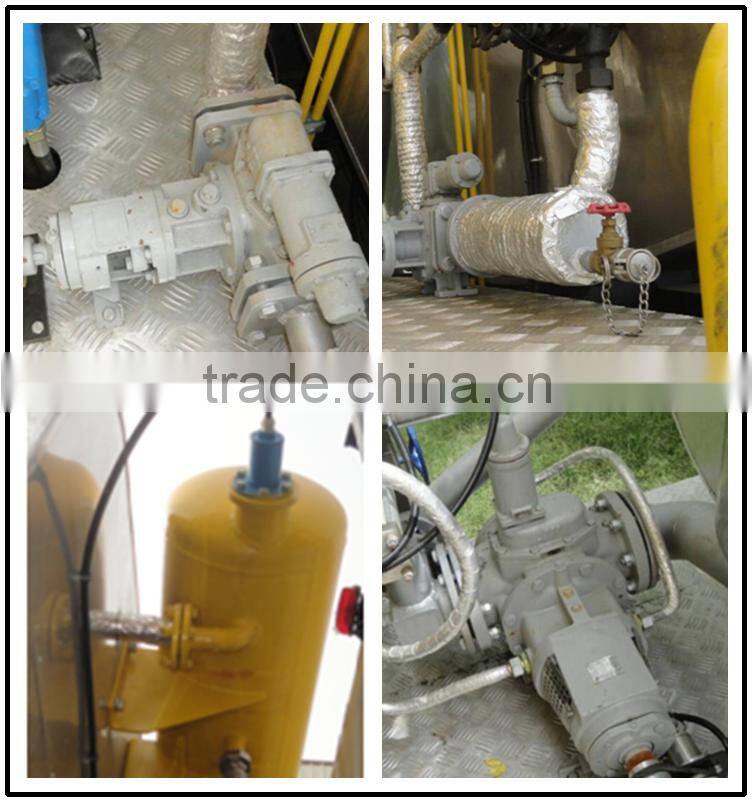

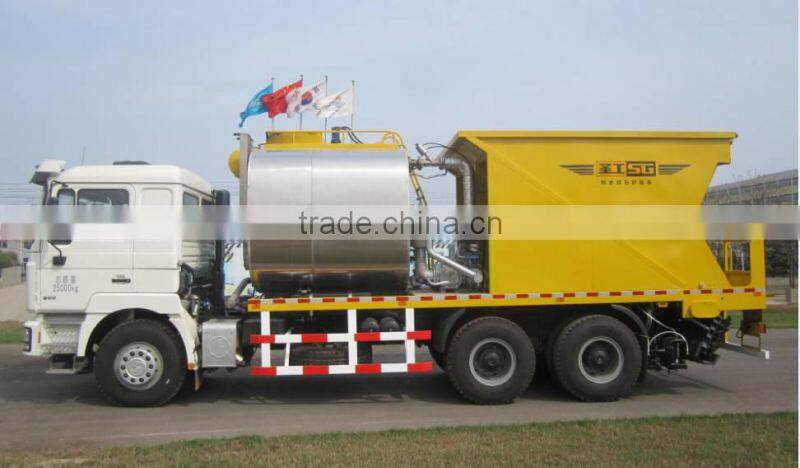

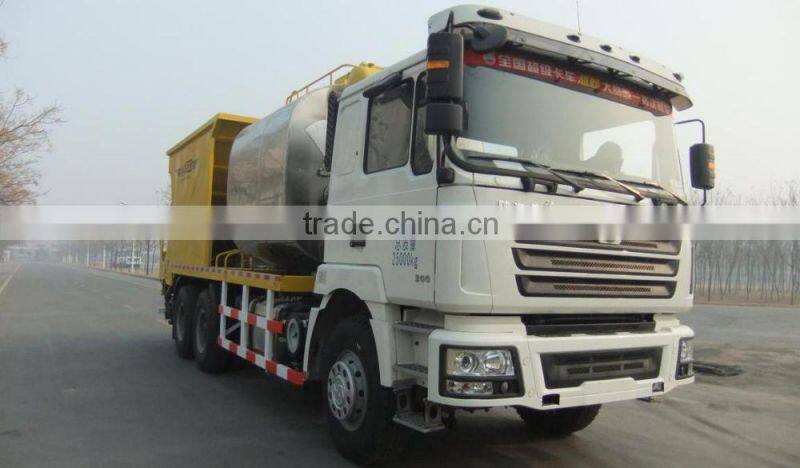

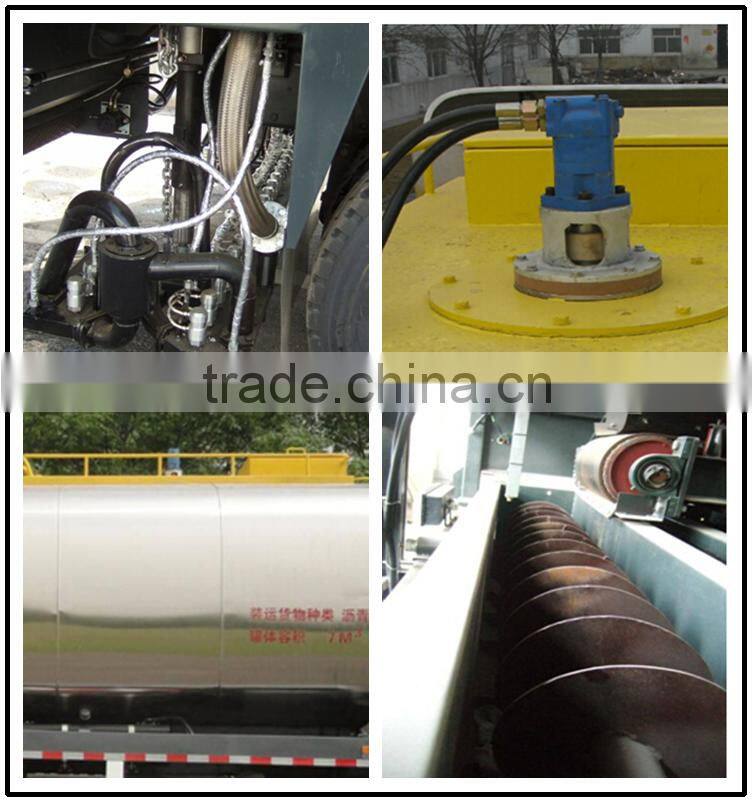

4.Product Details

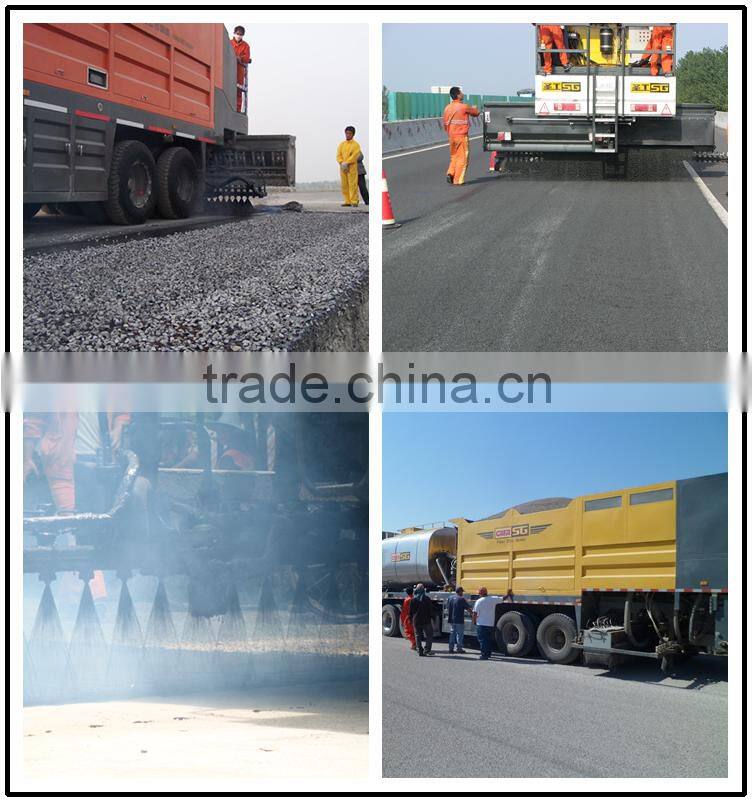

5.Project
24hours service, welcome your inquiry and business visiting !
Professional and experienced technical service after sales !
Skype: cassie.yuxue
Henan Gaoyuan Road Maintenance Equipment Co., Ltd. was founded in 2004, and now is the TOP 3 companies in road maintenance equipment manufacturing industry of China.
We supply automatic asphalt distributor, synchronous chip sealer, fiber chip sealer, asphalt emulsion plant, intelligent asphalt rubber plant, intelligent micro surfacing paver (slurry paver), snow removal machines, municipal road management equipment and more to customers all over the world.
National High-way Maintenance Equipment Engineering Lab
In September 2012, the national development and reform commission approved the projectof National High-way Maintenance Equipment Engineering Lab. Two Lab buildings, a pilot workshop, the machine performance test site were built.By purchasing test equipment, test platform, multi-function integrated tester, It improved laboratory hardware advantage, strengthened personnel training and technology exchange, solved the technical bottleneck existed in road maintenance equipment.
Certification
Q1: What are the terms of payment.
A:Generally, L/C orT/T are used. that is 30% prepayent and 70% before shipping.
Q2: What about the warranty.
A;It would be for 12 months.
