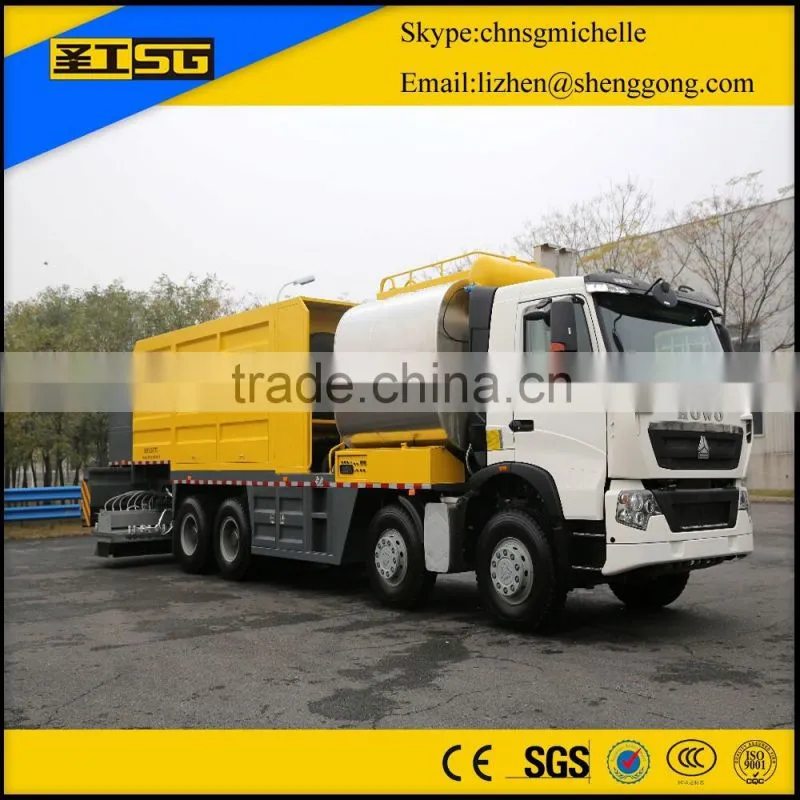

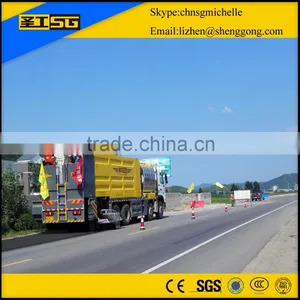

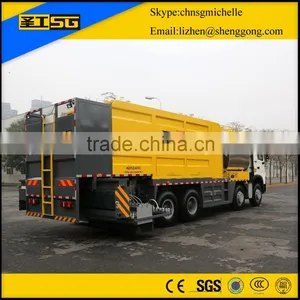

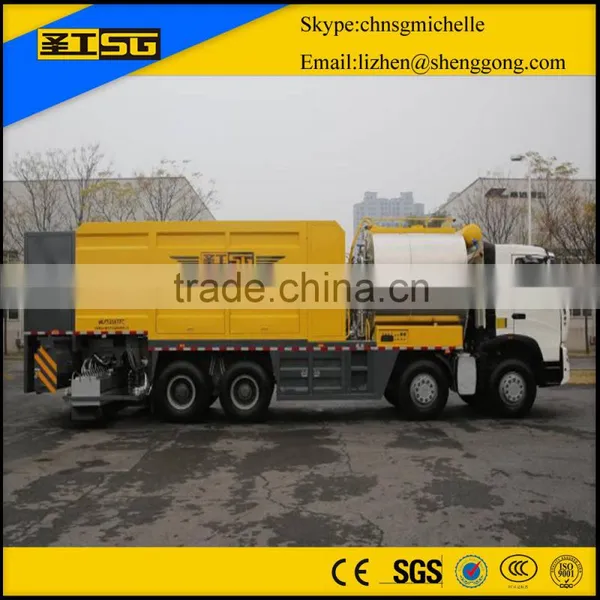

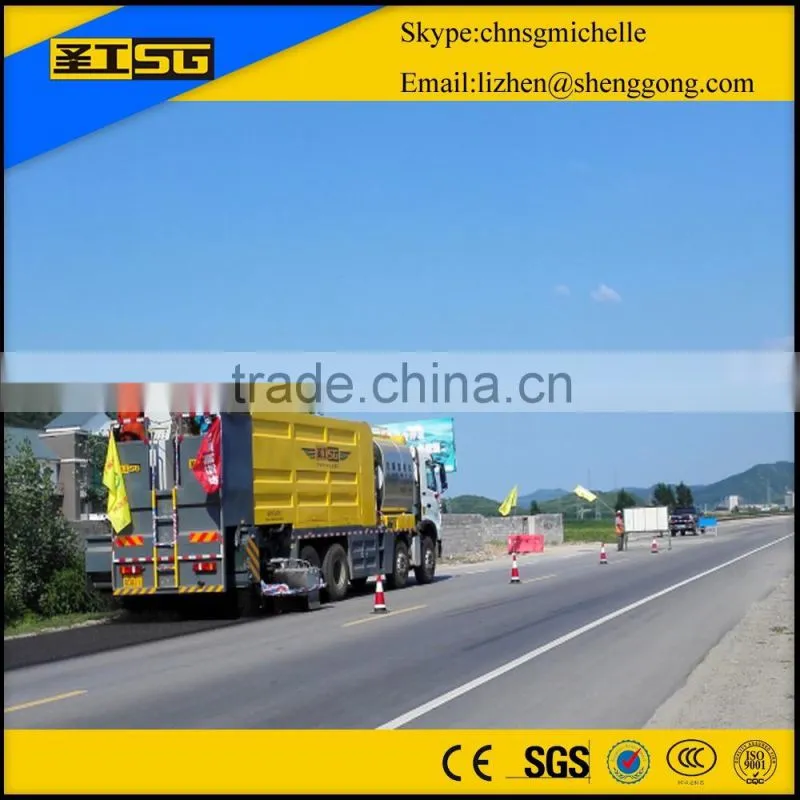

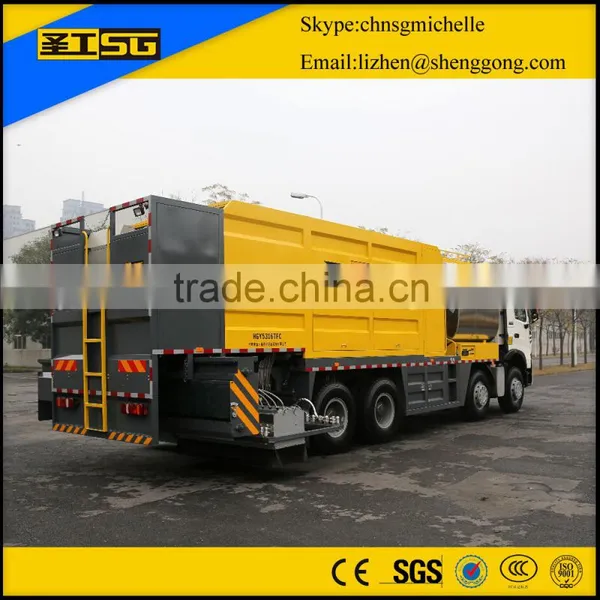

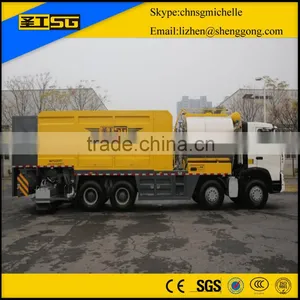

Qualified fiber chip sealer, Asphalt Chip Sealer
Application
Combined with the present highway conditions, HGY5316TFC fiber chip sealer is independently developed by our company based on our construction engineering experience and equipment manufacturing experience of many years.
This hitech equipment is able to combine the systems of asphalt binder spray, fiber spray and aggregates spreading into one entire process.
HGY5316TFC fiber chip sealer is a device specialized in realizing the largest viscosity of asphalt binder, fiber glass and aggregates through the fullest surface contact among them while spreading them synchronously.
Main Technical Parameters
Model |
HGY5316TFC |
Chassis model |
ZZ1317N366HD1 |
Power of auxiliary engine |
70kW |
Spray width |
3800mm |
Spray volume |
0.5-3.0kg/m2 |
Aggregates size |
3-25mm |
Asphalt tank capacity |
6m3 |
Aggregates hopper capacity |
12m3 |
Heater |
imported diesel heater |
Spray medium |
Base asphalt, modified asphalt, cutback asphalt, emulsion |
Length of fiber |
30/60/120mm |
Fiber-spray volume |
30-90g/m2 |
Overall dimensions |
L×W×H=11980×2500×3810mm |
Advantages
- Asphalt, fiber and aggregate could be applied synchronously in one machine.
- It can spread aggregate without lifting the hopper, which is convenient to the constructions in culverts, under bridges and at the curves.
- It is completely controlled by electrical system of high-level automation. The spreader’s expansion and spray bar width can be flexibly controlled automatically. It can accurately calculate the asphalt spray volume in construction.
- Double-screw charger conveys aggregates to the discharging unit of 3800mm wide, then aggregates fall down by roller friction and self gravity over distribution plate to keep uniform spreading effects.
- It reduces the work intensity of construction, saves labor power, decreases the construction costs and improves working efficiency and quality.
- The whole machine runs stably and makes uniform spray and spreading. It can flexibly regulate asphalt spray width, fiber spray width and aggregates spreading width.
- Sound and durable corrosion-resistant insulation layer keeps heat preservation index no more than 20oC/8h.
- It can spray various kinds of asphalt and spread aggregates of sizes from 3mm to 25mm.
- Spray bar is foldable, and it clearance to ground is able to be regulated; fiber spray unit is able to swing horizontally.
- Precisely processed nozzles ensure spray uniformity of each nozzle and the spray effects.
- Humanized operations of remote control and site operation provide great convenience to the operator.
- Perfect combination of electrical control and constant pressure device of hydraulic system makes spray start as soon as the truck starts.
As an experienced road maintenance machine manufacturer in China, we supply automatic
asphalt distributor, synchronous chip sealer, fiber chip sealer, asphalt emulsion plant,
intelligent asphalt rubber plant, intelligent micro surfacing paver (slurry paver), snow removal machines,
municipal road management equipment and more to customers all over the world.
Workshop
Products
Projects and Certificates
With the efforts of our excellent and unceasing technical R&D team, we obtain 108 national
patents and 12 TOP products of China, 3 TOP products of the world. Our machine also support
the outstanding projects like the most famous street of China Chang An Avenue major repair
forthe 60th anniversary of the founding of PRC, 2010 Shanghai World Expo Park, Motorway of Shanghai Pudong International Airport, airstrip of Shanghai Hongqiao International Airport,
Motorway of Guangzhou Baiyun International Airport for 2010 Asian Games, etc.
We obsess professional and experienced technical service personnel,provide the users with low-cost and high-quality products and rapid-response services after sales.
