Main used in pc200-6 hydraulic pump
Series 20 Axial Piston Pumps PV20/21/22/23/24
PV 21
Shaft : 21 teeth, Rotation: CW, Charge Pump:(12CC), 3000 PSL FLANGE PORT, Control: MDC
MF 21
Shaft: 21 teeth, 3000 PSL FLANGE PORT, Control: MDC
PV 22
Shaft: 21 teeth, Rotation: CW, Charge Pump:(12CC)3000 PSL FLANGE PORT
Control: MDC
MF 22
Shaft: 21 teeth, 3000 PSL FLANGE PORT, Control: MDC
PV 23
Shaft: 23 teeth, Rotation: CW, Charge Pump:(12CC), 3000 PSL FLANGE PORT
Control: MDC

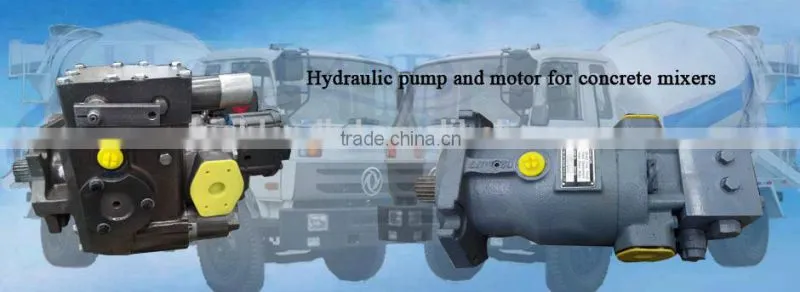

Hydraulic Piston Pump PV23 used in Concrete Mixer.
PV20/PV21/PV22/23
2.Application: Paver, Road Roller, Concrete Mixer Truck
Main Features
--Pass axis piston pump
--Hydrostatic Transmission
--Manual Servo and Hydraulic Variable control
Technical Parameters
Model |
Max. Displacement(ml/r) |
Torque at 10Mpa(N.m) |
Out power(at 10Mpa 1500r/min)(kw) |
Charge Pump Displacement(ml/r) |
Max. Speed(r/min) |
21 |
51.6 |
84.1 |
12.7 |
12.3 |
3000 |
22 |
69.8 |
114.2 |
17.2 |
||
23 |
89.0 |
144.3 |
21.9 |
2800 |
Components Weight Chart
|
Model |
Variable Pump |
Variable Displacement Motor |
Fixed Displacement Motor |
21 |
53.52 |
58.51 |
34.47 |
22 |
61.24 |
66.23 |
39.92 |
23 |
78.47 |
83.46 |
47.17 |
