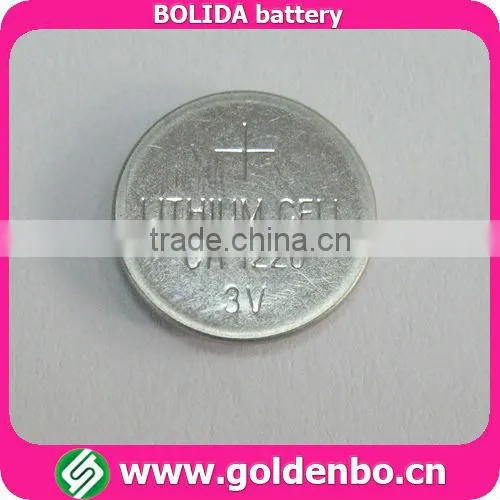

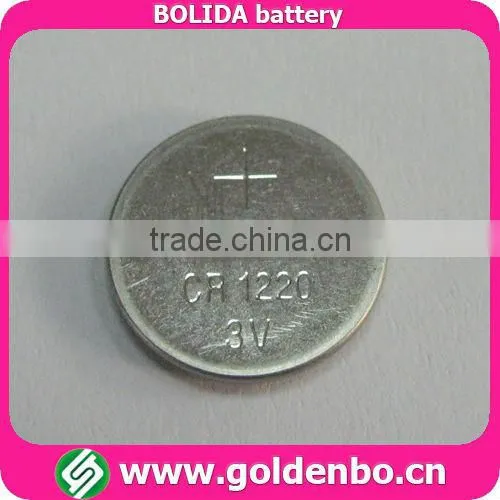

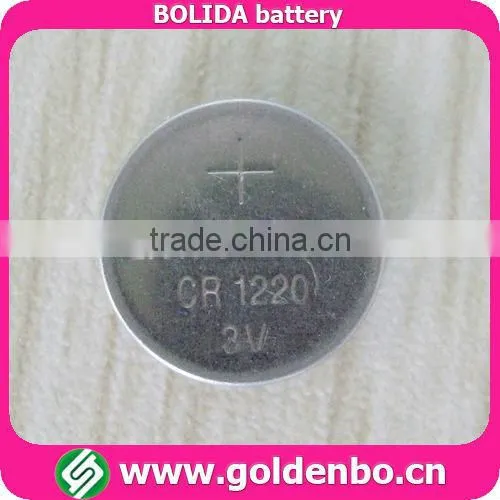

3.0V CR1220 Lithium Button Cell

Specifications

3.0V CR1220 Lithium Button Cell
1)With CE&ROHS,UN38.3 certificate;
2)3V,36mAh ;
3)Weight:0.8g .



3.0V CR1220 Lithium Button Cell



Item NO.: CR1220











voltage : 3.0V

Nominal capacity : 36mAh

Instantaneous short-circuit current: ≥100mA (Time≤0.5 second)

Off-load voltage : 3.2V

Storage temperature: 0-35°C

Standard weight: 0.8 g

Service output: Initial 60h

After 12 months storage 59h (Continuous discharge with load 4.7 kΩ,till 2.0v end-voltage at 20-25°C)
