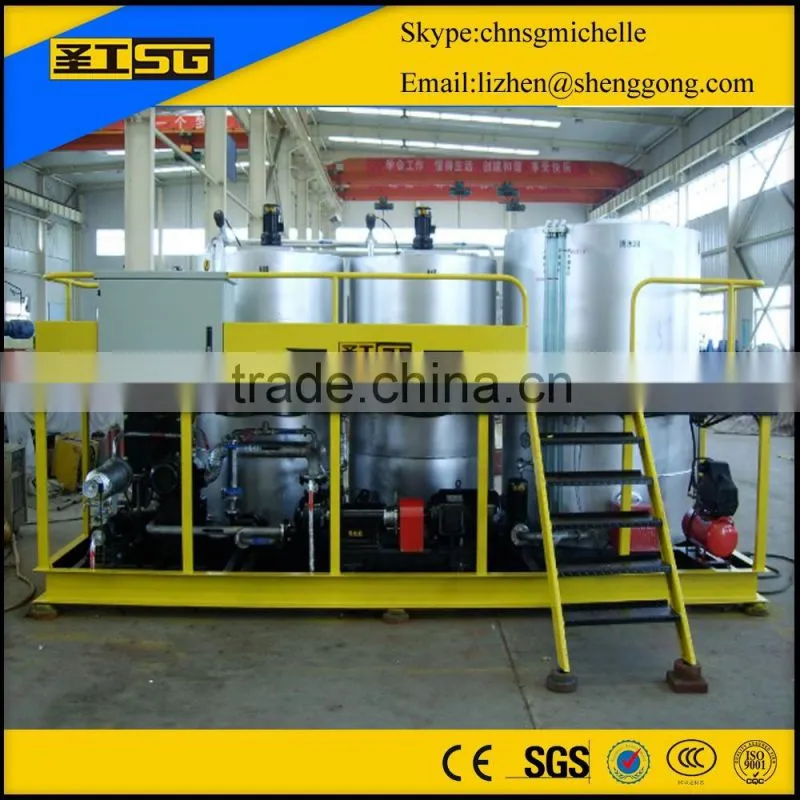

Top Bitumen Emulsion plant,Asphalt Emulsion Plant,6T
Application
GYRY06H asphalt emulsion plant is the new type of asphalt emulsion equipment developed by our company and has won national patent with patent No. ZL00226275.4. Emulsified asphalt of wide range of asphalt content and stable property produced by this equipment can meet various requirements of different construction technologies, which is applied into the express highway constructions and road maintenance projects.
Main Technical Parameters
Model: |
GYRY06H |
Max Capacitance: |
30kWh |
Rotation Speed of Emulsifier: |
2930rpm |
Power of Mill: |
15kW |
Thermal oil Heating Power: |
9kWh |
Power of Burner: |
1.0×105kcal/h |
Heat Transfer Area: |
15m2 |
Fineness of Emulsified Asphalt: |
<5μm |
Productivity: |
6t/h |
Weight: |
4.5t |
Overall Dimensions: |
4700×2150×2330mm (L×W×H) |
Advantages
- This equipment is settled on a foundation which is convenient for moving to another constructions site and working in the field. Its dimensions are designed according to the standard export container for the convenience of transportation and cutting the freight.
- High efficiency heat exchanger is equipped to cool the finished emulsified asphalt to improve the stability of emulsified asphalt storage; then to heat the cooling water for producing emulsified asphalt,which saves clear water heating expense to reduce production cost and make the process environment friendly and energy saving.
- Two soap tanks are equipped to mix the materials and drain water in turn for continuous production. Compressed air drives fluid flow which is governed by pneumatic valve. This design saves human labor and reduces labor intensity.
- The key part of this plant emulsor (i.e. colloid mill) is independently developed by our company. Its special structure of pilot rotors clearance is likely to keep tiny fixed clearance. It is made of special stainless steel with properties of wear resistance and corrosion resistance. Its emulsion fineness is less than 5μm.
- Frequency governing motor is used to control the rotation speed of asphalt pump. Emulsion flow rate is regulated by valve(displayed by the flow meter). By the above means, asphalt content in emulsified asphalt (ratio of asphalt to water) can be accurately and stably controlled. In-line sampling valve of exclusive design could monitor the emulsified asphalt quality.
- Thermal oil heating system is equipped to warm all the pumps before production, which is easy and convenient to replace baking with blowtorch.
- This equipment is equipped with a water tank. Burner and heating device could heat the clear water and control the temperature in real time, which is convenient and fast.
- All the parts contacting the emulsion are made of qualified stainless steel with good anti-corrosion property to suit for production process of various kinds of emulsified asphalt.
As an experienced road maintenance machine manufacturer in China, we supply automatic
asphalt distributor, synchronous chip sealer, fiber chip sealer, asphalt emulsion plant,
intelligent asphalt rubber plant, intelligent micro surfacing paver (slurry paver), snow removal machines,
municipal road management equipment and more to customers all over the world.
With the efforts of our excellent and unceasing technical R&D team, we obtain 108 national
patents and 12 TOP products of China, 3 TOP products of the world. Our machine also support
the outstanding projects like the most famous street of China Chang An Avenue major repair
forthe 60th anniversary of the founding of PRC, 2010 Shanghai World Expo Park, Motorway of Shanghai Pudong International Airport, airstrip of Shanghai Hongqiao International Airport,
Motorway of Guangzhou Baiyun International Airport for 2010 Asian Games, etc.
Workshop
Certifications
We obsess professional and experienced technical service personnel,provide the users with low-cost and high-quality products and rapid-response services after sales.
