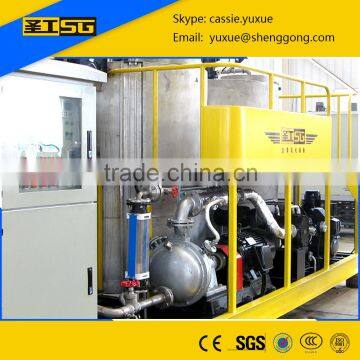

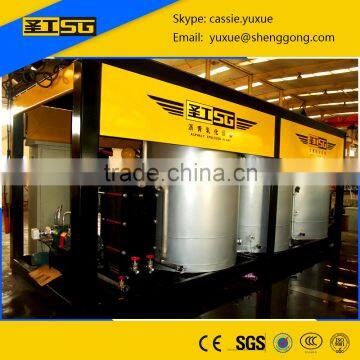

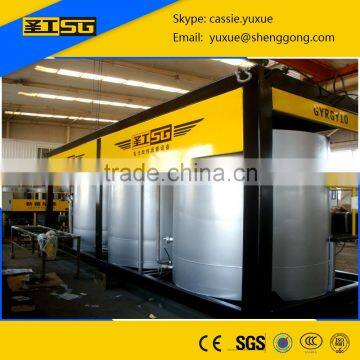

GYRY10B Asphalt Emulsion Plant
1.Main Technical Parameters Of GYRY10B
Model: |
GYRY10B |
Max Capacitance: |
60kWh |
Power of Mill: |
30kW/22kW |
Rotation Speed of Mill: |
2930rpm |
Thermal oil Electrical Heating Power: |
9kWh |
Power of Burner: |
2.0×105kcal/h |
Heat Transfer Area: |
27m2 |
Fineness of Emulsified Asphalt: |
<5μm |
Productivity: |
10-12t/h |
Weight: |
6t |
Dimension: |
6500×2300×2700mm (L×W×H) |
2.Main Configurations
No. |
Name |
Brand/Origion |
Quantity |
Remarks |
1 |
Colloid Mill |
China |
1 |
|
2 |
Asphalt Pump |
POTOU, China |
1 |
|
3 |
Water Pump |
China |
1 |
|
4 |
Emulsion Pump Stirrer |
China |
2 |
|
5 |
Air Compressor |
China |
1 |
|
6 |
Emulsion Tank |
SG, China |
1 |
|
7 |
electrical heating tank |
SG, China |
1 |
|
8 |
Heat Exchanger |
China |
1 |
|
9 |
Burner |
RIELLO, Italy |
1 |
|
10 |
Frequency Convertor |
ABB, UK |
1 |
|
11 |
Electric Component |
Schneider, France |
1 |
|
3.Structural Characteristics
- This equipment applies automatic control system to monitor and regulate asphalt content in emulsified asphalt automatically. Two soap tanks are equipped to mix the materials and drain water in turn for continuous production. Flow rate is governed by electrical regulating valve, which saves human labor and reduces labor intensity.
- The key part of this plant - colloid mill is independently developed by our company. Its special structure of pilot rotors clearance is likely to keep tiny fixed clearance. It is made of special stainless steel with properties of wear resistance and corrosion resistance. Its emulsion fineness is less than 5μm.
- High efficiency plate heat exchanger is firstly equipped to cool the finished emulsified asphalt to improve the stability of emulsified asphalt storage; then to heat the cooling water for producing emulsified asphalt, which saves clear water heating expense to reduce production cost and makes the process environment friendly and energy saving, also makes successive micro-surfacing construction with emulsified asphalt possible (only emulsified asphalt of temperature lower than 40oC is acceptable in micro-surfacing construction.)
- PLC system controls production; electromagnetic flow meter collects signals; frequency governing motor controls the rotation speed of asphalt pump; electrical regulating valve or gate valve governs the emulsion flow rate (displayed by both electromagnetic flow meter and scale flow meter). By the above means, asphalt content in emulsified asphalt (ratio of asphalt to water) can be accurately and stably controlled.
- Independent and automatic thermal oil heating system is equipped to warm all the pumps before production, which is easy and convenient to replace baking with blowtorch.
- This plant is equipped with water boiler, no need of external thermal oil heating source. Efficient and pressure-constant boiler can monitor and control the temperature instantly, quickly provide hot water for production.
- All the parts contacting the emulsion are made of qualified stainless steel with good anti-corrosion property to suit for production process of various kinds of emulsified asphalt.

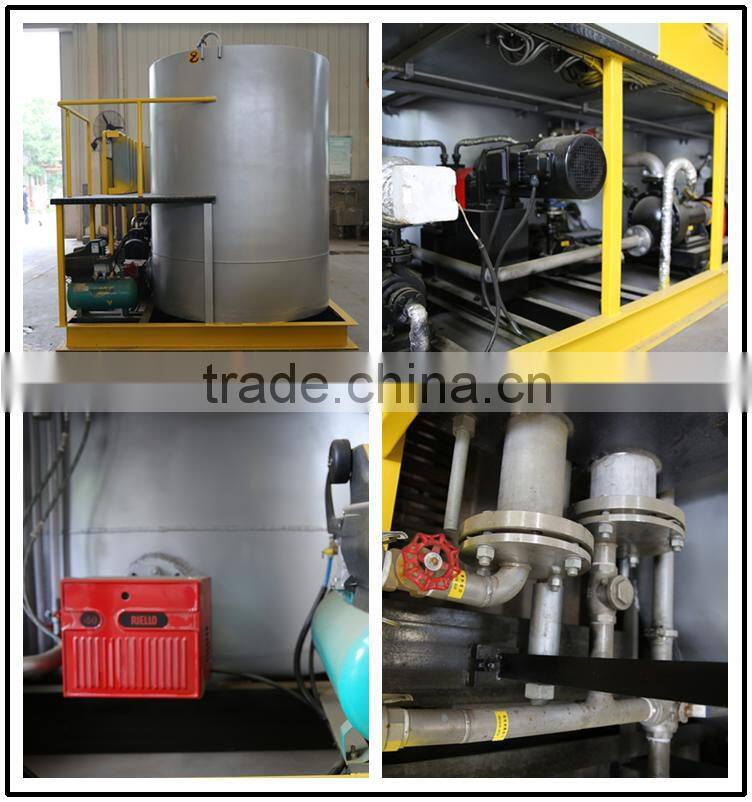

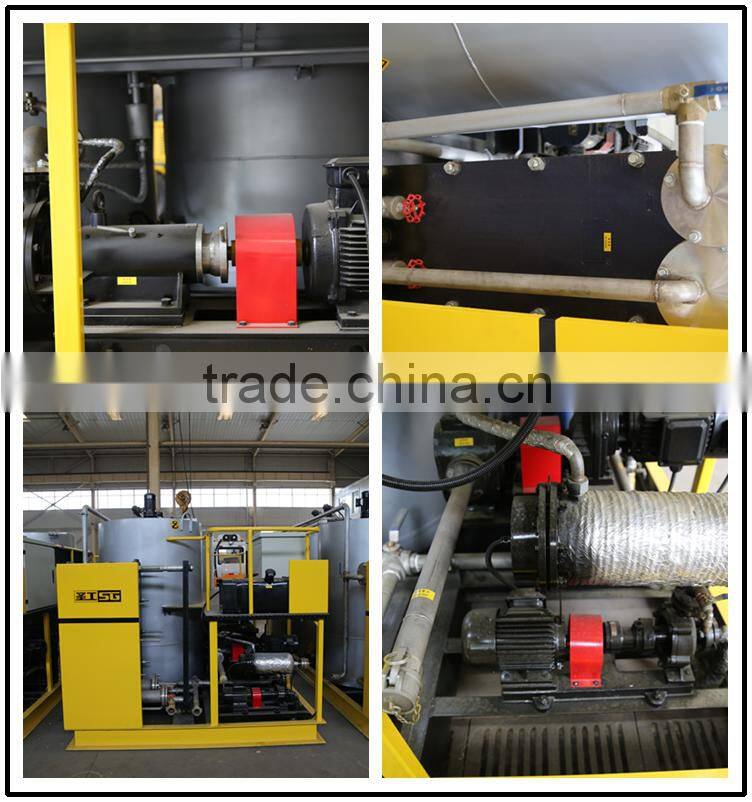

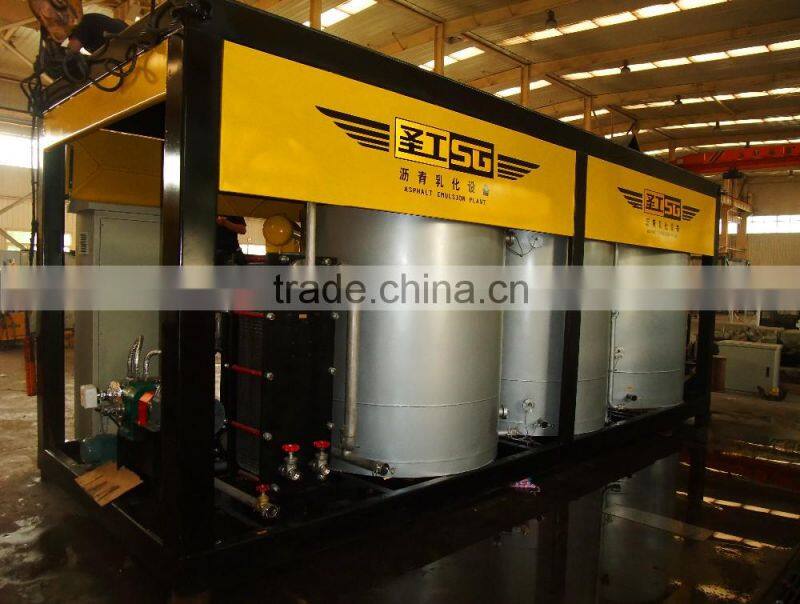

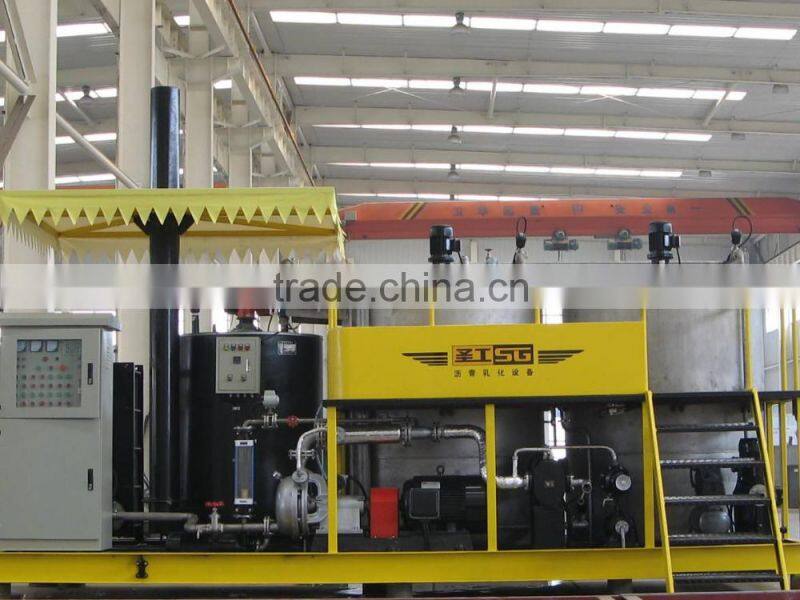

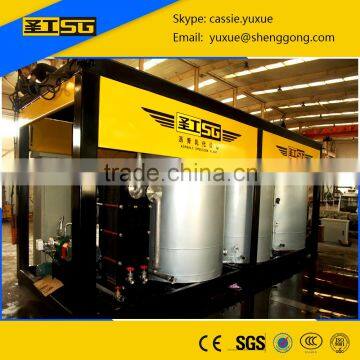

4.Product Details
24hours service, welcome your inquiry and business visiting !
Professional and experienced technical service after sales !
Skype: cassie.yuxue
Henan Gaoyuan Road Maintenance Equipment Co., Ltd. was founded in 2004, and now is the TOP 3 companies in road maintenance equipment manufacturing industry of China.
We supply automatic asphalt distributor, synchronous chip sealer, fiber chip sealer, asphalt emulsion plant, intelligent asphalt rubber plant, intelligent micro surfacing paver (slurry paver), snow removal machines, municipal road management equipment and more to customers all over the world.

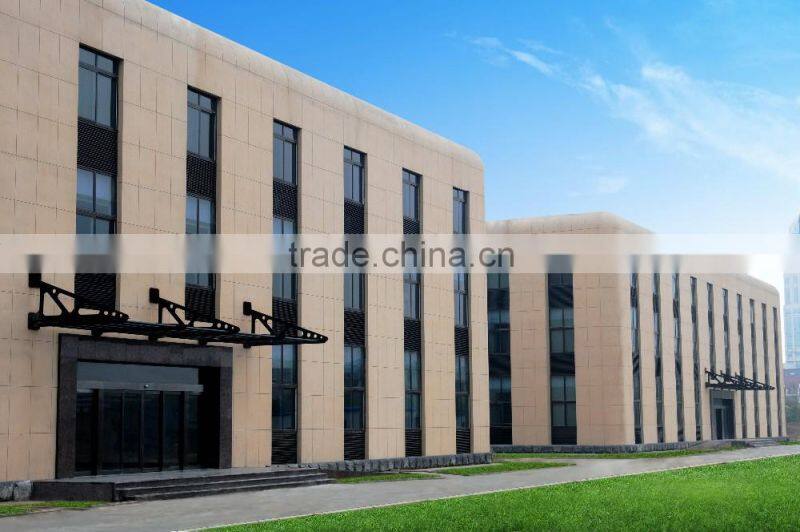

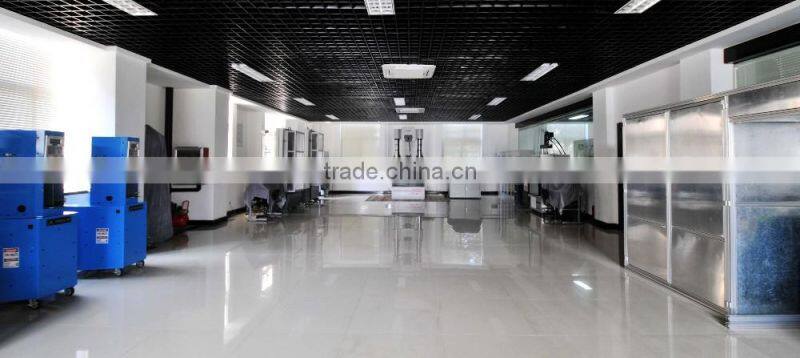

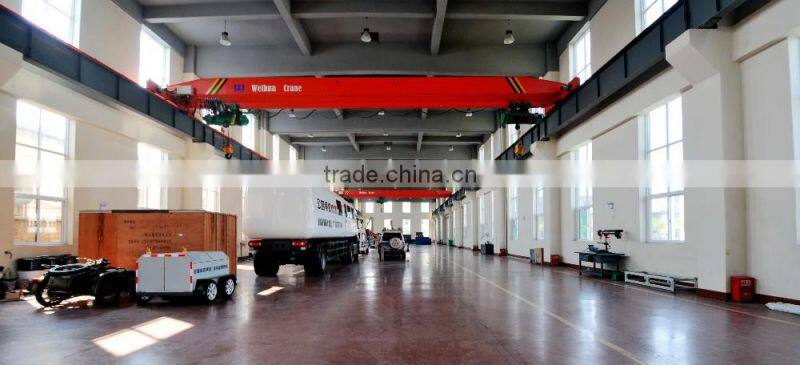

National High-way Maintenance Equipment Engineering Lab
In September 2012, the national development and reform commission approved the projectof National High-way Maintenance Equipment Engineering Lab. Two Lab buildings, a pilot workshop, the machine performance test site were built.By purchasing test equipment, test platform, multi-function integrated tester, It improved laboratory hardware advantage, strengthened personnel training and technology exchange, solved the technical bottleneck existed in road maintenance equipment.
Certification
Q1: What are the terms of payment.
A:Generally, L/C orT/T are used. that is 30% prepayent and 70% before shipping.
Q2: What about the warranty.
A;It would be for 12 months.
